Rutab
Distribution block

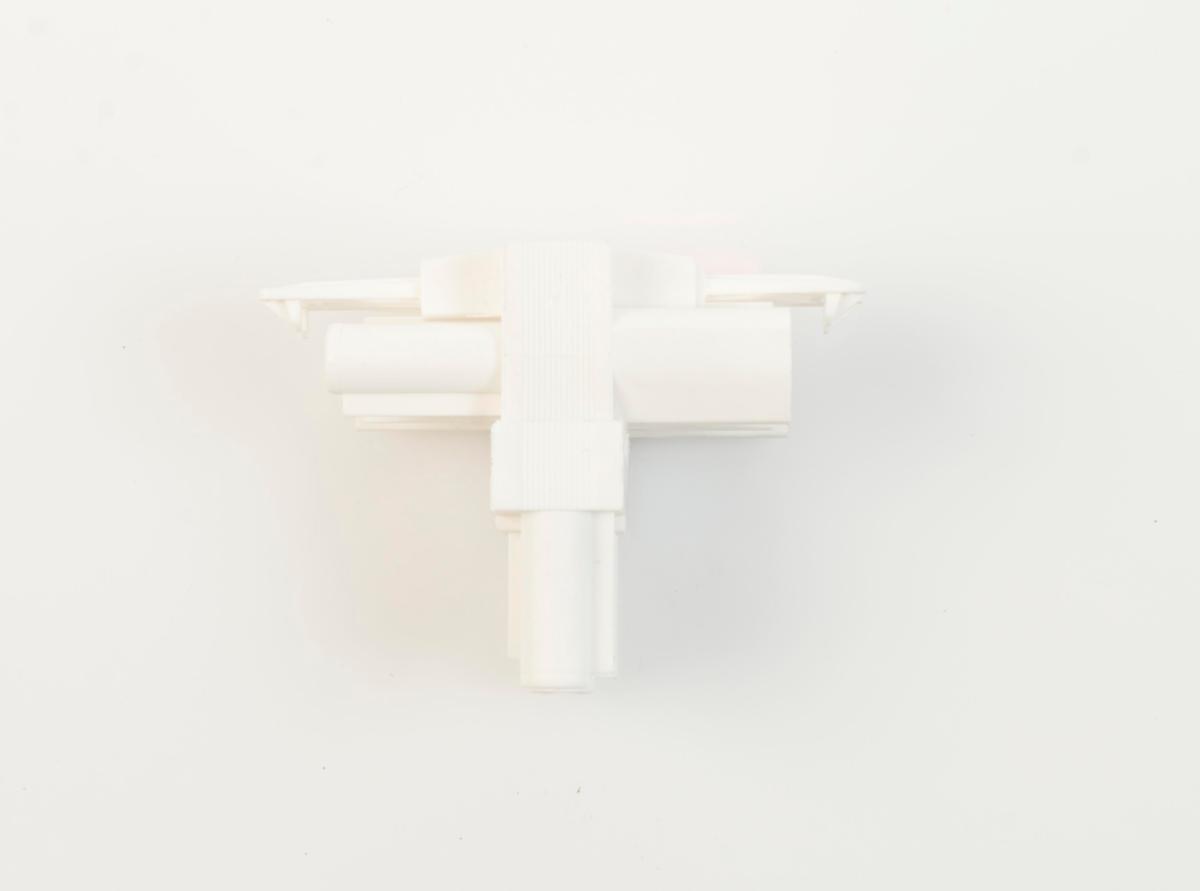

DISTRIBUTOR 3P 1IN/2OUT WHITE 167153
Article number:
1278064
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shc-.jpg)
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
Rutab's quick-connect system makes power and lighting installation quick, easy and error-free. With quick coupling, the installation time is reduced by up to 70% compared to conventional installation. This results in a total cost saving of up to 30%. In addition to cost savings, this also provides a more ergonomic working environment for the installer and a safer installation with the mechanical coding. The products are perfect for procurement of larger construction projects with power and lighting control for, for example, offices, commercial properties, schools and hospitals. The quick coupling system meets 130 international approvals such as VDE, ENEC, UL, KEMA and more. It also complies with IEC/EN 61 535, RoHS, WEEE, PFOS, REACH and CE standards. The system consists of cable connectors, chassis connectors, junction blocks and fully connected cabling in lengths of 1-10 meters (other lengths on request) and accessories. The possibility exists for customized boxes for different room solutions with control
- Article number: 1278064
- Ean no: 4028012102860
- Material class QJ0230
Technical data
- Packagin Size: 1 ST/100 ST
- Type of distributor: T-distributor
- Number of inputs: 1
- Number of poles: 3
- Number of outputs: 2
- Colour of the separate adapter piece: Without adapter piece
- Colour coding/contact insert: White
- Phase pickup: L1
- Pole codification: L, N, PE
- Rated voltage: 250 V
- Rated current: 20 A
- Rated surge voltage: 4 kV
- Max. continuous temperature resistance contact part: 70 °C
- Mounting possibility: With separate adapter
- Rated current to luminaire: 20 A
- Type of integrated switching: None
- Halogen free: Yes
- Width: 28 mm
- Height: 42.8 mm
- Length: 44.6 mm
- Housing material: Polyamide (PA)
- Contact material: CuZn
- Fire load: 0.13 kWh
- Mechanical coding: Yes
- Pollution degree: 3
- Degree of protection (IP): IP20
- Surface treatment contacts: Tinned
- Type of locking: Integrated in plug-in connector
- Max. continuous temperature resistance strain relief: 70 °C
- REACH contains candidate substances: Bly
- REACH Date: 2021-06-29
- REACH Information obligation: Yes
