Wieland
T-Distribution block GST18i5 1in2out blue
T-connector GST18i5 blue GST18I5VK2P1TB V PB02
Article number: Suppl. article no:
1273344
92.050.3453.0
to see price and stock
To shop with us, you need a registered company and a customer number.

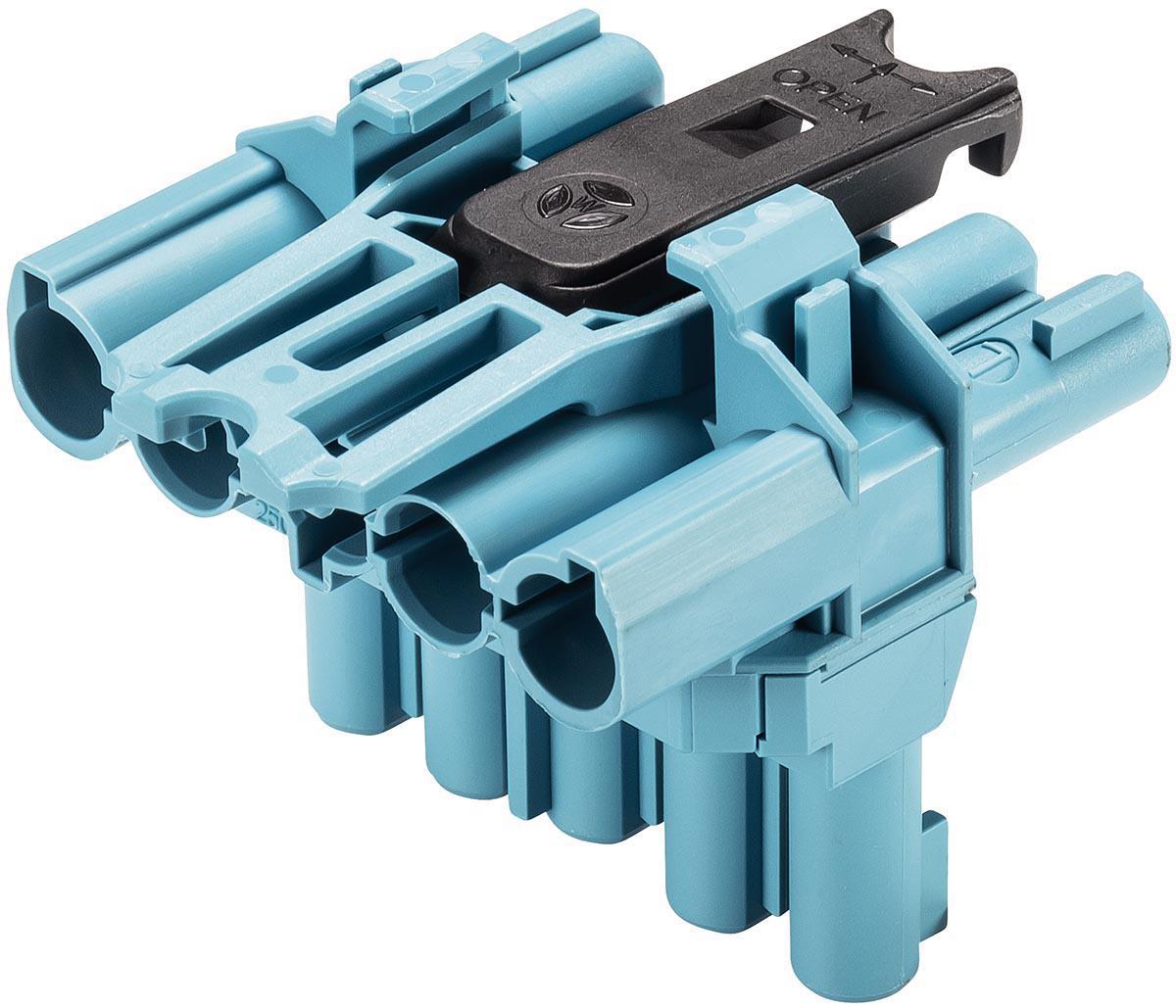

T-Distribution block GST18i5 1in2out blue, for mounting plate
- Article number: 1273344
- Suppl. article no: 92.050.3453.0
- Ean no: 4049088315947
- Material class QJ029B
Technical data
- Packagin Size: 1 PCS/100 PCS
- Product series: GST
- Type of distributor: T-distributor
- Number of inputs: 1
- Number of poles: 5
- Number of outputs: 2
- Colour of the separate adapter piece: Without adapter piece
- Colour coding/contact insert: Blue
- Pole codification: L, N, PE, D1, D2
- Rated voltage: 250 V
- Rated current: 20 A
- Rated surge voltage: 4 kV
- Max. continuous temperature resistance contact part: 100 °C
- Continuity resistance: 1 mOhm
- Halogen free: Yes
- Width: 47.7 mm
- Height: 43 mm
- Length: 44 mm
- Housing material: Polyamide (PA)
- Contact material: CuZn
- Fire load: 0.142 kWh
- Mechanical coding: Yes
- Pollution degree: 2
- Degree of protection (IP): IP20
- Surface treatment contacts: Tinned
- Type of locking: Integrated in plug-in connector
- REACH contains candidate substances: Bly
- REACH Date: 2022-05-31
- REACH Information obligation: Yes
