Wago
Connector Dali Wago

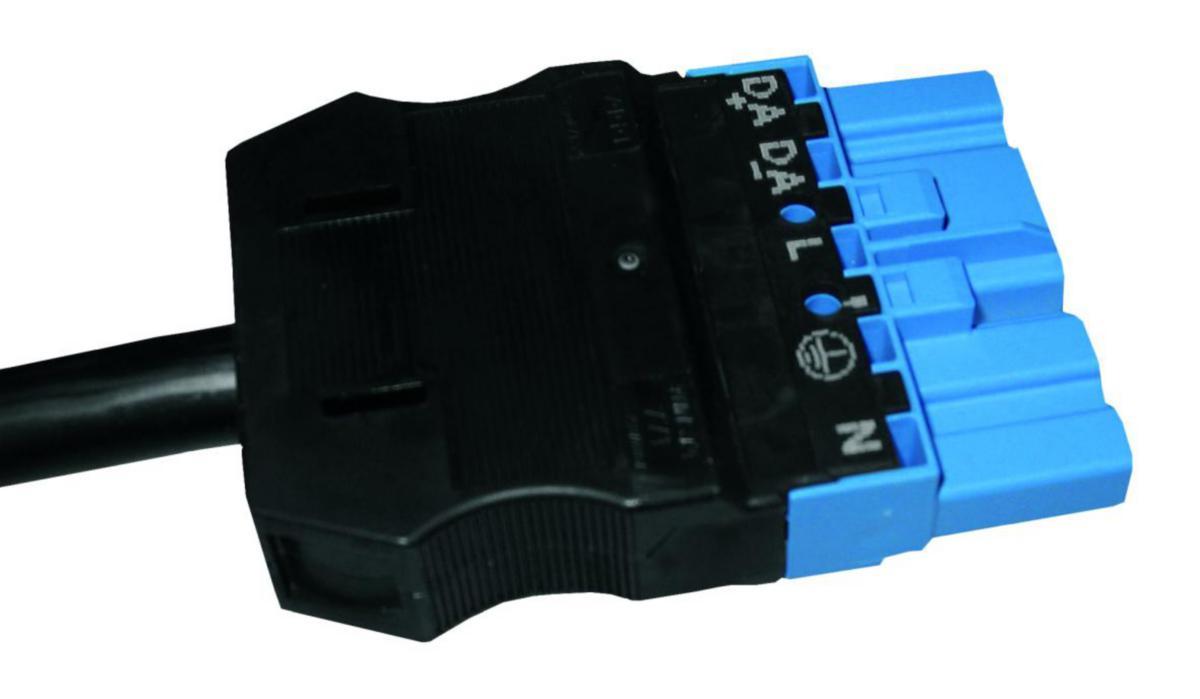

PLUG W STRAIN RELIEF HOUSING 770-1115/022-000
Article number: Suppl. article no:
1274970
770-1115/022-000
to see price and stock
5-pin Dalidon with strain relief, All connectors for fixed installations (snap versions for lighting arm, devices or all types of PCBs and distribution cabinets) have at the factory been equipped with locking levers to ensure that connectors and sockets are properly locked. All WINSTA® components have 100% protection against incorrect connection when it comes to: a.) Insertion of different numbers of poles.) Insertion at 180 ° rotation c.) Insertion when displaced laterally d.) Insertion of a pole.
- Article number: 1274970
- Suppl. article no: 770-1115/022-000
- Ean no: 4050821223009
- Material class QJ020B
Technical data
- Packagin Size: 1 ST/25 ST
- Model: Plug
- Number of poles: 5
- With strain relief: Yes
- Colour coding/contact insert: Blue
- Type of locking: Separate
- Connection type: Spring clamp connection
- Pole codification: L, N, PE, -, +
- Mechanical coding: Yes
- Rated voltage: 400 V
- Rated current: 25 A
- Halogen free: No
- Connection cross section (fine-strand): 0.5-4 mm²
- Connection cross section (solid-core): 0.5-4 mm²
- Number of connections per pole: 2
- Width: 54.6 mm
- Height: 17 mm
- Length: 54.6 mm
- Continuity resistance: 3 mOhm
- Housing material: Polyamide (PA)
- Contact material: Other
- Max. continuous temperature resistance strain relief: 105 °C
- Max. continuous temperature resistance contact part: 85 °C
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Degree of protection (IP): IP20
- Surface treatment contacts: Other
- REACH Date: 2023-02-10
- REACH Information obligation: No
