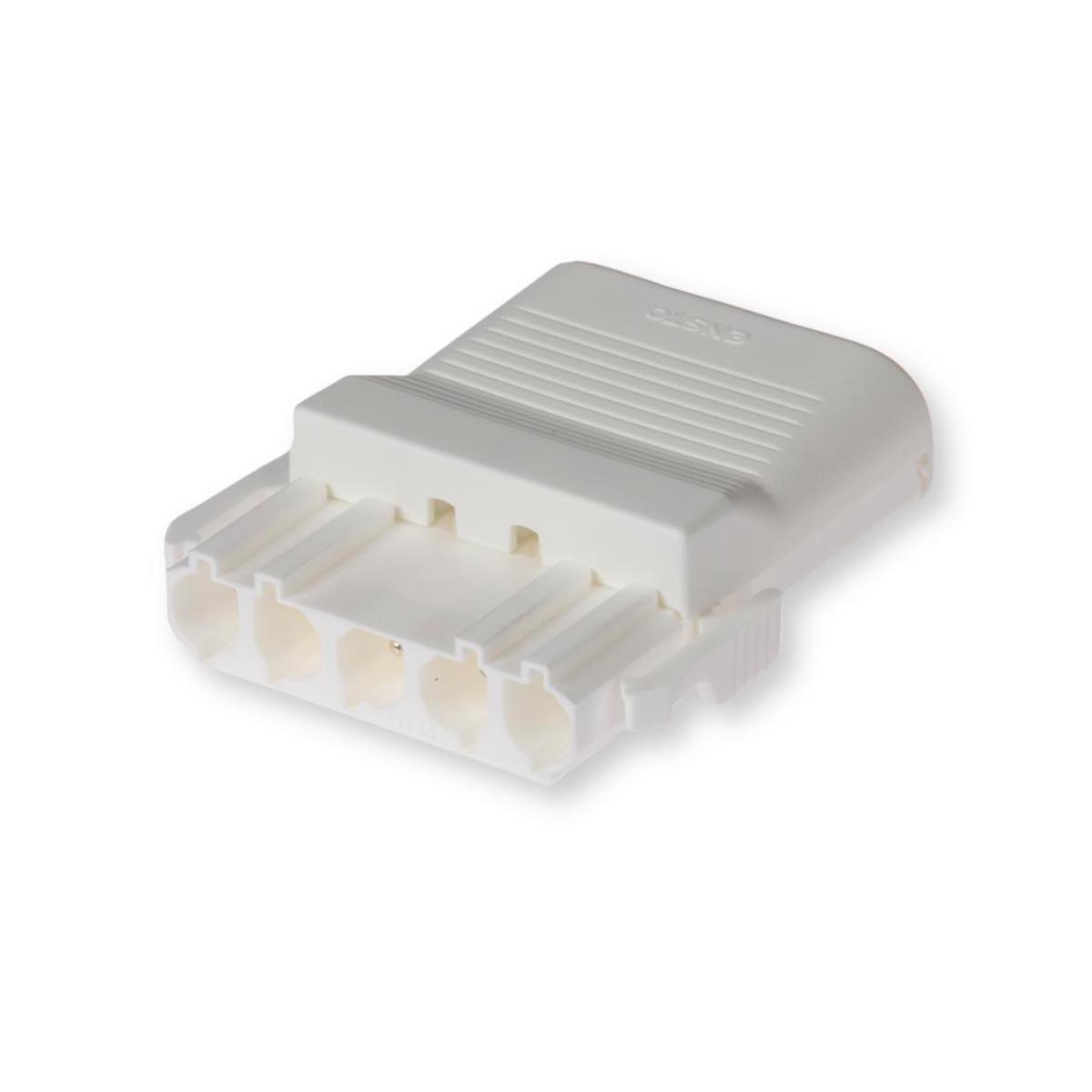

5-pole pin plug with tension relief, Ensto
CONNECTORS 5P WHITE MALE 5ST NAC51S.WX2
Article number: Suppl. article no:
1270288
NAC51S.WX2
to see price and stock
To shop with us, you need a registered company and a customer number.
5-pin Single-tone plug for single, single and multi-wire conductors 0.75-4.0 mm². Strain relief for cables with outer diameter 6.5-14.5 mm. Items ending in X2 are packed in bags of 5 pcs / bag
- Article number: 1270288
- Suppl. article no: NAC51S.WX2
- Ean no: 6418677706387
- Material class QJ0210
Technical data
- Packagin Size: 1 FRP/20 FRP/900 FRP
- Type: NAC 51S.WX2
- Product series: EnstoNet
- Number of poles: 5
- Cable diameter: 6.5-14.5 mm
- With strain relief: Yes
- Colour coding/contact insert: White
- Connection type: Screw connection
- Pole codification: 3, N, PE, 2, 1
- Mechanical coding: Yes
- Rated voltage: 400 V
- Rated current: 20 A
- Halogen free: Yes
- Connection cross section (fine-strand): 0.75-4 mm²
- Connection cross section (solid-core): 0.75-4 mm²
- Number of connections per pole: 1
- Width: 59 mm
- Height: 20 mm
- Length: 61 mm
- Housing material: Polyamide (PA)
- Contact material: CuZn
- Max. continuous temperature resistance strain relief: 70 °C
- Max. continuous temperature resistance contact part: 70 °C
- Rated surge voltage: 4 kV
- Pollution degree: 2
- Degree of protection (IP): IP20
- Surface treatment contacts: Silver-plated
- REACH contains candidate substances: Bly
- REACH Date: 2022-06-22
- REACH Information obligation: Yes
