Rutab

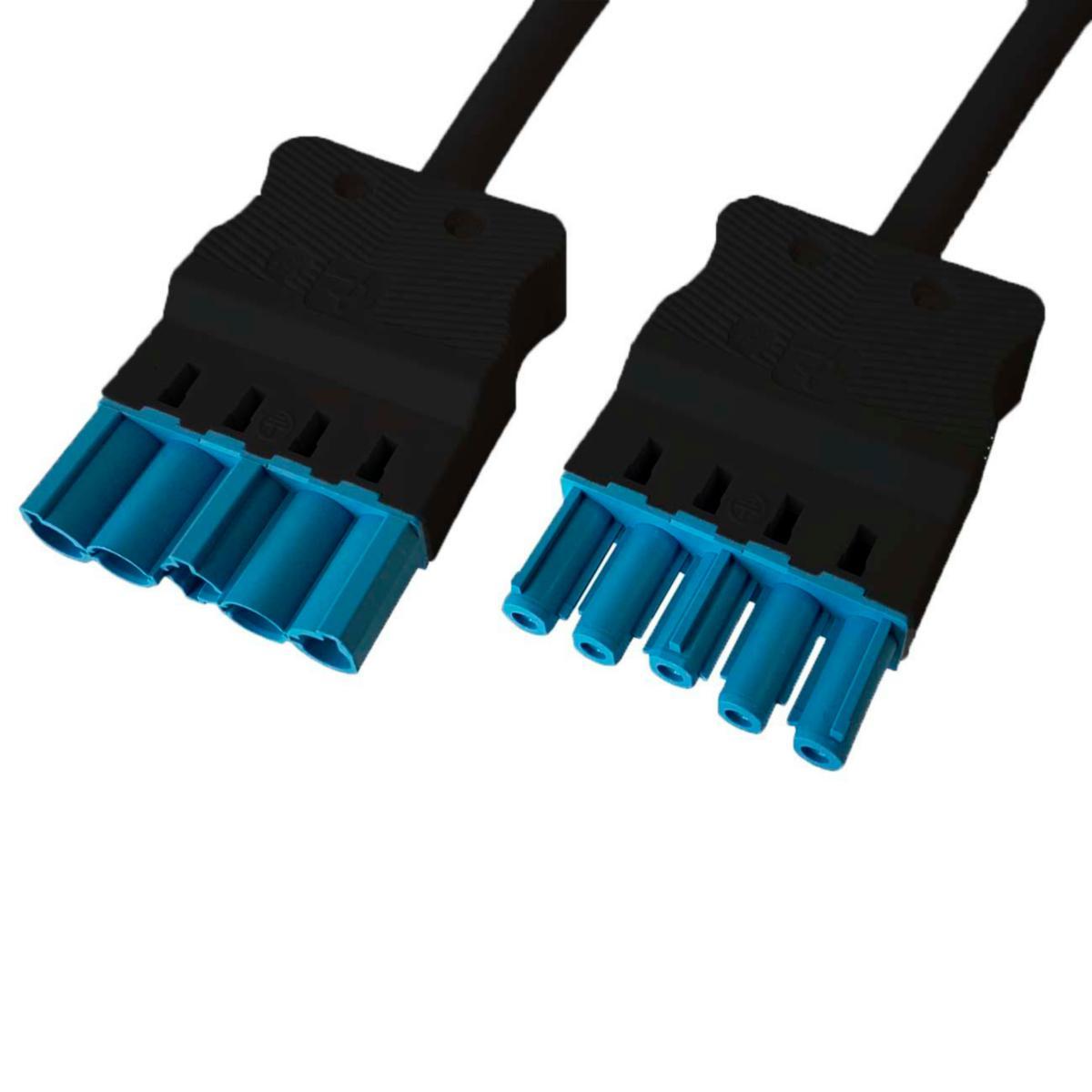

Cable 5p 1.5mm² female-male Dali
Cab 5p 1,5mm²2m fe-ma HF DALI
Article number: Suppl. article no:
1279098
1279098
to see price and stock


Rutab's quick-connect system makes power and lighting installation quick, easy and error-free. With quick coupling, the installation time is reduced by up to 70% compared to conventional installation. This results in a total cost saving of up to 30%. In addition to cost savings, this also provides a more ergonomic working environment for the installer and a safer installation with the mechanical coding. The products are perfect for procurement of larger construction projects with power and lighting control for, for example, offices, commercial properties, schools and hospitals. The quick coupling system meets 130 international approvals such as VDE, ENEC, UL, KEMA and more. It also complies with IEC/EN 61 535, RoHS, WEEE, PFOS, REACH and CE standards. The system consists of cable connectors, chassis connectors, branch blocks and fully connected cabling in several different lengths and accessories for this. The possibility exists for customized boxes for different room solutions with control.
- Article number: 1279098
- Suppl. article no: 1279098
- Ean no: 4028012121052
- Material class QJ0230
Technical data
- Packagin Size: 1 PCS/20 PCS
- Number of poles: 5
- Nominal cross section conductor: 1.5 mm²
- Total length: 2000 mm
- Type side 1: Bus
- Type side 2: Plug
- Colour outer sheath: Black
- Colour coding/contact insert: Blue
- Housing colour: Black
- Halogen free: Yes
- Pole codification: L, N, PE, -, +
- Cable type: H05Z1Z1-F
- Type of finished cable: Connecting cable
- Mechanical coding: Yes
- Rated voltage: 250 V
- Rated current: 16 A
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire load: 3.83 kWh
- Insulating piece permanent temperature-resistant: 100 °C
- Cable permanent temperature-resistant to: 70 °C
- Pollution degree: 2
- Rated surge voltage: 4 kV
- Max. operating temperature at conductor: 70 °C
- Degree of protection (IP): IP20
- Type of locking: Separate
- Surface coating contacts: Tinned
- Cable diameter: 9.3-10.3 mm
- REACH Date: 2023-10-02
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
