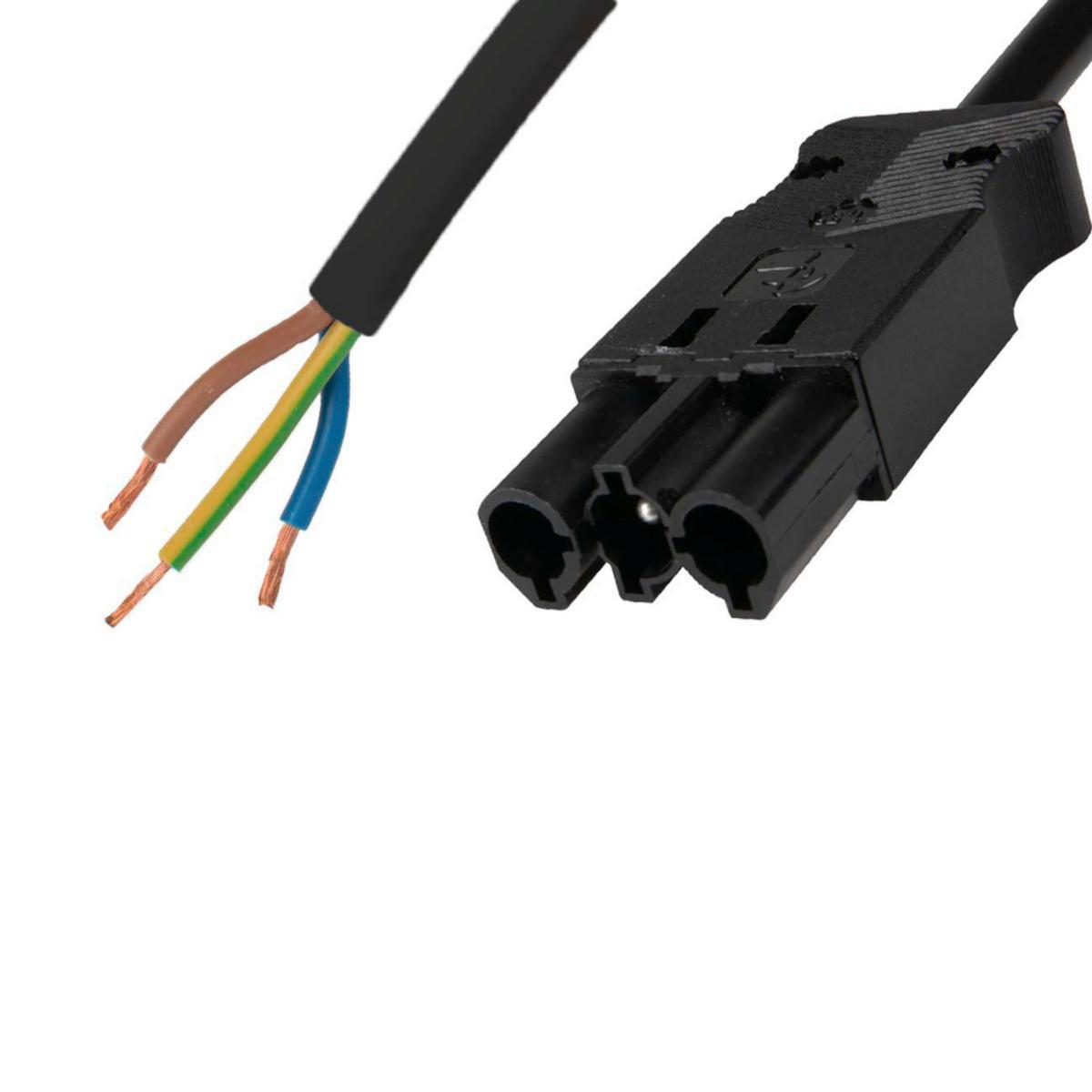

Connection cable 3-pole 1.5mm² male-free DCA, black
Cable 3p 1,5mm²2m ma-free HF b
Article number: Suppl. article no:
1278160
128343
to see price and stock
Rutab's quick-connect system makes power and lighting installation fast, easy and error-free. With quick-connect, installation time is reduced by up to 70% compared to conventional installation. This results in a total cost saving of up to 30%. In addition to cost savings, this also provides a more ergonomic working environment for the installer and a safer installation due to the mechanical coding. The products are perfect for procurement of larger construction projects with power and lighting control for offices, commercial properties, schools and hospitals, for example. The quick-connect system meets 130 international approvals such as VDE, ENEC, UL, KEMA and more. It also meets the standards IEC/EN 61 535, RoHS, WEEE, PFOS, REACH and CE. The system consists of cable connectors, chassis connectors, branch blocks and pre-connected wiring in lengths of 1-10 meters (other lengths on request) as well as accessories. There is the option of custom-made boxes for different room solutions with control.
- Article number: 1278160
- Suppl. article no: 128343
- Ean no: 4028012114092
- Material class QJ0230
Technical data
- Packagin Size: 1 PCS/50 PCS
- Number of poles: 3
- Nominal cross section conductor: 1.5 mm²
- Total length: 2000 mm
- Type side 1: Plug
- Type side 2: Free conductor end
- Colour outer sheath: Black
- Colour coding/contact insert: Black
- Housing colour: Black
- Halogen free: Yes
- Pole codification: L, N, PE
- Cable type: H05Z1Z1-F
- Type of finished cable: Device connection cable
- Mechanical coding: Yes
- Strip length: 9 mm
- Dismantle length: 32 mm
- Rated voltage: 250 V
- Rated current: 16 A
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Conductor end treatment: Ultrasonic compressed wire ends
- Fire load: 0.89 kWh
- Insulating piece permanent temperature-resistant: 100 °C
- Cable permanent temperature-resistant to: 70 °C
- Pollution degree: 2
- Rated surge voltage: 4 kV
- Max. operating temperature at conductor: 70 °C
- Degree of protection (IP): IP20
- Type of locking: Separate
- Surface coating contacts: Tinned
- Cable diameter: 7.5-8.5 mm
- REACH Date: 2023-10-02
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
