Defem

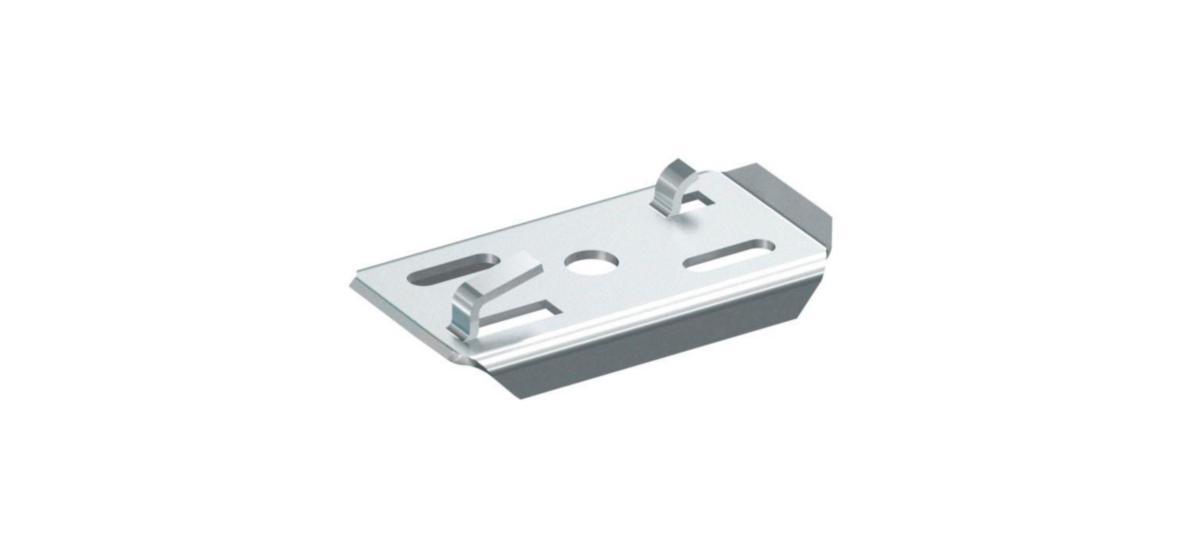

Support yoke B39
B39/120-220 E-GALV
Article number: Suppl. article no:
1149117
1149117
to see price and stock
To shop with us, you need a registered company and a customer number.
Surface treatment
Zinc-plated, FZB: for normal indoor environments
Hot-dip galvanised, FZV: for high humidity
Stainless/acid-resistant (AISI 316L), RF - for aggressive environments
Support yoke for central suspension of the ladder with threaded rod. Locked with 2 flange nuts (not included).
Zinc-plated, FZB: for normal indoor environments
Hot-dip galvanised, FZV: for high humidity
Stainless/acid-resistant (AISI 316L), RF - for aggressive environments
Support yoke for central suspension of the ladder with threaded rod. Locked with 2 flange nuts (not included).
- Article number: 1149117
- Suppl. article no: 1149117
- Ean no: 7332227011174
- Material class QC350A
Technical data
- Packagin Size: 1 ST/6 ST
- Type: B39/120-220
- Corrosiveness class: C1
- Model: Clamping console
- Suitable for cable support system width: 120-220 mm
- Material: Steel
- Material quality: Other
- Surface protection: Galvanic/electrolytic zinc plated
- Width: 49 mm
- Length: 95 mm
- Height: 25 mm
- Suitable for circuit integrity: No
- REACH Date: 2021-03-08
- REACH Information obligation: No
