Roof wire tray

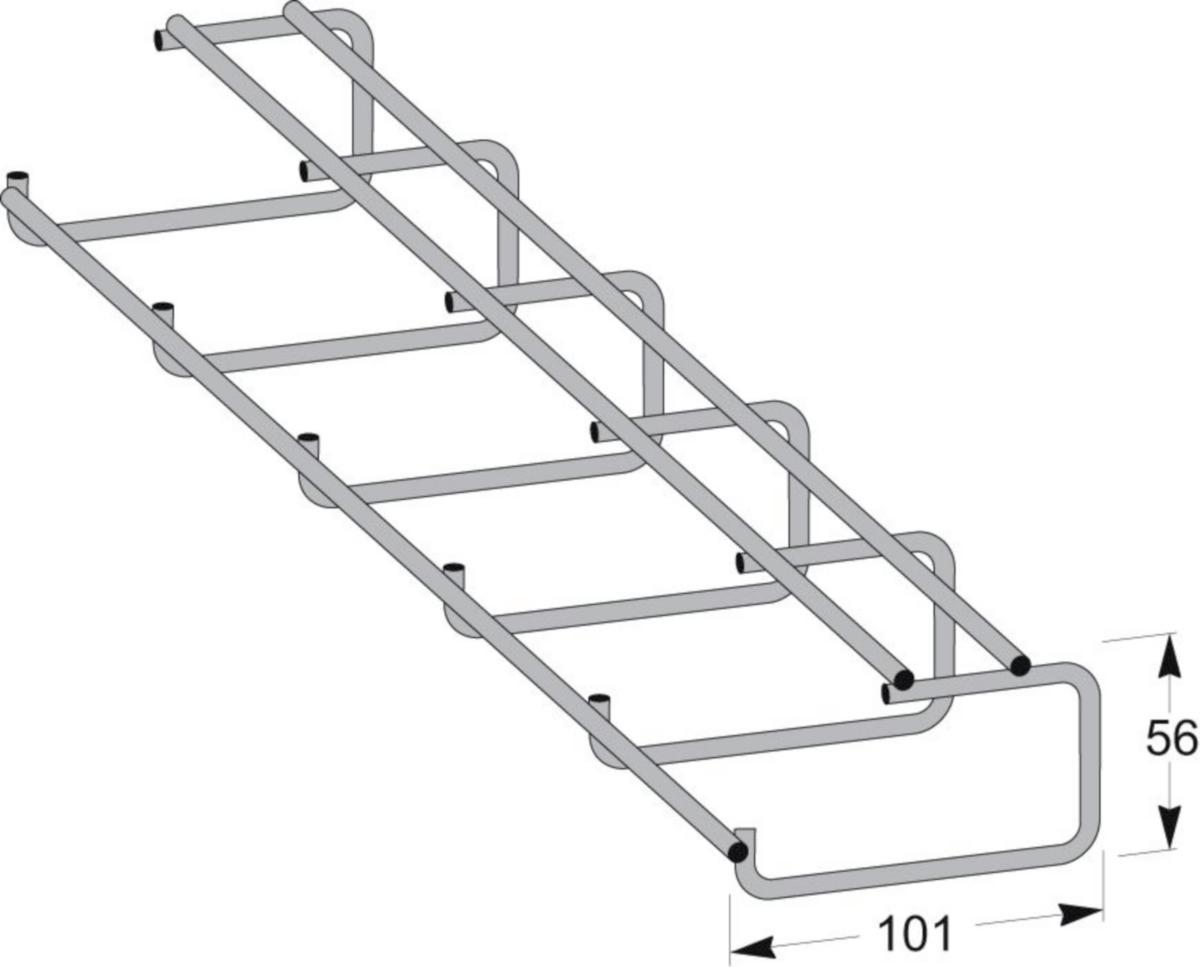

WIRE MESH TRAY 2.5 M, 100 MM MP-729 U
Article number: Suppl. article no:
1116471
729E
to see price and stock
For mounting directly to ceiling with universal washer MP-731 S. Perfect for low ceiling heights and for ROT-work. Completely open cable routing from the side. In concrete ceiling - use MP concrete screw.
- Article number: 1116471
- Suppl. article no: 729E
- Ean no: 7394333050201
- Material class QC0900
Technical data
- Packagin Size: 1 ST/6 ST/88 ST
- Type: MP-729E
- Profile shape: G-shape
- Width: 100 mm
- Height: 58 mm
- Length: 2500 mm
- Wire diameter: 4 mm
- Material: Steel
- Corrosiveness class: C1
- Surface protection: Galvanic/electrolytic zinc plated
- Model: Without connector
- Usable cross section: 1440 mm²
- Suitable for circuit integrity: No
- Integrated partition: None
- REACH Date: 2021-06-17
- GWP-tot (A1-A3): 3,4146 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
- Screwless connector: No
