Defem
Fitting B3
B3 E-GALV
Article number: Suppl. article no:
1149156
1149156
to see price and stock
B3 used to make radii and T-juction, as well as a host of other applications. Supplied including screws and nuts (M6).
- Article number: 1149156
- Suppl. article no: 1149156
- Ean no: 7332227011563
- Material class QC3500
Technical data
- Packagin Size: 1 ST/50 ST/250 ST/5000 ST
- Type: Fitting B3, FZB
- Model: Longitudinal joint
- Corrosiveness class: C1
- Surface protection: Galvanic/electrolytic zinc plated
- Material quality: Other
- Material: Steel
- Type of connection: Other
- Stainless steel, pickled: No
- RAL-number: 0
- Suitable for wire mesh tray filament: 45-110 mm
- Suitable for cable support system width: 53-622 mm
- Suitable for cable tray: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for circuit integrity: No
- Length: 29 mm
- Hinged joint horizontal: No
- Hinged joint vertical: No
- REACH Date: 2021-03-08
- Suitable for cable management system height: 0 mm
- Design: Electro zinc-plated

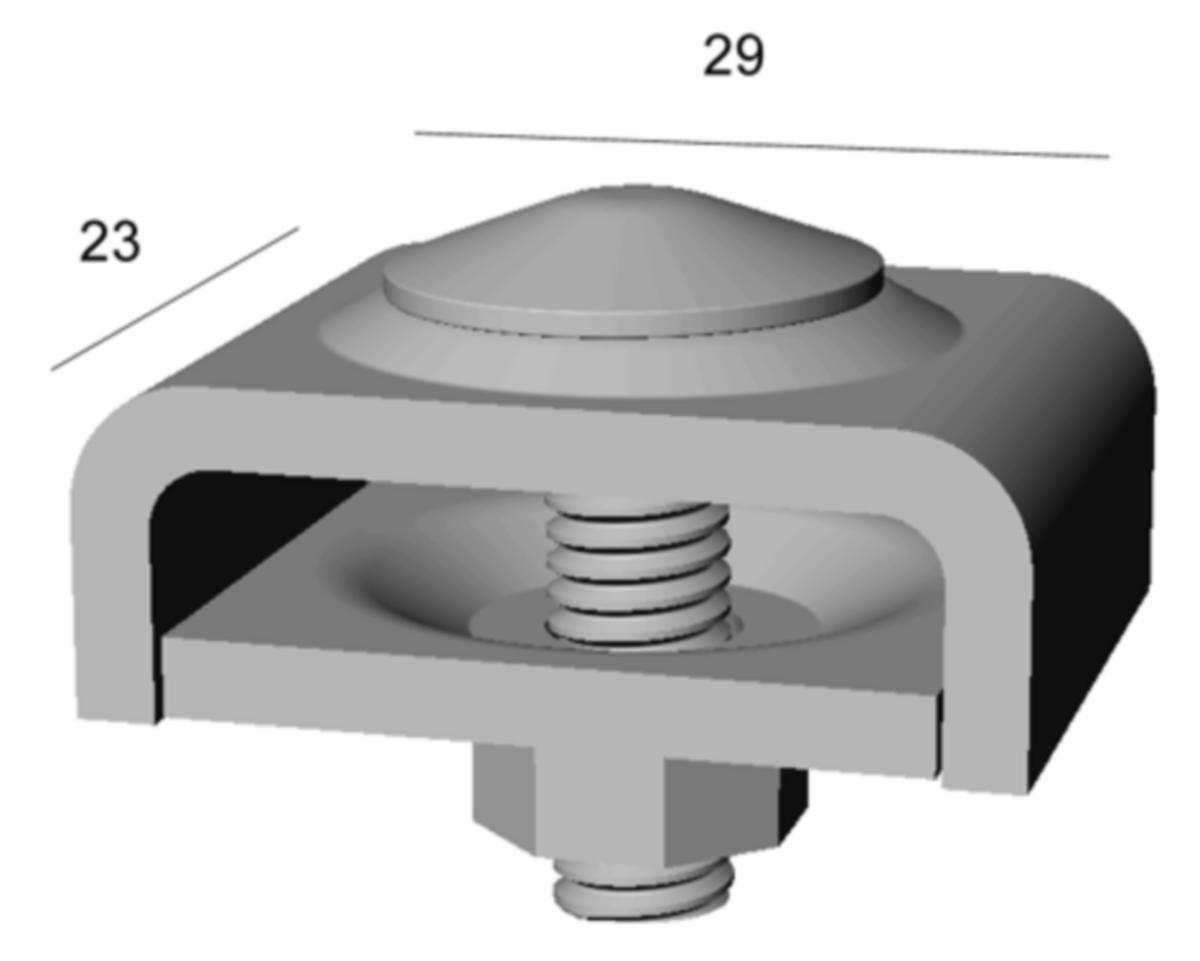

- Dimension other: 29x23x24
- REACH Information obligation: No
