Defem

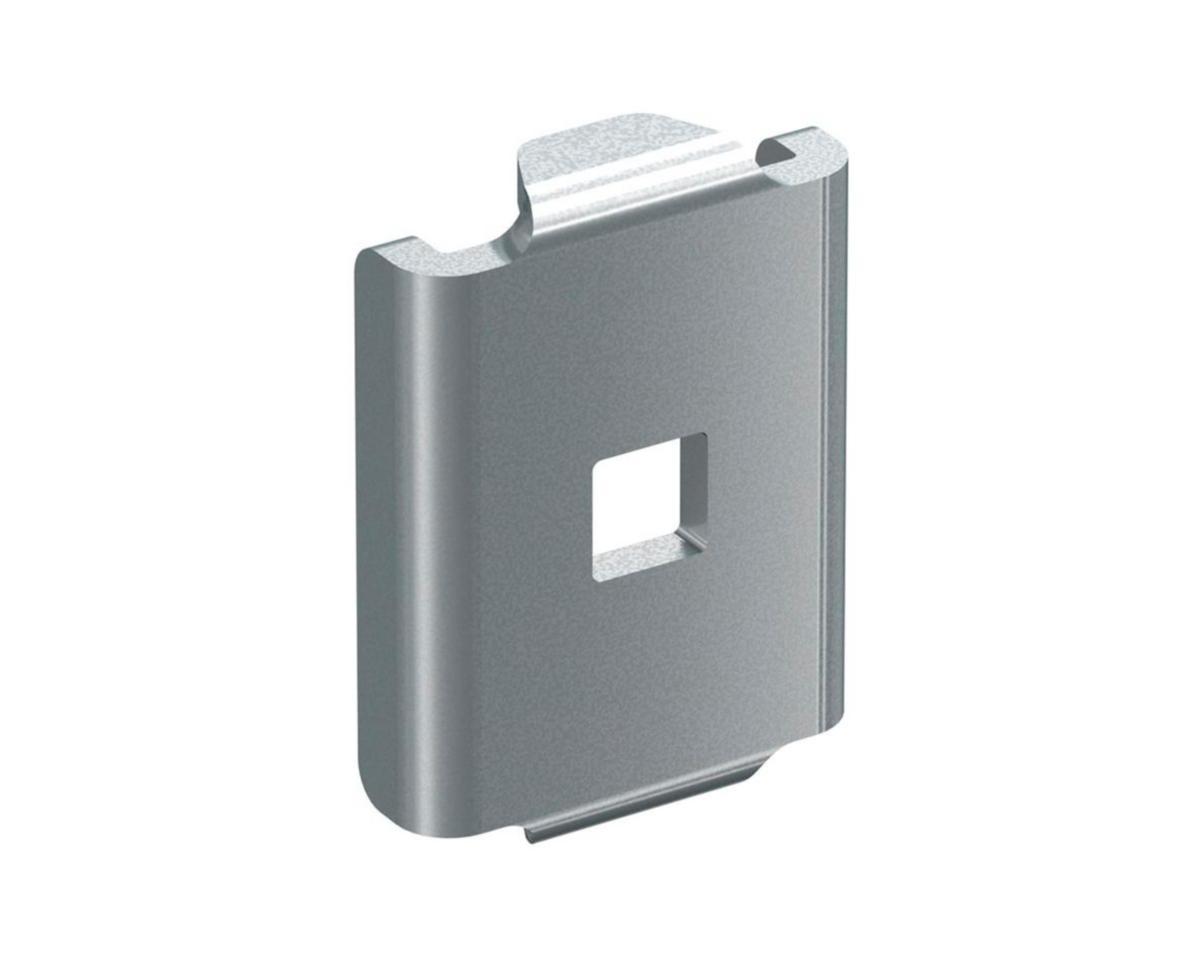

Fitting B2
FITTING B2 E-GALV
Article number: Suppl. article no:
1149155
1149155
to see price and stock
B2 used (together with B1, or other B2) to join the trays together. Other application areas are e.g. attach the tray to brackets and support yoke, as well as for angles and reinforcements. Supplied excluding screws and nuts (M6).
- Article number: 1149155
- Suppl. article no: 1149155
- Ean no: 7332227011556
- Material class QC3501
Technical data
- Packagin Size: 1 ST/50 ST/400 ST/8000 ST
- Type: 1149155
- Model: Longitudinal joint
- Corrosiveness class: C1
- Surface protection: Galvanic/electrolytic zinc plated
- Material quality: Other
- Material: Steel
- Type of connection: Other
- Stainless steel, pickled: No
- RAL-number: 0
- Suitable for wire mesh tray filament: 45-110 mm
- Suitable for cable support system width: 53-622 mm
- Suitable for cable tray: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for circuit integrity: No
- Length: 35 mm
- Hinged joint horizontal: No
- Hinged joint vertical: No
- REACH Date: 2021-03-08
- Suitable for cable management system height: 0 mm
- REACH Information obligation: No
