Wibe

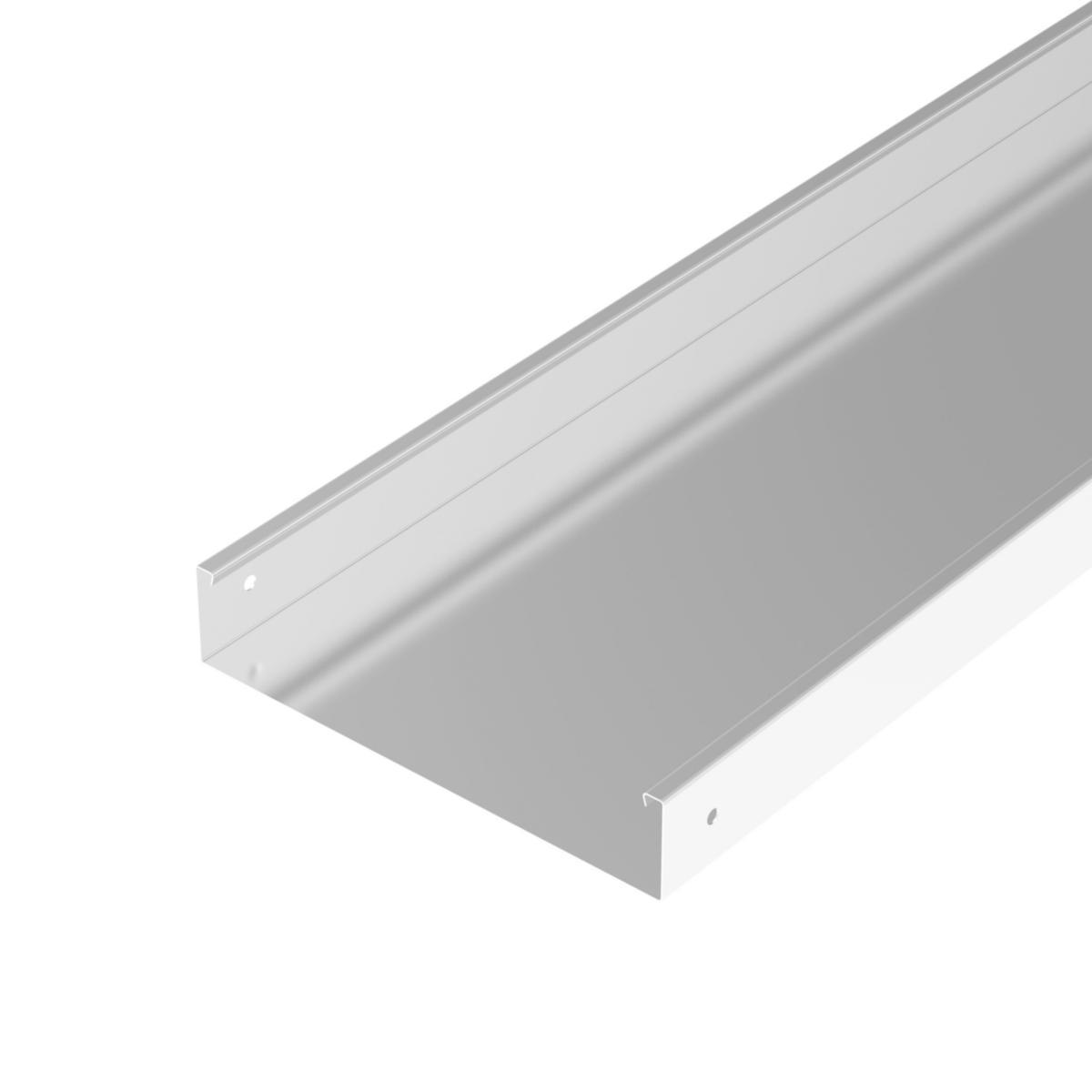

Cable duct W1/40 unperforated. Wibe
TRAY W1-400 L=2M PREGWH
Article number: Suppl. article no:
1125017
728990
to see price and stock
Unperforated cable tray designed for indoor use in dry locations. Edge height 40mm. Equipped with Ø5.8mm holes at each end of the sides, used for locking joints
- Article number: 1125017
- Suppl. article no: 728990
- Ean no: 7321677289905
- Material class QC3800
Technical data
- Packagin Size: 1 ST/4 ST/28 ST
- Type: 728990
- Corrosiveness class: C2
- Model: Without connector
- Bottom perforation: No
- Width: 400 mm
- Height: 40 mm
- Length: 2000 mm
- Surface protection: Continuously galvanised and coated
- Material: Steel
- Material quality: Other
- Colour: White
- With cover: No
- Material thickness: 1.25 mm
- RAL-number: 9010
- Stainless steel, pickled: No
- Side perforation: No
- Suitable for circuit integrity: No
- NATO-mounting holes: No
- Product series: Wibe
- Usable cross section: 16000 mm²
- REACH Date: 2020-06-25
- REACH Information obligation: No
- Wide span model: No
