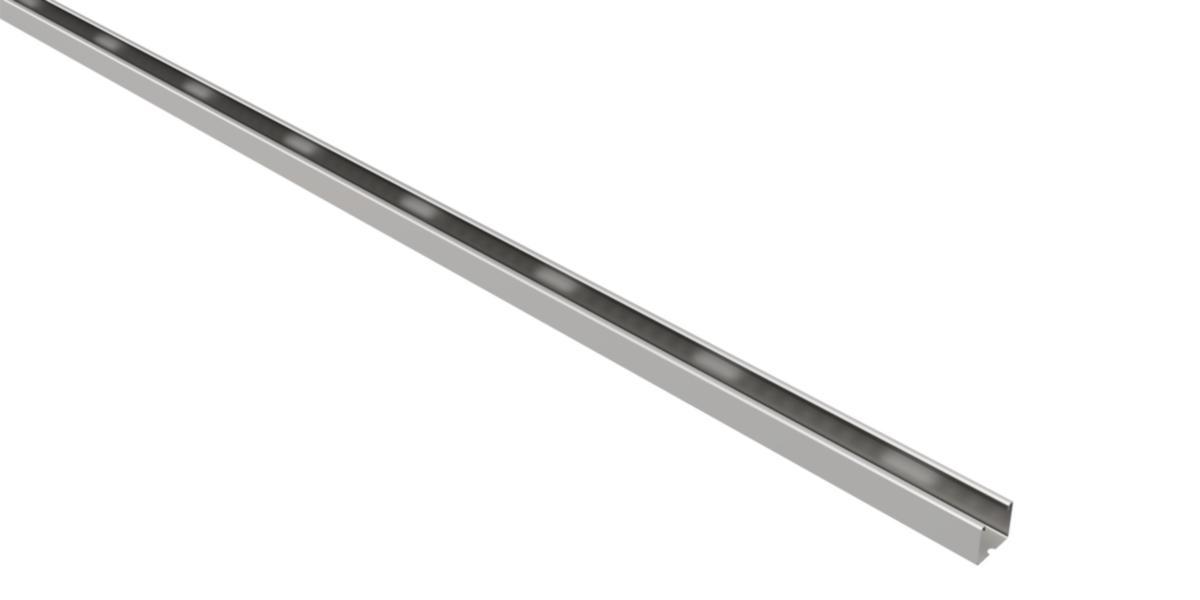

Luminaire rail MP 6m
Luminaire rail 6 m, 50 mm
Article number: Suppl. article no:
1117050
391S6
to see price and stock
Luminaire rail where the holding image is adapted to the most common 3- and 5-pole quick connectors. Lacquered rail is supplied with internally lacquer-free ends. Other lengths, colors and hot-dip galvanized rail are offered on request.
- Article number: 1117050
- Suppl. article no: 391S6
- Ean no: 7394333103686
- Material class QC1500
Technical data
- Packagin Size: 1 PCS/6 PCS/90 PCS
- Type: MP-391S6
- Height: 45 mm
- Width: 50 mm
- Material quality: Other
- Material thickness: 1 mm
- Length: 6000 mm
- Surface protection: Continuously galvanised
- Corrosiveness class: C2
- With cover: No
- Side perforation: No
- Bottom perforation: Yes
- NATO-mounting holes: No
- Model: Without connector
- Suitable for circuit integrity: No
- Operating temperature: -40-80 °C
- Material: Steel
- Working length: 6000 mm
- Weight: 1.18 kg/m
- Usable cross section: 2250 mm²
- REACH Date: 2021-06-17
- GWP-tot (A1-A3): 19,0280 kgCO2e/ST
- REACH Information obligation: No
