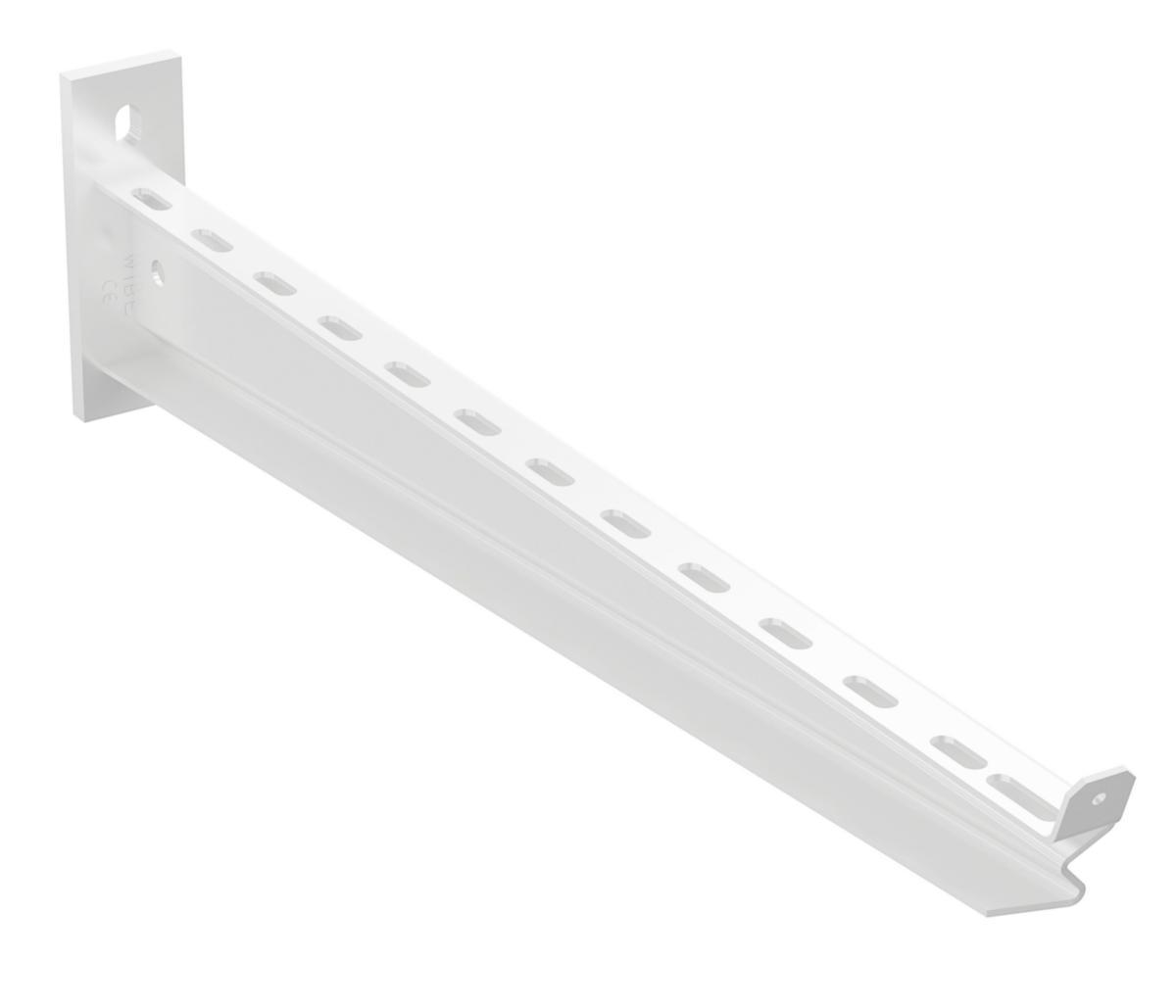

Wall bracket 50 White Hot-dip galvanised Fzv, Wibe, Schneider-Electric
C ARM 50-400 HDGWHITE
Article number: Suppl. article no:
1120732
723445
to see price and stock
White lacquered wall brackets for wall mounting, roof rails and pendulum / anchor rails.
For mounting on wall with expansion screw or on mounting, pendulum / anchor rail or roof shuttle with T-screw.
When mounting on porous walls or where the surface pressure has to be lowered, mount plate 40 is mounted
For mounting on wall with expansion screw or on mounting, pendulum / anchor rail or roof shuttle with T-screw.
When mounting on porous walls or where the surface pressure has to be lowered, mount plate 40 is mounted
- Article number: 1120732
- Suppl. article no: 723445
- Ean no: 7321677234455
- Material class QC290A
Technical data
- Packagin Size: 1 ST/2 ST/90 ST
- Type: 50-400 WHITE
- Product series: Wibe
- Corrosiveness class: C5-I
- Model: Wall- and profile console
- Suitable for cable support system width: 100-400 mm
- Material: Steel
- Width: 50 mm
- Length: 450 mm
- Height: 120 mm
- Colour: White
- RAL-number: 9010
- Suitable for circuit integrity: No
- Angle: 90 °
- Load bearing capacity: 6.5 kN
- REACH Date: 2021-03-08
- Article number supplier: 723445
- REACH Information obligation: No
