AhlsellProductsElectricInstallation equipment 11-1811aCable trays and Fitting railsCeiling and wall bracketsBracket clamp
Wibe

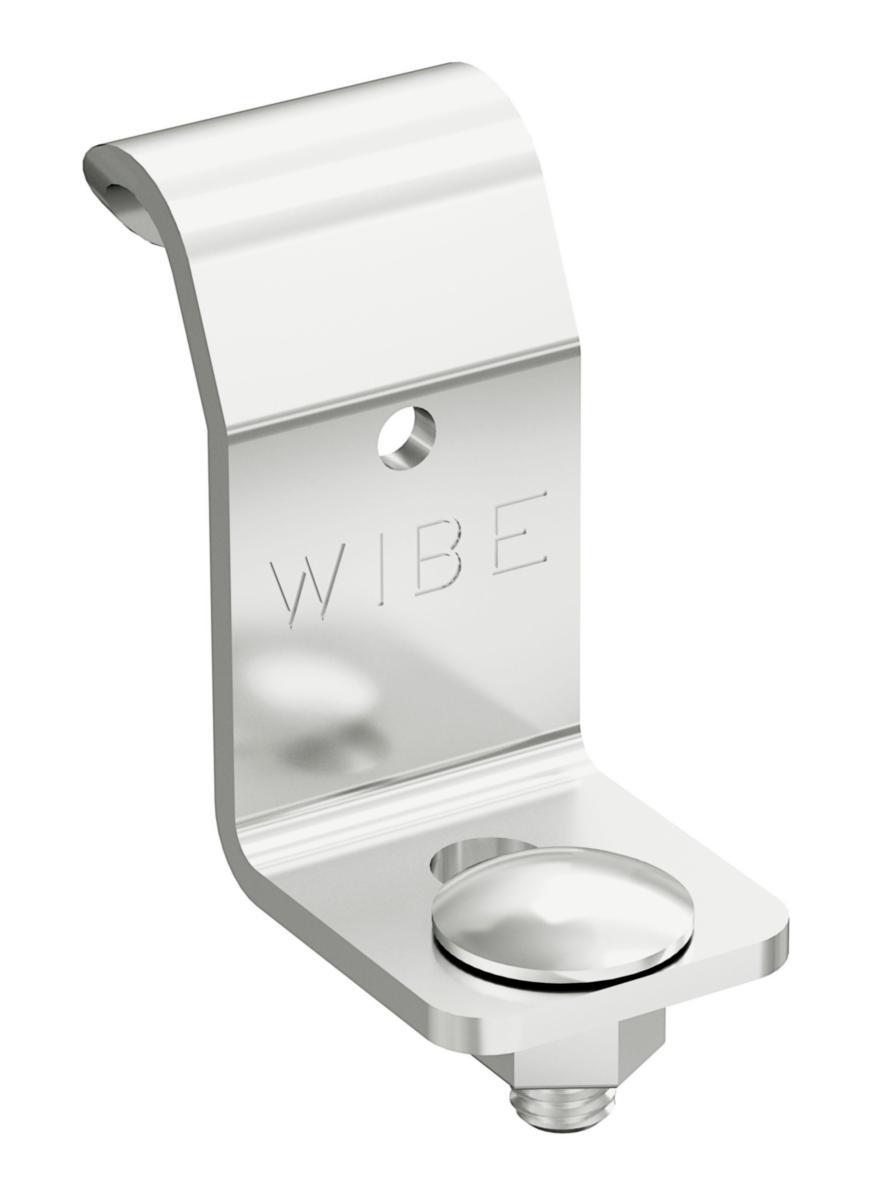

Bracket clamp 42
PROFILE CLAMP 42 AISI 316
Article number: Suppl. article no:
1120800
725763
to see price and stock
For mounting KHZSP, KHZPS, KHZ, and KHZP on console 50. With square holes, incl. screw and nut. At low loads, the clamps can be mounted alternately on the left and right of the ladder. Branch plate 33/2 mounted on two brackets 42, M8 screw + nut included
- Article number: 1120800
- Suppl. article no: 725763
- Ean no: 7321677257638
- Material class QC2900
Technical data
- Packagin Size: 1 ST/10 ST/2000 ST
- Type: 42 SF
- Corrosiveness class: C5-M
- Type of fastening: Screwing
- Connection type construction part: Clamp
- Hinging: No
- Material: Stainless steel
- Surface treatment: Stainless acid-resistant
- Width: 30 mm
- Height: 51 mm
- Product series: Wibe
- REACH Date: 2021-03-08
- REACH Information obligation: No
