Joint MP-107 for MP-S, TS, Z, PZ and AZ

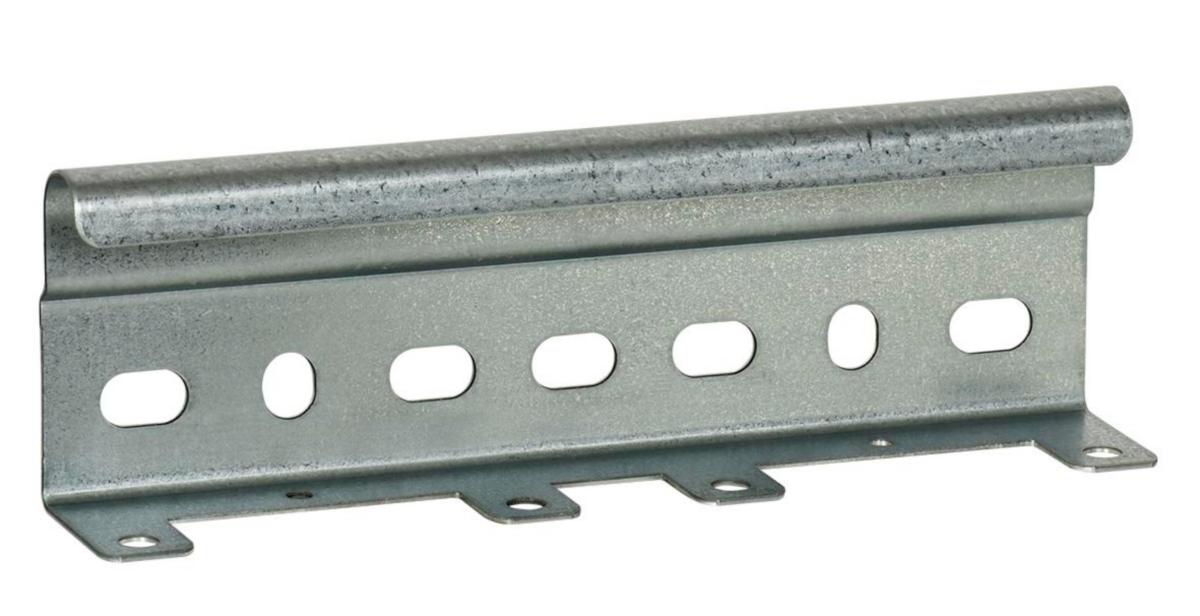

LADDER SPLICE MP-107Z4
Article number: Suppl. article no:
1115361
107Z4
to see price and stock
Fishplate MP-107, installs by placing it on the ladder profile and then using a chisel or polygrip to bend the locking tongues inward. The splice can be reinforced with screws for high tensile loads.
- Article number: 1115361
- Suppl. article no: 107Z4
- Ean no: 7394333047560
- Material class QC0600
Technical data
- Packagin Size: 1 ST/10 ST/120 ST/1080 ST
- Suitable for cable support system width: 200-600 mm
- Model: Longitudinal joint
- Suitable for cable ladder: Yes
- Suitable for cable tray: No
- Corrosiveness class: C4
- Surface protection: Hot-dip galvanised
- Suitable for wire mesh tray: No
- Type of connection: Screwless connector
- Length: 185 mm
- Material: Steel
- Hinged joint horizontal: No
- Hinged joint vertical: No
- Suitable for circuit integrity: No
- REACH Date: 2021-06-17
- Suitable for cable management system height: 56 mm
- GWP-tot (A1-A3): 50,9200 kgCO2e/ST
- REACH Information obligation: No
