Wibe

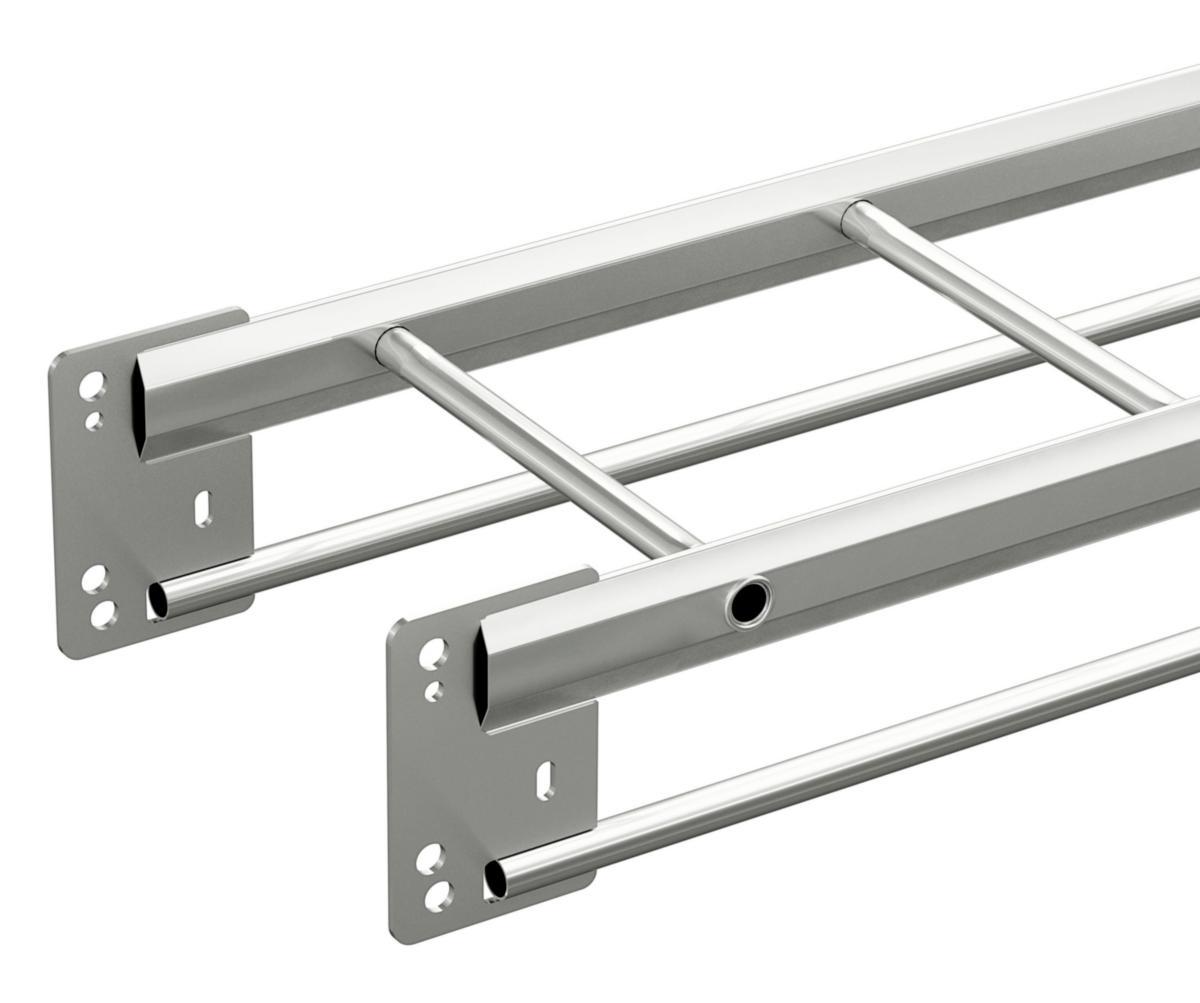

Cable ladder type KHZV / KHZPV, Hot-dipped galvanised FZV, L= 6 meter
CABLE LADDER KHZV-400 6M HDG
Article number: Suppl. article no:
1120429
712019
to see price and stock
Reinforced, hot dip galvanized cable ladder designed for indoor or outdoor installations in high-demand areas in terms of extremely high console spacing, load, rigidity, and spot load. The ladder is equipped with vault pipes, fixed joints, closed, hexagonal side profiles and oval pressed ladder steps. Can not be used to step or climb upon. If a wider cable ladder is preferred there is the model KHZPV.
- Article number: 1120429
- Suppl. article no: 712019
- Ean no: 7321677120192
- Material class QC2600
Technical data
- Packagin Size: 1 ST/10 ST
- Type: KHZV 400
- Corrosiveness class: C4
- Width: 400 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised
- Material: Steel
- Material quality: Other
- Height: 134 mm
- Stainless steel, pickled: No
- Type of side joist: Tube shape (closed)
- Type of rung: Tube shape (closed)
- Side perforation: Yes
- Fixation rung: Fully revited
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Product series: Wibe
- Weight: 4.8 kg/m
- Usable cross section: 11514000 mm²
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 80,352 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: Yes
