Cable ladder MP-LS
Cable ladder 3 m, 200 mm
Article number: Suppl. article no:
1115122
102LS
to see price and stock

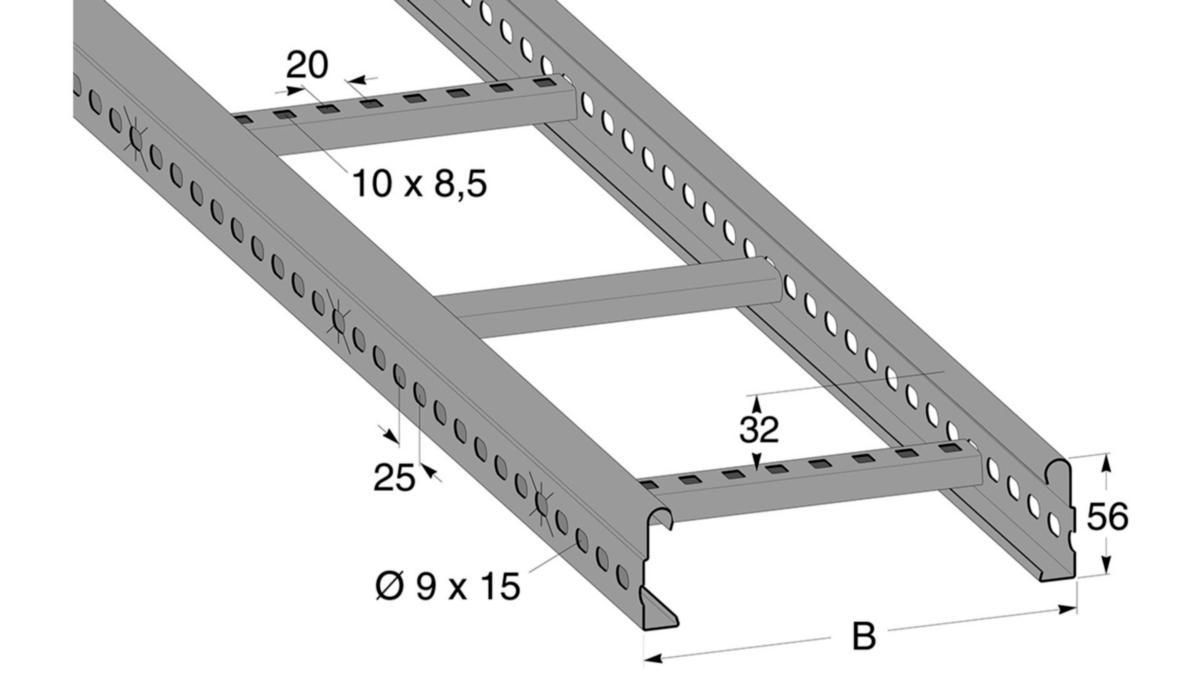

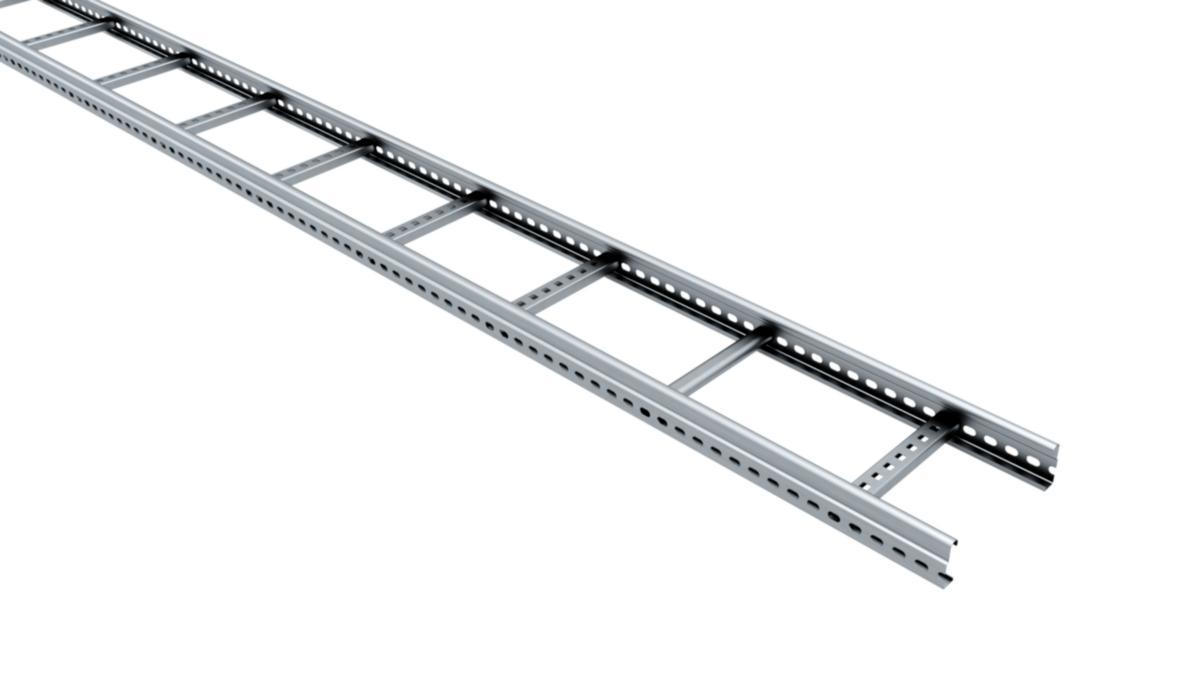

Sendzimir galvanized cable ladder with perforated rungs. Pin distance: c-c 250 mm. Criminal load: more than or equal to 1.7 times the maximum load.
- Article number: 1115122
- Suppl. article no: 102LS
- Ean no: 7394333000626
- Material class QC0300
Technical data
- Packagin Size: 1 PCS/6 PCS/24 PCS/96 PCS
- Corrosiveness class: C2
- Width: 200 mm
- Length: 3000 mm
- Surface protection: Continuously galvanised
- Material: Steel
- Material quality: Other
- Height: 56 mm
- Colour: Zinc
- Type of side joist: Profile (open)
- Type of rung: Perforated profile
- Side perforation: Yes
- Fixation rung: Welded
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Possible support spacing: 2-3 m
- Safe working load according to IEC 61537 with support spacing 2.0 m: 650 N/m
- Vertical cable ladder: No
- Weight: 1.25 kg/m
- Usable cross section: 6200 mm²
- Load test type according to IEC 61537: Type II
- Working length: 3000 mm
- Operating temperature: -40-120 °C
- Safe working load according to IEC 61537 with support spacing 3.0 m: 300 N/m
- REACH Date: 2023-11-13
- REACH Information obligation: No
