Cable ladder MP-FZ, Hot-dip galvanisation
CABLE LADDER FZ 6 M, 200 MM
Article number: Suppl. article no:
1115085
192Z
to see price and stock

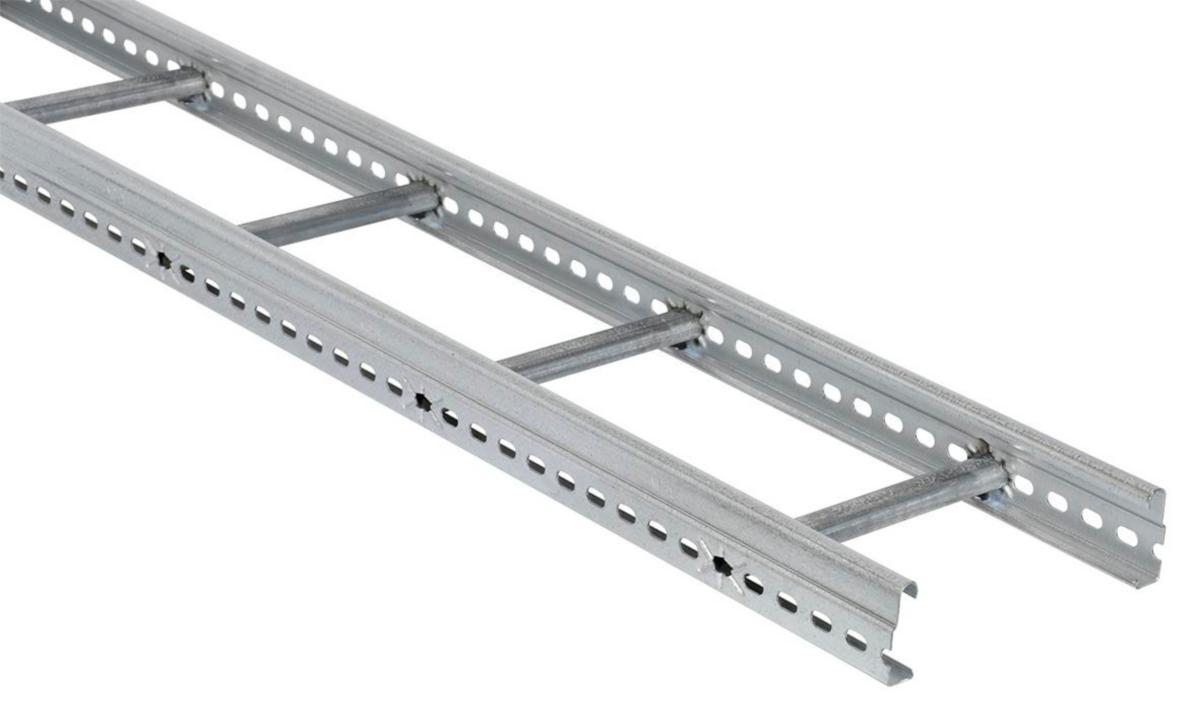

A very strong ladder intended for large bracket distances, but also in environments requiring high mechanical strength. The ladder rungs are made of anchor rails, so anchor rail accessories fit the rungs. Both the rung and profile are perforated.
- Article number: 1115085
- Suppl. article no: 192Z
- Ean no: 7394333003221
- Material class QC0300
Technical data
- Packagin Size: 1 ST/12 ST
- Type: MP-192Z
- Corrosiveness class: C4
- Width: 200 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised
- Material: Steel
- Height: 100 mm
- Type of side joist: Profile (open)
- Type of rung: Perforated profile
- Side perforation: Yes
- Fixation rung: Welded
- Rung centre spacing: 300 mm
- Suitable for circuit integrity: No
- GWP-tot (A1-A3): 89,1450 kgCO2e/ST
- REACH Date: 2021-06-17
- Wide span model: Yes
- REACH Information obligation: No
