Cable ladder MP-Z, Hot-dip galvanisation
CABLE LADDER Z 6M 200MM MP-152 Z 6M
Article number: Suppl. article no:
1115063
152Z
to see price and stock
To shop with us, you need a registered company and a customer number.

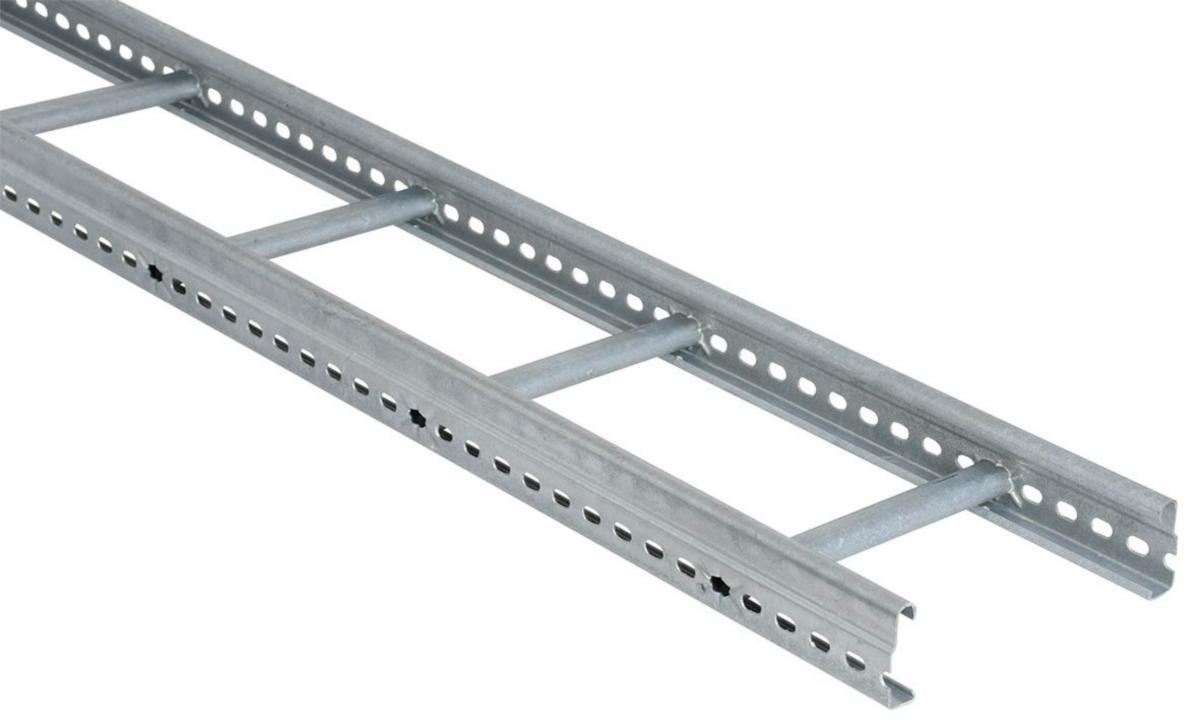

A strong industrial ladder made of hot-dip galvanised (60 µm) sheet steel, 1.25 resp 1.5 mm. Intended primarily for larger spaces such as factory halls, where the longer length can be used for quicker installation. Length 6 metres. Pin distance of 250 mm.
- Article number: 1115063
- Suppl. article no: 152Z
- Ean no: 7394333002255
- Material class QC0300
Technical data
- Packagin Size: 1 ST/20 ST
- Type: MP-152Z
- Corrosiveness class: C4
- Width: 200 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised
- Material: Steel
- Height: 56 mm
- Type of side joist: Profile (open)
- Type of rung: Tube shape (closed)
- Side perforation: Yes
- Fixation rung: Welded
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Useful cross section: 6200 mm²
- REACH Date: 2021-06-17
- REACH Information obligation: No
- Wide span model: No
