Wibe

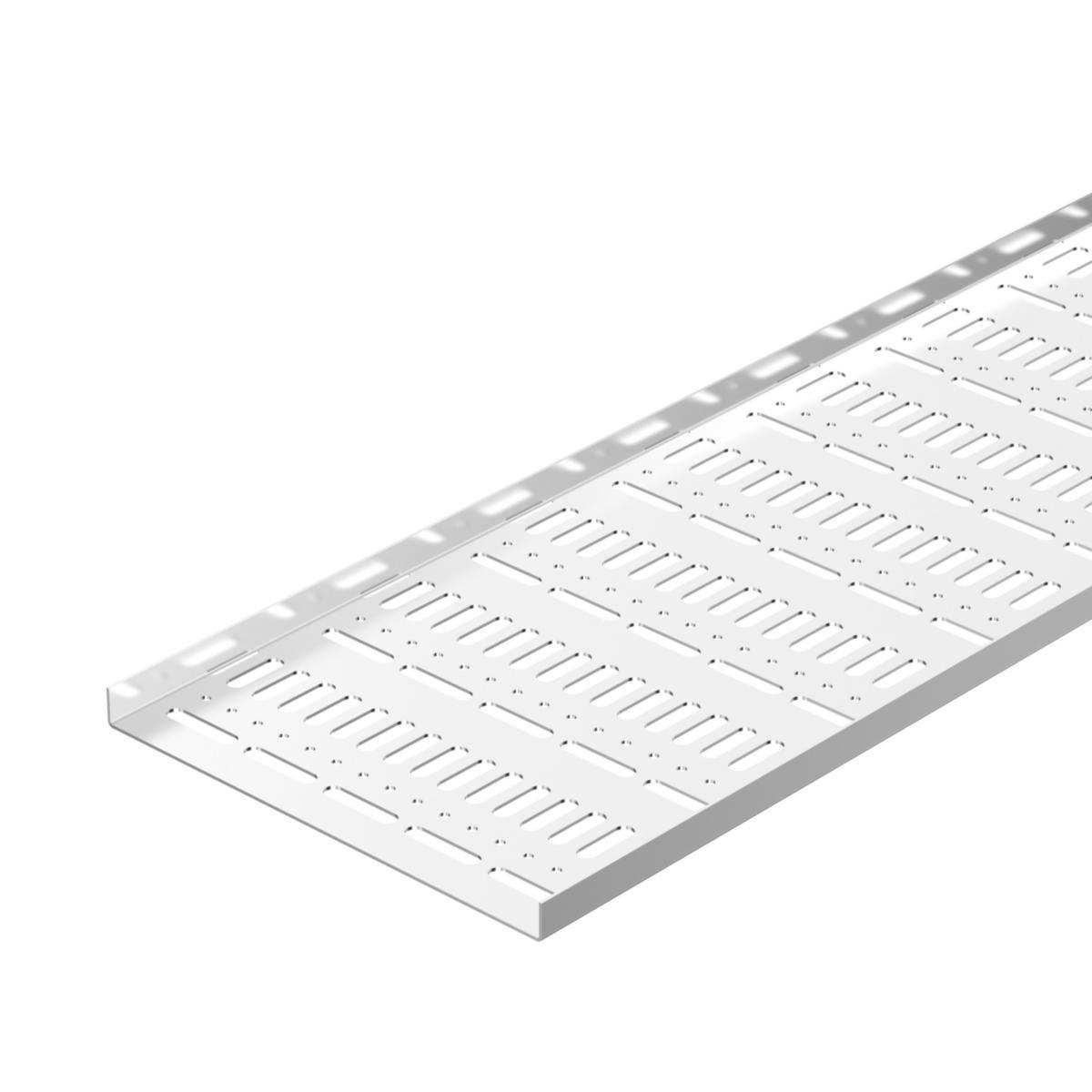

Assembly tray W4 FZS White
INST.TRAY W4-100 L=1.96 PRE-GW
Article number: Suppl. article no:
1125129
736635
to see price and stock
Perforated white mounting channel intended for indoor installations in dry environments, suitable for vertical wall mounting in industry, in elevator and fan rooms. The channel can also be used for horizontal mounting on a bracket. Holes Ø 3.5 mm in the bottom of the channel allow clamping of cables with sheet metal screws.
- Article number: 1125129
- Suppl. article no: 736635
- Ean no: 3303437366358
- Material class QC380A
Technical data
- Packagin Size: 1 ST/182 ST
- Type: 736635
- Corrosiveness class: C2
- Model: Without connector
- Bottom perforation: Yes
- Width: 100 mm
- Height: 15 mm
- Length: 1960 mm
- Surface protection: Continuously galvanised and coated
- Material: Steel
- Material quality: Other
- Colour: White
- With cover: No
- Material thickness: 1 mm
- RAL-number: 9010
- Stainless steel, pickled: No
- Side perforation: No
- Suitable for circuit integrity: No
- NATO-mounting holes: Yes
- Product series: Wibe
- Usable cross section: 1500 mm²
- REACH Date: 2020-06-25
- REACH Information obligation: No
