MP bolagen

Mounting profile MP-MK Z4

ASSEMBLY PROFILE MP-MK, 150 MM 824AZ
Article number:
1116037
Suppl. article no:
824AZ





 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Rekommenderas.

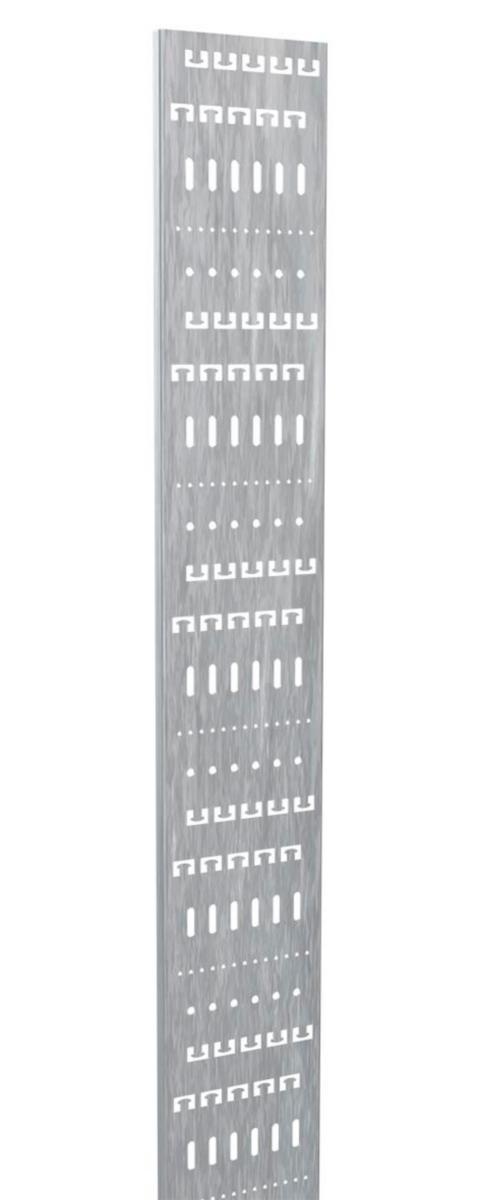

Mounting profile equipped with "mushrooms" that you can quickly hook cable ties or tie wire around. The holes are 25 mm c/c laterally, because the second row is offset, cables 12.5 mm c/c can be clamped. It is common knowledge that hot-dip galvanized products can sit outdoors, but with respect to the environment, the manufacturing process is not gentle. This entails transport to and from the facility for hot-dip galvanizing after manufacturing. MP-Bolagen has developed a new material called Z4. The plate is finished from the steel mill and self-heals, for example, after drilling. The surface treatment corresponds to a minimum of 85 μm, compared to a traditional hot-dip galvanized product which is normally a maximum of 60 μm. Some accessories cannot be manufactured in Z4 depending on material thickness, so you have to choose hot-dip galvanized.
  • Article number:
    1116037
  • Suppl. article no:
    824AZ
  • Ean no:
    7394333043289
  • Material class
    QC190B
Technical data
  • Packagin Size: 1 PCS/6 PCS/90 PCS
  • Type: MP-824AZ
  • Corrosiveness class: C4
  • Model: Without connector
  • Bottom perforation: Yes
  • Width: 150 mm
  • Height: 14 mm
  • Length: 2000 mm
  • Surface protection: Continuously galvanised zinc-magnesium
  • Material: Steel
  • Material quality: Other
  • With cover: No
  • Material thickness: 1.25 mm
  • Side perforation: No
  • Suitable for circuit integrity: No
  • NATO-mounting holes: Yes
  • Working length: 2000 mm
  • Weight: 1.55 kg/m
  • Useful cross section: 1806 mm²
  • REACH Date: 2021-06-17
  • REACH Information obligation: No
