Digital underfloor heating thermostat, R-SENZ-WIFI
R-SENZ-WIFI WITH TOUCH SCREEN
Article number: Suppl. article no:
8581571
1244-017778
to see price and stock

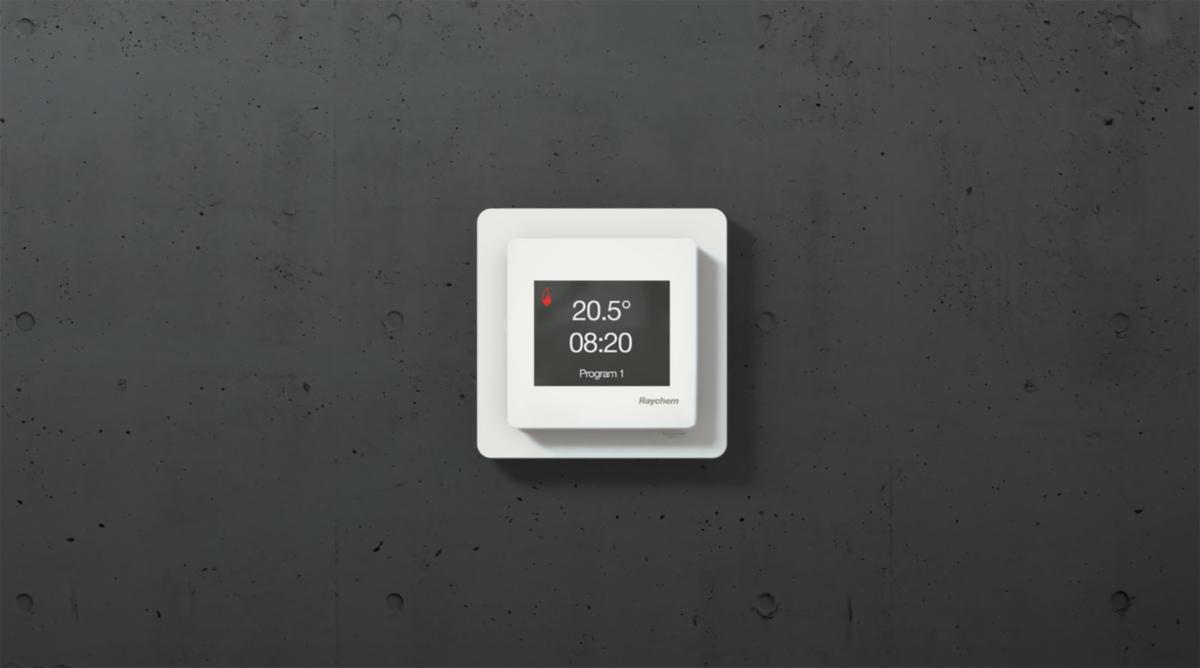

Programmable WIFI underfloor heating thermostat with touchscreen, simple navigation with touch and swipe, as well as smart energy-saving programmes.

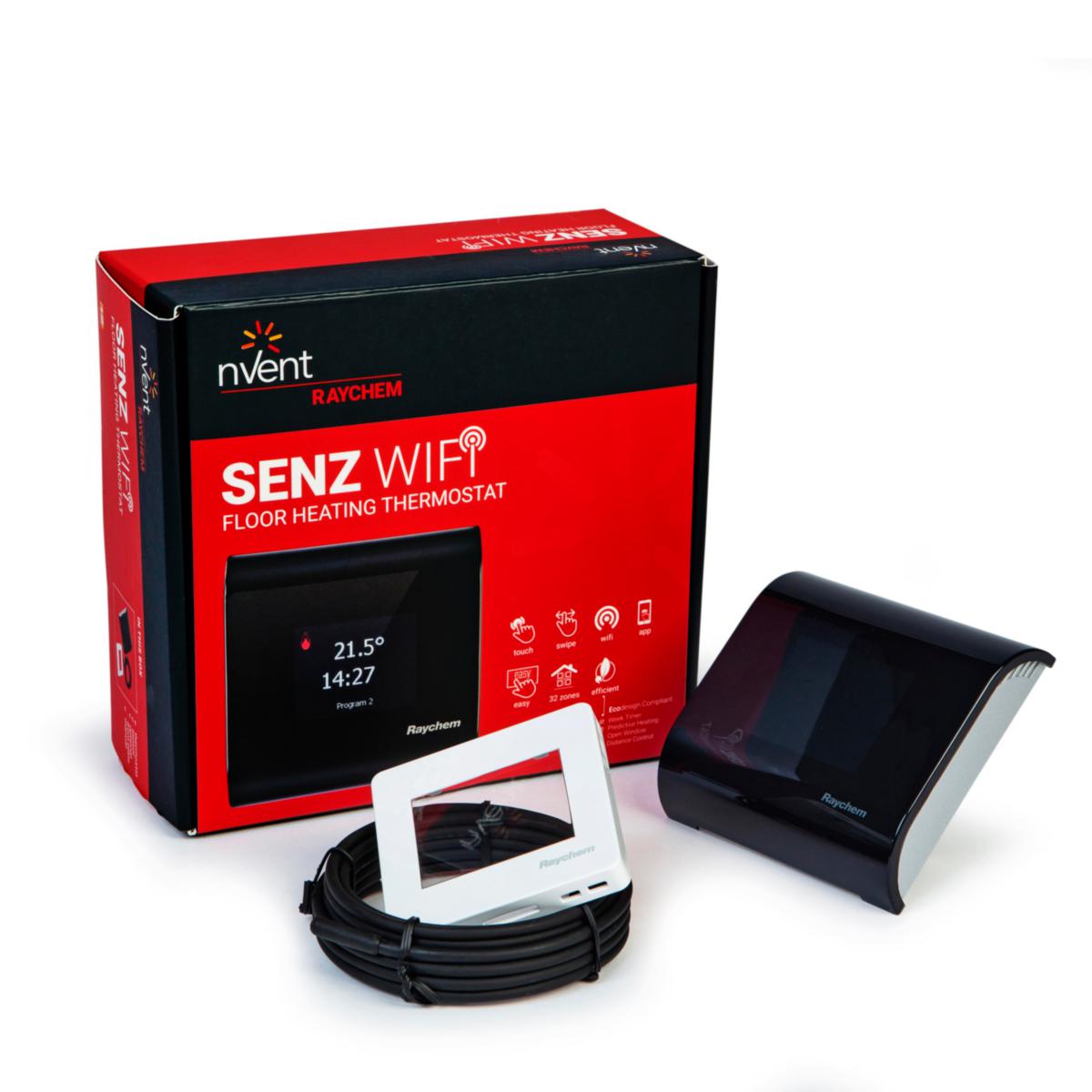

Can be controlled via Smartphone, with the SENZ WIFI App, which can be downloaded free from Apple Store or Google Play. Operating modes: 3 weekly programmes, constant, boost, holiday as well as turn-off. Control modes: floor sensor, room sensor, room sensor with floor sensor as limiter as well as regulator. Compatible with 2, 10, 12, 15, 33 and 100 kΩ sensors. Floor sensor with 3 m cable included. Comes with two fronts: Raychem Black as well as white (RAL9003) centre plate for switch system. 2-pole switch. 13A output relay. 230 VAC.
Can be controlled via Smartphone, with the SENZ WIFI App, which can be downloaded free from Apple Store or Google Play. Operating modes: 3 weekly programmes, constant, boost, holiday as well as turn-off. Control modes: floor sensor, room sensor, room sensor with floor sensor as limiter as well as regulator. Compatible with 2, 10, 12, 15, 33 and 100 kΩ sensors. Floor sensor with 3 m cable included. Comes with two fronts: Raychem Black as well as white (RAL9003) centre plate for switch system. 2-pole switch. 13A output relay. 230 VAC.
- Article number: 8581571
- Suppl. article no: 1244-017778
- Ean no: 5414506018325
- Replaces art.nbr: 8581570
- Material class QX2400
Technical data
- Type: R-SENZ-WIFI
- Colour: Other
- RAL-number: 9003
- Adaptive (self-learning): Yes
- External sensor: Yes
- Height: 87 mm
- Suitable for district heating control: No
- Depth: 42.7 mm
- Number of cooler outputs: 0
- Remote operation possible: Yes
- Width: 87 mm
- Suitable for floor heating control: Yes
- With presence perception: No
- Measuring range: 5-40 °C
- Number of switching programmes: 7
- Temperature readable: Yes
- Control characteristic: PI
- Ventilation: No
- Number of ventilation outputs: 0
- Max. contact load: 13 A
- Sensor/feeler type: Resistance sensor
- Operation: Touch screen
- Weather-dependent control system: No
- Class of the temperature control: III
- Degree of protection (IP): IP21
- Max. contact voltage: 230 V
- Type of clock: Week clock
- With tap water circuit: No
- With display: Yes
- Clock model: Digital
- Standby power consumption (solstandby): 0.5 W
- Number of heater outputs: 1
- With thermal feedback: Yes
- Suitable for heating: Yes
- Type of power supply: 230 V
- REACH Date: 2021-11-04
- REACH Information obligation: No
