Schneider Electric

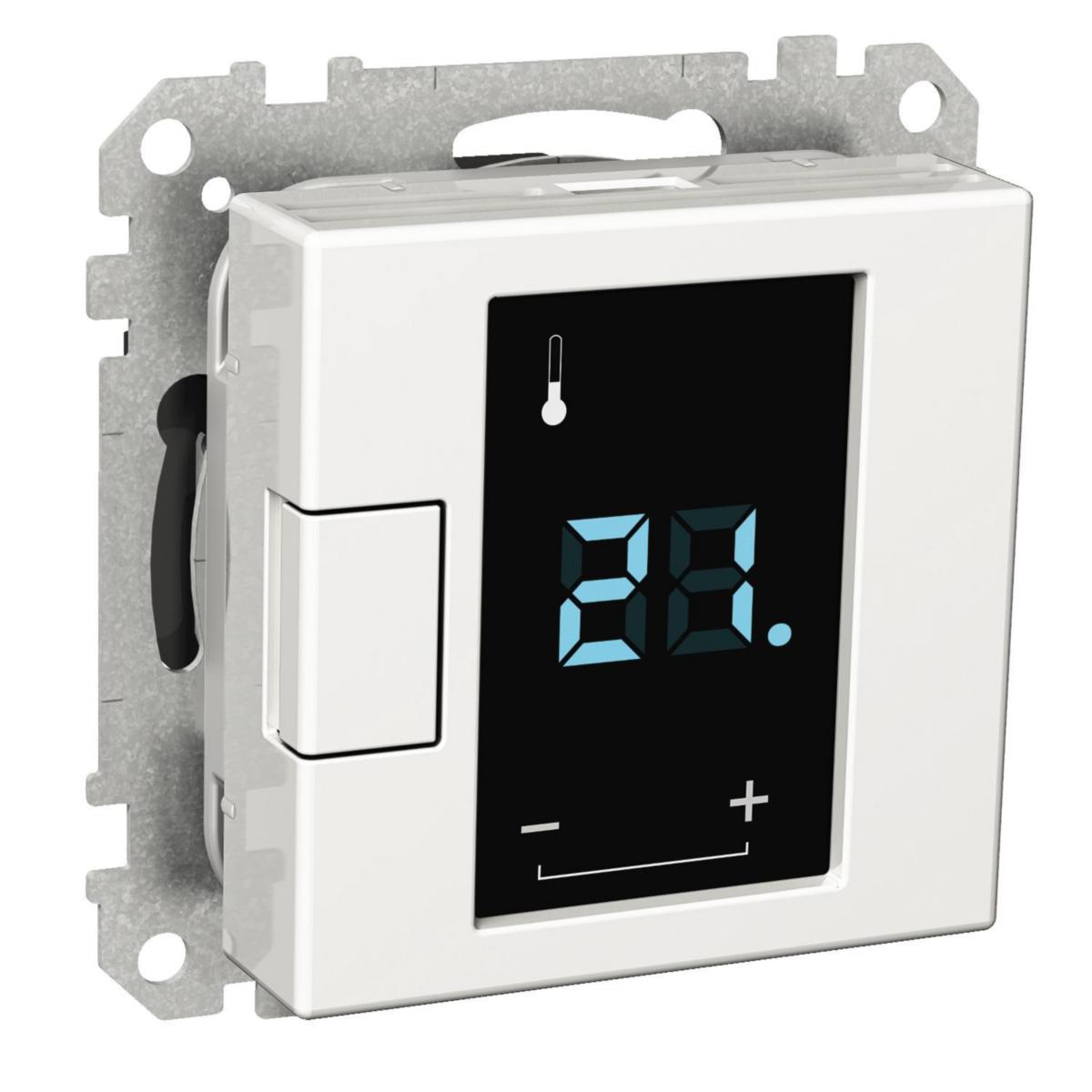

Thermostat with display, Exxact
THERMOSTAT TOUCH DISPLAY WHITE 0
Article number: Suppl. article no:
8580385
WDE002491
to see price and stock
To shop with us, you need a registered company and a customer number.
Exxact Termostat 2-pole with touchdisplay.
- Article number: 8580385
- Suppl. article no: WDE002491
- Ean no: 3606480205019
- Material class QH170A
Technical data
- Packagin Size: 1 PCS/12 PCS
- Measuring range: 5-50 °C
- Operation: Button
- Mounting method: Flush-mounted
- Colour: White
- RAL-number: 9010
- Connection: 3-wire
- Number of heater outputs: 1
- Number of cooler outputs: 0
- Degree of protection (IP): IP20
- Model: On/Off
- Sensor/feeler type: Other
- Type of power supply: 230 V AC
- Differential value: 0.5 K
- Temperature readable: No
- Adjustable differential: No
- With display: Yes
- With receiver: No
- External sensor: Yes
- Thermal feedback: None
- Control characteristic: PID
- Suitable for heating: Yes
- Width: 71 mm
- Height: 71 mm
- Depth: 19 mm
- Diameter: 71 mm
- Standby power consumption (solstandby): 0.5 W
- Explosion-proof: No
- Class of the temperature control: V
- Max. contact load: 16 A
- Max. contact voltage: 230 V
- With sound indicator: No
- With tap water circuit: No
- Degree of protection (NEMA): 1
- Product series: Exxact
- Suitable for cooling: No
- Number of modules (module system): 2
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
