Ebeco

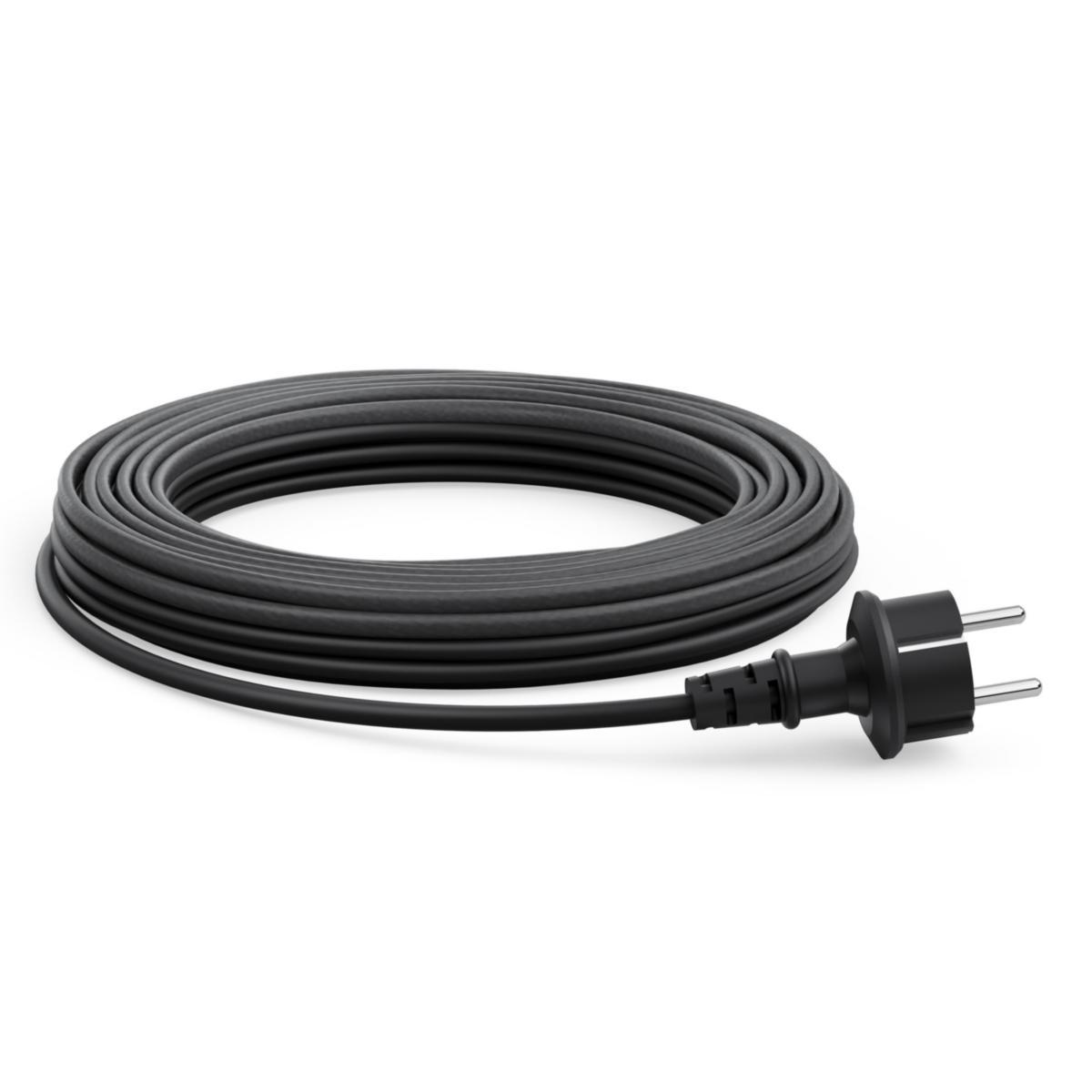

Frost detector 25 for downpipes and gutters

FROST PROTECTION 5 M 125W 10A SELF-REGULATION. HEATING CABL
Article number:
8960471





to see price and stock
To shop with us, you need a registered company and a customer number.
Ebeco Frostvakt 25 prevents problems with icicles in gutters and damage caused by frozen drainpipes.
Mobile no.
Frostvakt 25 has a fitted 4-metre connecting cable with a plug. It can easily be connected to an earthed wall socket. You can use Frostvakt 25 on gutters and drainpipes to melt snow and prevent build-up of ice, but it can also be used in other applications where cold and frost are a problem.
Intelligent heating cable
The cable’s self-regulation means that it will not overheat. Not even if it is crossed to fit the gutter perfectly. The cable adjusts its own output depending on the ambient temperature. It gives maximum output only when needed, i.e. when there is ice and snow. In the parts of the installation where the snow has melted and heat is no longer needed, the cable adjusts its output by up to 50%, which makes it an economical form of freeze protection.
Freeze protection of gutters and drainpipes
Frostvakt 25 is excellent for temporary installations in gutters and drainpipes. You can easily fix it to the gutter with the aid of Ebeco Smartclip R and connect to a 230 V earthed wall socket. Easy to remove when winter is over. For permanent installation, a strain relief connector must be used and the installation must be carried out in accordance with applicable electrical installation rules.
Freeze protection of heat pumps
Frostvakt 25 can effectively be fitted against the plate to prevent condensation water from freezing, which heating cables with a lower output normally cannot manage.
Frost protection of pipes
Frostvakt 25 can be used on the outside of pipes Ø 75 mm or larger. A Ø 110 mm pipe with 20 mm insulation can manage -30°C when protected with Frostvakt 25. For freeze protection of smaller pipes, use Frostvakt 10, which has a lower output.
Freeze protection of properties
For large properties, we recommend a long-term alternative with a permanent installation. Ebeco’s snow melting equipment T-18 is a profitable investment that creates security for both people and properties. The system consists of a robust heating cable with smart control that minimises energy consumption.
  • Article number:
    8960471
  • Ean no:
    7330778604715
  • Material class
    QX4800
Technical data
  • Design: m at +5°C when installed on metal pipes.
  • Application: Gutter
  • Cable type: Self-limiting parallel
  • Length: 5 m
  • Heating capacity: 25 W/m
  • Width: 10.5 mm
  • Height: 6 mm
  • Nominal voltage: 230 V
  • Max. hold temperature: 65 °C
  • Colour: Black
  • Screening: Braiding
  • REACH Date: 2021-06-30
  • REACH Information obligation: No
  • Max operating temperature: 65°C
  • Min installation temperature: -10°C
  • Surface treatment screening: Tinned
  • Material screening: Copper
