Renova

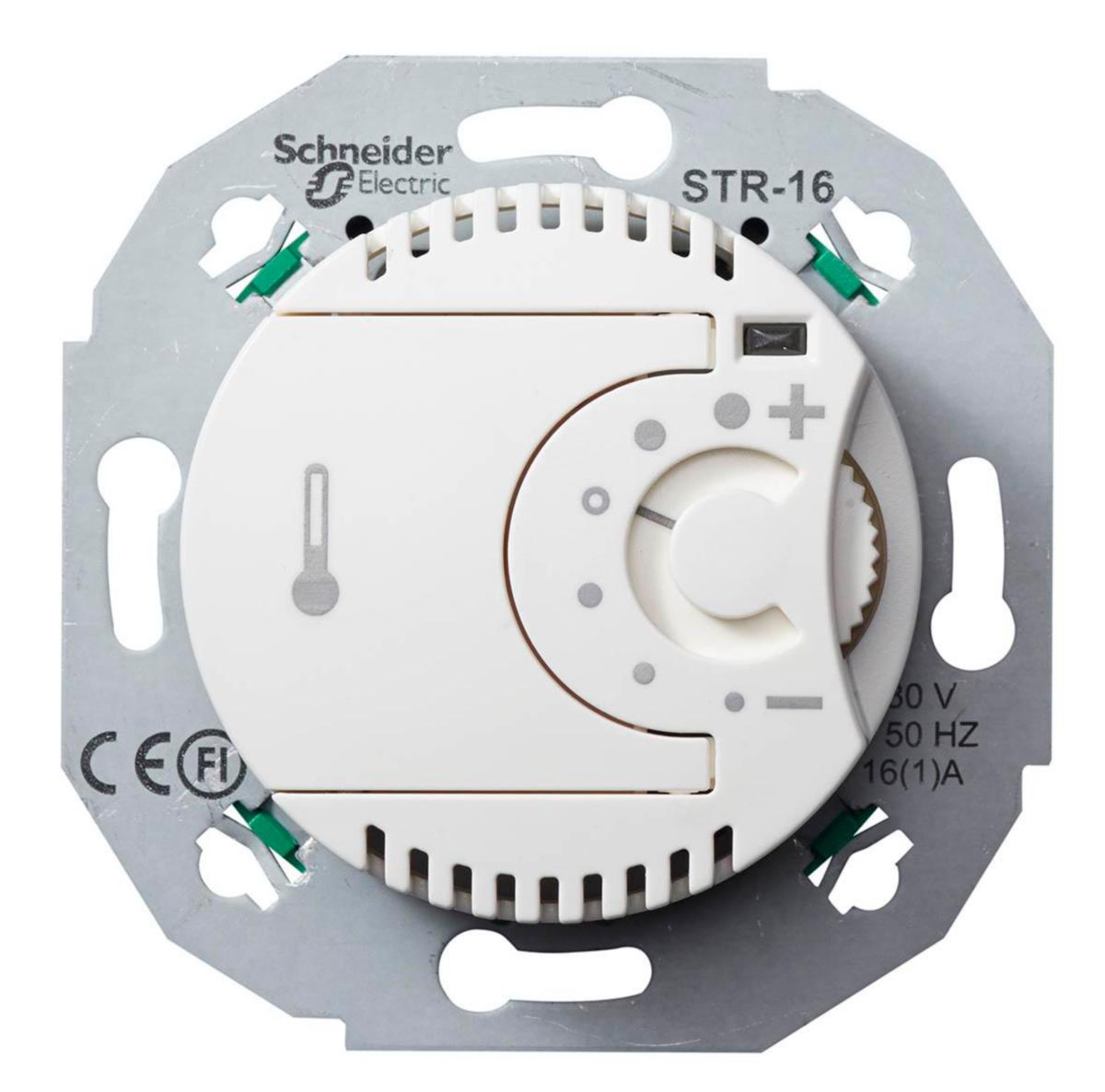

Room thermostat Renova 16A 2-pole
THERMOSTAT ROOM HEATING WHITE SUPPLEMENTED WITH APPROPRIATE
Article number: Suppl. article no:
8580077
WDE011622
to see price and stock
To shop with us, you need a registered company and a customer number.
Renova Electronic room thermostat 2-pole. LED indicating green = operation, red = active, 1 ° C sensitivity. For flush mounting in device box c / c 60 mm. For external mounting, a box 35 mm is used, quick connection, supplemented with any Renova frame.
- Article number: 8580077
- Suppl. article no: WDE011622
- Ean no: 3606480661914
- Material class QX2600
Technical data
- Packagin Size: 1 PCS/12 PCS
- Type: WDE011622
- Measuring range: 5-30 °C
- Contact type: Breaker contact (NC)
- Operation: Turn
- Mounting method: Flush-mounted
- Colour: White
- Connection: 3-wire
- Number of heater outputs: 1
- Number of cooler outputs: 0
- Degree of protection (IP): IP20
- Model: On/Off
- Sensor/feeler type: Resistance sensor
- Type of power supply: 230 V AC
- Differential value: 1 K
- Temperature readable: No
- Adjustable differential: No
- With display: No
- With receiver: No
- External sensor: Yes
- Thermal feedback: None
- Control characteristic: Other
- Suitable for heating: Yes
- Width: 83 mm
- Height: 83 mm
- Depth: 55 mm
- Diameter: 57 mm
- Explosion-proof: No
- Class of the temperature control: I
- Max. contact load: 16 A
- Max. contact voltage: 230 V
- With sound indicator: No
- With tap water circuit: No
- Degree of protection (NEMA): 1
- Suitable for cooling: No
- REACH contains candidate substances: Bly | 1,3-propanesultone 1,2-oxathiolane 2,2-dioxide
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
