Pax

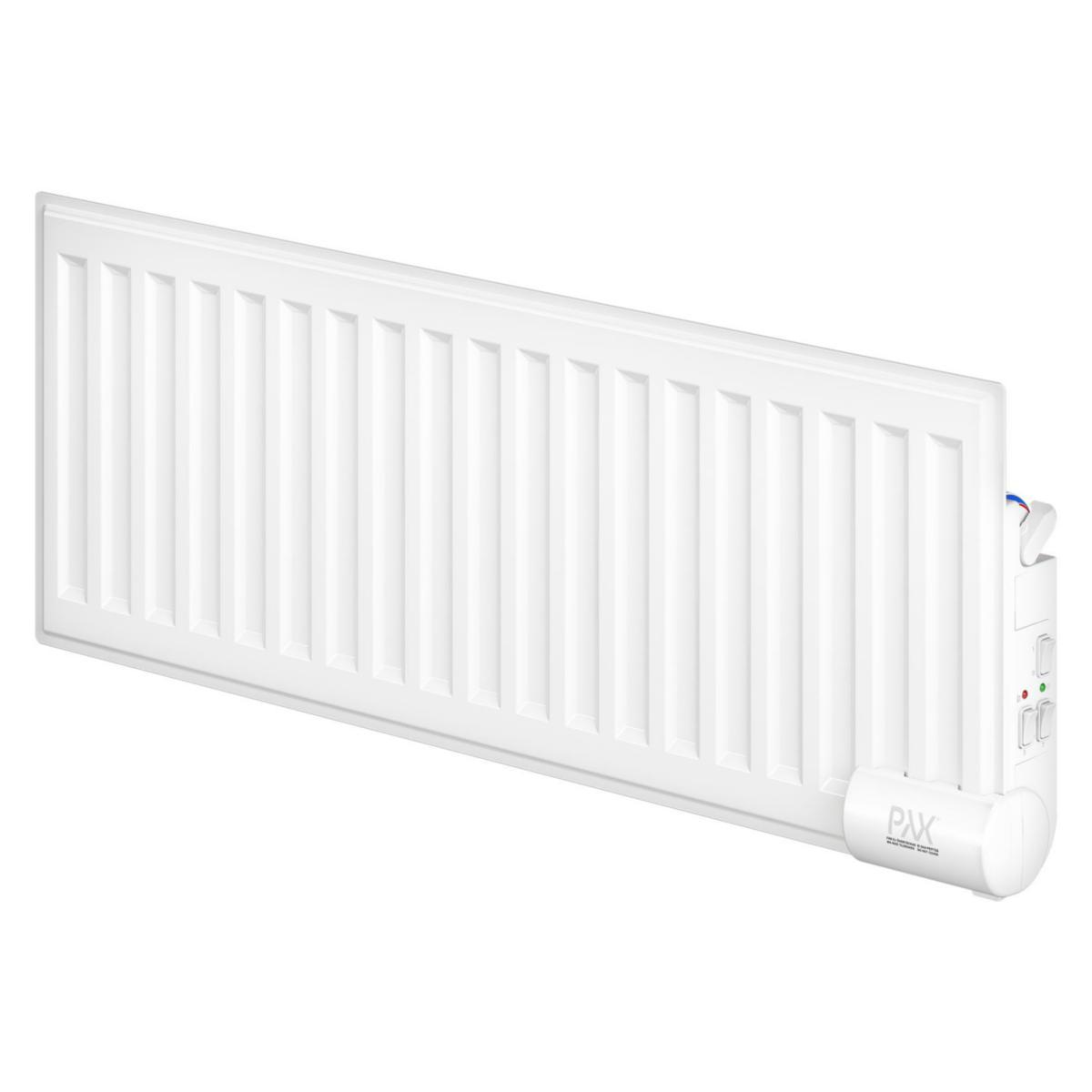

Radiator LUX, 230/400 V

RADIATOR 500W/230V PAX 11-308LYX/230V
Article number:
8557739
Suppl. article no:
6273-9





 to see price and stock
Normal temperature radiator with electronic thermostat and energy saving function through temperature-reduction automation. On and off function. Wall brackets and wall box for electrical connection are included. Splash proof design, approved for mounting in wet areas.

Prepared for maximum temperature limitation (max 23 ° C in room) and remote controlled external temperature control. Can switch over to low-temperature version (max 60°C surface temperature). All components in the Pax 3000 series are recyclable.
  • Article number:
    8557739
  • Suppl. article no:
    6273-9
  • Ean no:
    7391477627399
  • Material class
    QX1000
Technical data
  • Packagin Size: 1 ST/24 ST/24 ST
  • Type: 11-308LYX
  • Heating capacity: 500 W
  • Supply voltage: 230 V
  • Width: 800 mm
  • Height: 300 mm
  • Depth: 80 mm
  • Colour: White
  • Weight: 9 kg
  • Degree of protection (IP): IP24
  • With presence detector: No
  • With time switch clock: Yes
  • Model: Standard
  • Mounting method: Wall model
  • Protection class according to IEC 61140: I
  • Digital indication: No
  • Consumption indication: No
  • Position control panel: Side
  • Mounting direction: Horizontal
  • Material heating element: Steel
  • With decorative finish: No
  • Open window detection: No
  • Suitable for bus connection: No
  • Adaptive (self-learning): No
  • Number of supported pilot wire commands: None
  • Operation by app: No
  • Power control: Other
  • Frequency supply voltage: 50 Hz
  • Material front: Steel
  • Frost protection circuit: Yes
  • Air exhaust: Top/front
  • Suitable for wireless remote control: No
  • With remote control: No
  • Oil-/fluid-filled: Yes
  • Programmable: Yes
  • With overheating protection: Yes
  • Electrical connection: Other
  • Length connection cord: 0.75 m
  • REACH Date: 2021-09-10
  • REACH Information obligation: No
