LVI
Connection cable Kit LVI
LVI CABLE KIT WITH PLUG
Article number: Suppl. article no:
8500167
AZ01MM0000000100
to see price and stock

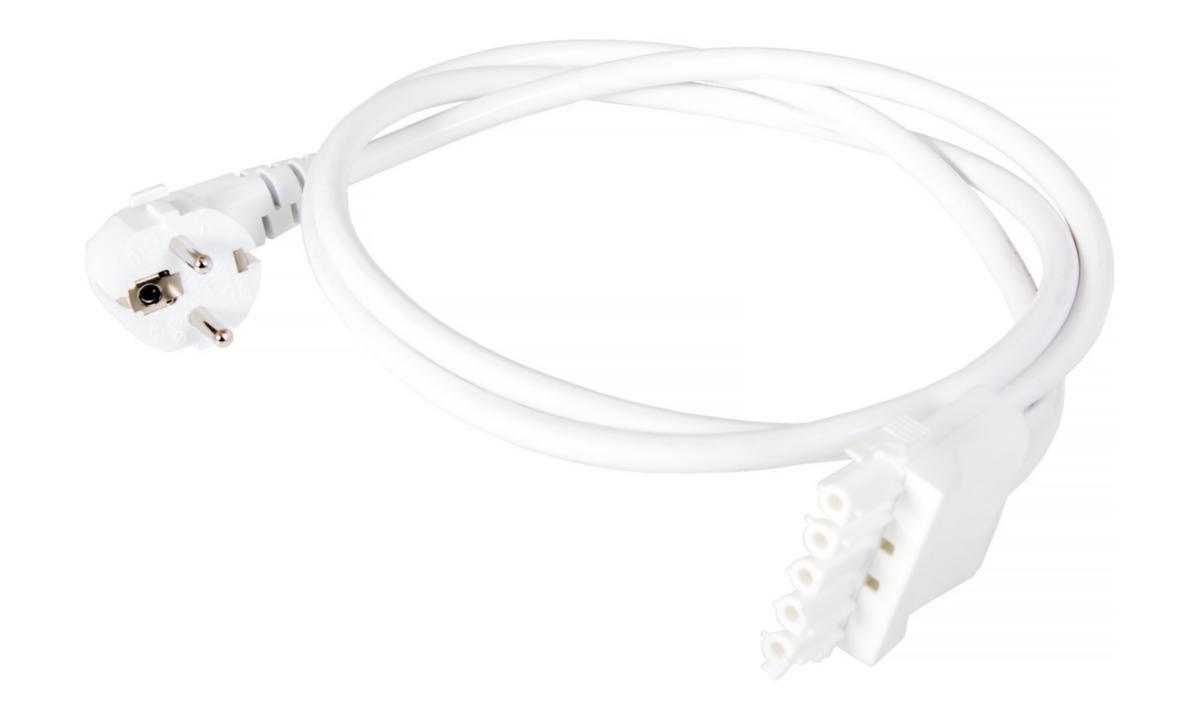

Connection cable for connection of LVI 230 V standard electric radiator to wall socket with plug. Length of 1.2 m for connection of LVI standard electric radiator to wall socket with plug. Fits LVI radiators Yali Digital / Parada / Ramo / Comfort which has a supply voltage of 230 V. The central temperature reduction option and slave coupling of the radiators is not possible with this accessory.
- Article number: 8500167
- Suppl. article no: AZ01MM0000000100
- Ean no: 6418569525188
- Material class QX0600
Technical data
- Number of cores: 3
- Nominal cross section conductor: 1.5 mm²
- Length: 1.2 m
- System-oriented connector system: Yes
- Material outer sheath: Polyvinyl chloride (PVC)
- Colour outer sheath: White
- Outer diameter approximate: 8 mm
- Connection 1: Socket outlet with protective contact (SCHUKO), right-angled
- Connection 2: Other
- Frequency: 50 Hz
- Degree of protection (IP): IP20
- Nominal voltage: 250 V
- Nominal current: 16 A
- Oil resistant according to EN IEC 60811-404: No
- Spiralized cable: No
