Frico

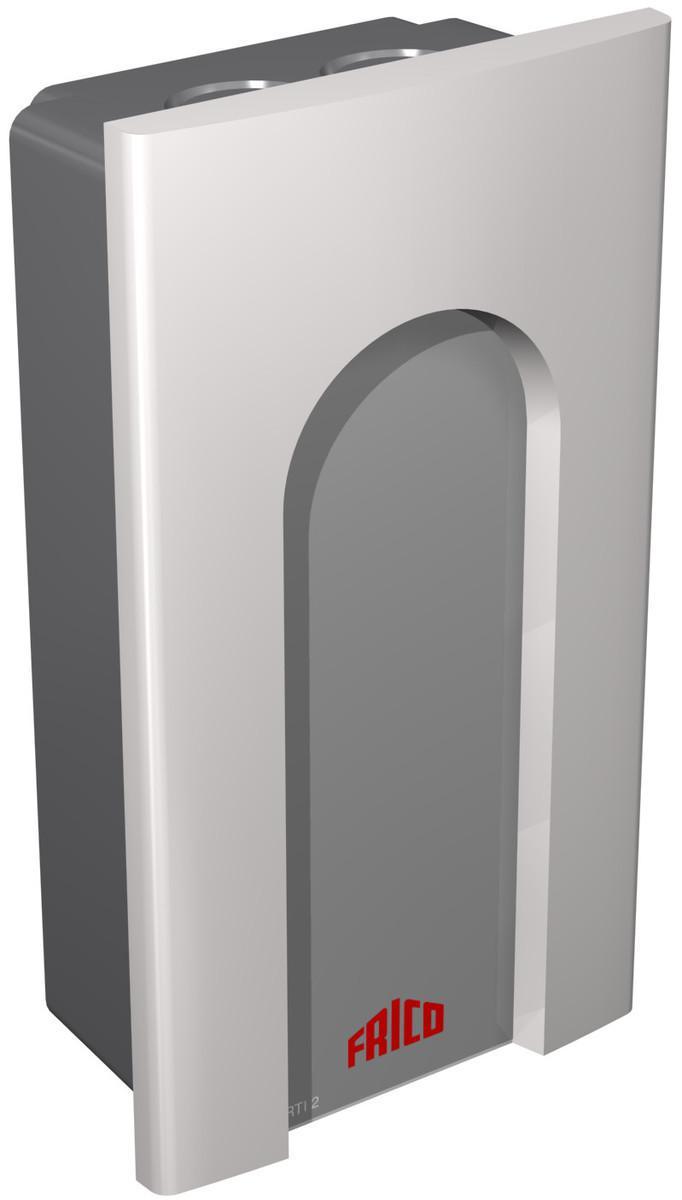

Processor controlled 2-step electronic thermostat, RTI2
THERMOSTATS RTI2 INTERNAL KNOB
Article number: Suppl. article no:
8581144
RTI2
to see price and stock
Processor controlled 2-step thermostat for room heating/cooling with concealed or visible knob. Adjustable temperature difference between modes (1-10 degrees). Setback function via external timer switch (1-10 degrees). External sensor (RTS01) is available as an accessory. High enclosure class (IP44). CE marked
- Article number: 8581144
- Suppl. article no: RTI2
- Ean no: 7393410011678
- Material class QX200B
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- Operation: Turn
- Colour: Other
- Model: On/Off
- Sensor/feeler type: Resistance sensor
- Type of power supply: 230 V AC
- Differential value: 1-10 K
- Temperature readable: No
- Adjustable differential: Yes
- With display: No
- With receiver: No
- External sensor: No
- Thermal feedback: None
- Control characteristic: P
- Suitable for heating: Yes
- Width: 87 mm
- Height: 155 mm
- Depth: 43 mm
- Number of heater outputs: 2
- Number of cooler outputs: 2
- Explosion-proof: No
- Max. contact load: 10 A
- Max. contact voltage: 400 V
- With sound indicator: No
- With tap water circuit: No
- REACH Date: 2021-07-20
- Type: RTI2 Electronic
- REACH Information obligation: No
