Pax

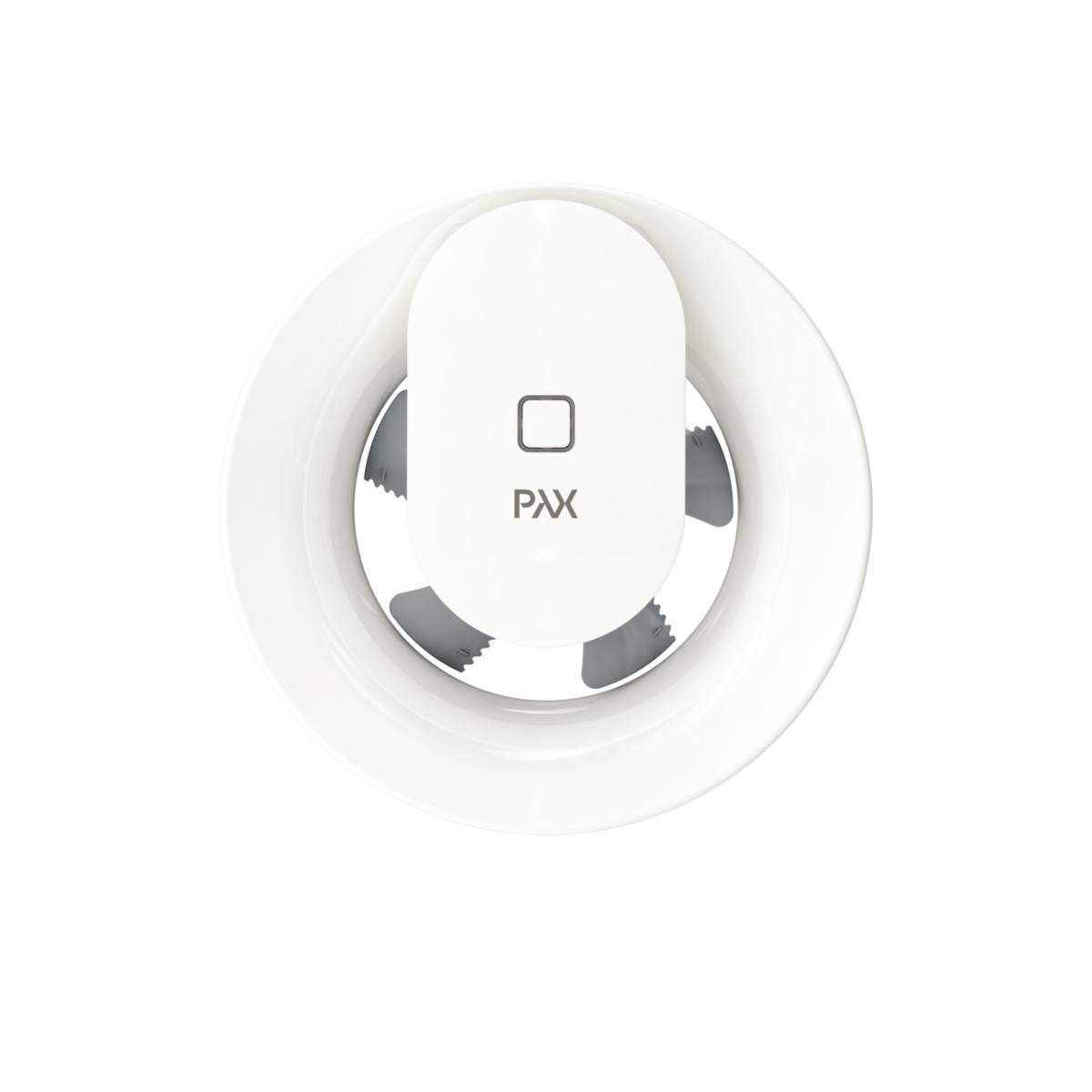

Bathroom fan Levante 40

Bathroom fan Levante 40 0
Article number:
9302620
Suppl. article no:
1546-1





 to see price and stock
Pax Levante 40 is easy to install and ready to use without the need for any settings. The fan has the following automatic functions: - It works continuously with a basic flow of approx. 30 m3 / h. Possibility to deselect the basic flow is available. - The flow increases when exposed to light or a shadow change when someone moves in the room, to about 60 m3 / h for 15 minutes. - If the humidity rises quickly during a shower, for example, the fan goes up to a maximum flow of about 110 m3 / h. When the moisture is ventilated away, the fan returns to the basic flow of approx. 30 m3 / h. These functions mean that a healthy air circulation and a better indoor climate in the house are constantly created. Experience and smart technology The Pax Levante models are developed so that you can easily find a fan that can improve ventilation in your particular indoor environment. Levante is excellent as a reinforcement of ventilation in houses where the natural draft is not always enough. But also as a supplementary exhaust air flow, in houses where an existing mechanical exhaust air system may sometimes need a temporary reinforcement (however via its own separate duct). Carefree installation and use Levante must always be installed in its own separate ventilation duct, with or without natural draft. The fan is adapted for duct size Ø100mm. When mounting against a duct that completely lacks natural draft, the fan can be combined with the accessory Pax Cold Ratchet Damper (in all other assemblies, cold race dampers should be avoided instead). The Levante fans are very easy to both assemble and use. The large connection space in the frame part of the fan facilitates the installer's job. Pax Levante fans are also extremely quiet, have high efficiency, minimal energy consumption and are very easy to clean. Good indoor environment If you choose Pax Levante as reinforcement of exhaust air ventilation for your house, you also choose to actively improve the entire house's indoor environment. A tip is that you (at the same time as the Levante fan is installed in, for example, the bathroom) also look over your supply air valves in, for example, the bedrooms, so that also fresh fresh outdoor air can easily get into your house. In this way, both you and the house will breathe fresher air. For more than just the home Pax Levante fans are developed for more than just the home. The built-in 12-volt input makes it possible to use the fan in, for example, boats and motorhomes. Safe - Safe - Environmentally friendly Pax Levante is manufactured in selected materials with a documented low environmental impact and is of course completely recyclable. For your safety, each individual Pax Levante fan undergoes a very thorough quality and safety test. To underline our quality thinking, we provide a full 5 year warranty for Pax Levante. - Quiet - Efficient, 110 m3 / h free-blowing - Easy to install and use - Energy efficient, 4 watts - Separate 12-volt input - Environmentally friendly, completely recyclable - Safe - every single fan quality and safety tested - Developed and manufactured in Sweden - 5 year warranty
  • Article number:
    9302620
  • Suppl. article no:
    1546-1
  • Ean no:
    7391477154611
  • Replaces art.nbr:
    9302567
  • Material class
    QX7600
Technical data
  • Packagin Size: 1 PCS/4 PCS/240 PCS
  • Volume flow: 110 m³/h
  • Rotational speed: 2400 1/min
  • Colour: White
  • Width: 177 mm
  • Height: 177 mm
  • Depth: 81 mm
  • Assembly arrangement: Other
  • Medium temperature: 0-50 °C
  • Mounting method: Surface mounted
  • Direction: Axial
  • Rated voltage: 230 V
  • Nominal width: 177 mm
  • Mains frequency: 50 Hz
  • Degree of protection (IP): IP44
  • Housing material: Plastic
  • With connection set: No
  • Noise emission: 20 dB(A) re 1 pW
  • REACH Date: 2022-01-25
  • REACH Information obligation: No
