Schneider Electric
Data cable Actassi double jacketed (outdoors) C6 U/UTP Eca, Schneider
CAT6 U/UTP OUTDOOR BLACK CUT (5*) 306220005-KAP
Article number: Suppl. article no:
4933480
306220005-KAP
to see price and stock

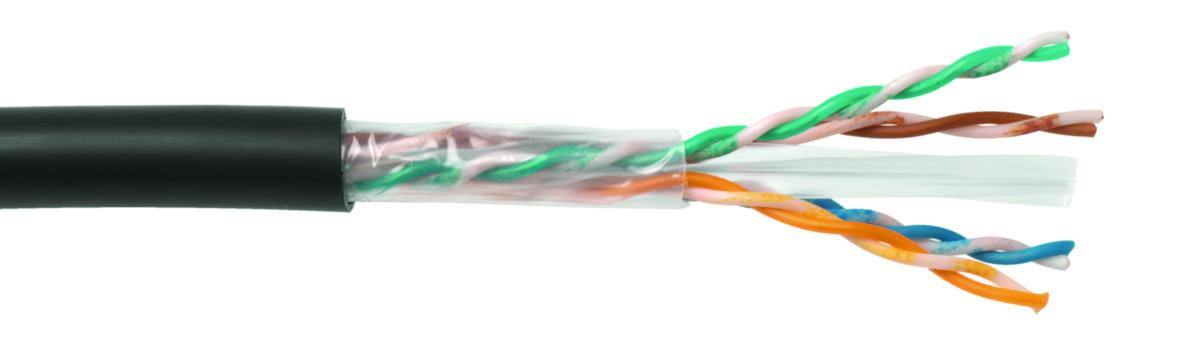

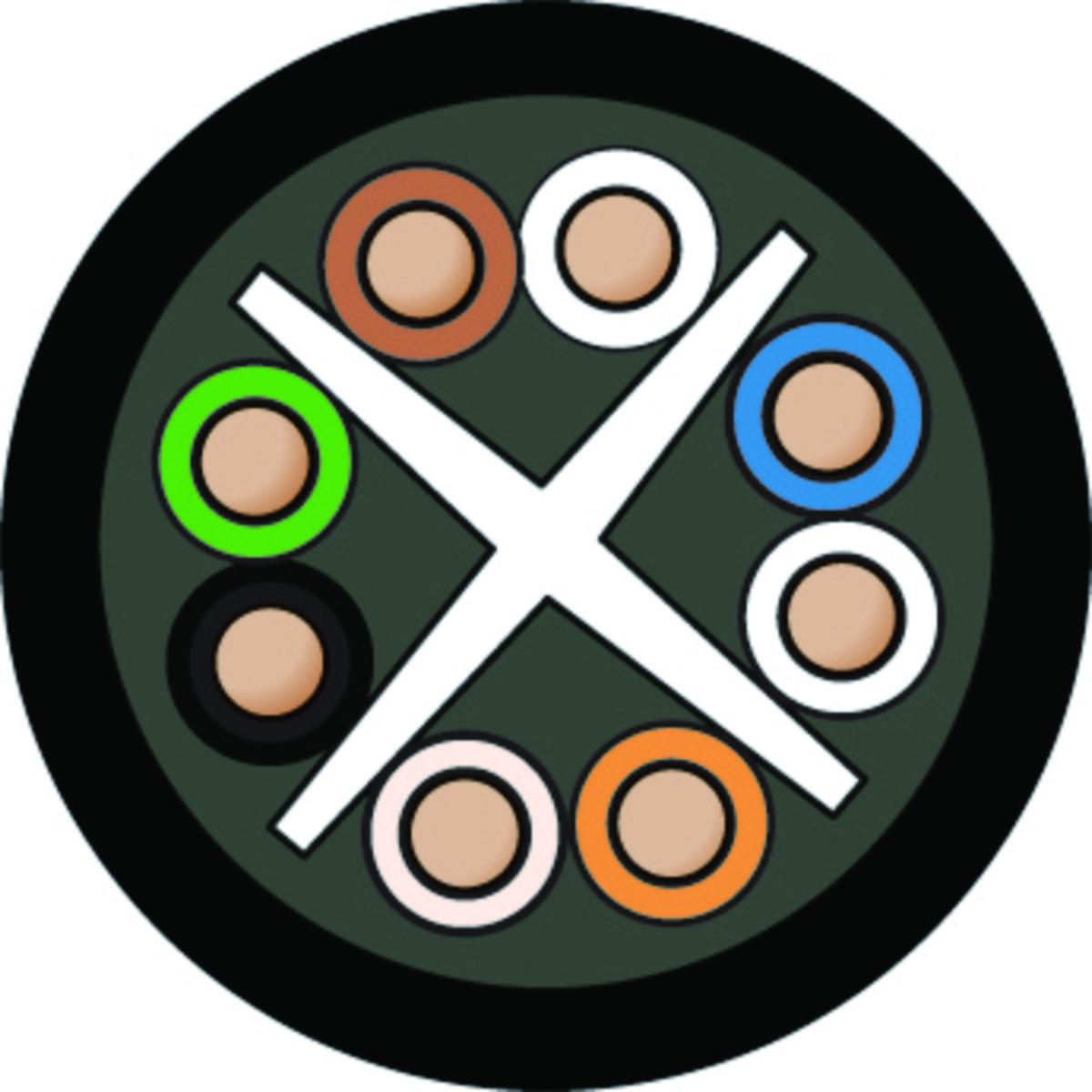

Unshielded Kat6 U / UTP data cable 4xAWG24 (250MHz) for outdoor use. The cable is double sheathed, the inner sheath is made of PE and the outer sheath is made of black halogen-free material Eca s2 d2 a2.
- Article number: 4933480
- Suppl. article no: 306220005-KAP
- Material class QR2400
Technical data
- Packagin Size: 1 M/500 M
- Dimension conductor x area: 1xU/UTP6
- Number of cores: 4
- Nominal cross section conductor: 0.21 mm²
- Number of stranding elements: 8
- Diameter conductor: 0.52 mm
- Reaction-to-fire according to EN 13501-6: Class: Eca
- Category: 6
- Screen over stranding: None
- Stranding element: Pairs
- Screen over stranding element: None
- Colour outer sheath: Black
- Conductor category: Class 1 = solid
- Outer diameter approx.: 7.7 mm
- AWG size: 24
- Permitted cable outer temperature after assembling without vibration: 0-60 °C
- Permitted cable outer temperature during assembling/handling: -20-60 °C
- Core identification: Colour
- Conductor surface: Bare
- Material core insulation: Other
- Material outer sheath: Other
- Min. permitted bending radius, moving application/free movement: 8 mm
- Min. permitted bending radius, stationary application/permanent installation: 4 mm
- NVP value: 68 %
- Specification core insulation: Polyethylene (PE)
- REACH Date: 2022-07-20
- Product series: Actassi
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
