Eurolan
Data cable C6A UTP white LSZH Dca, Eurolan
C6A UTP WHITE LSZH
Article number: Suppl. article no:
4902000
19C-UA-DCA-0
to see price and stock

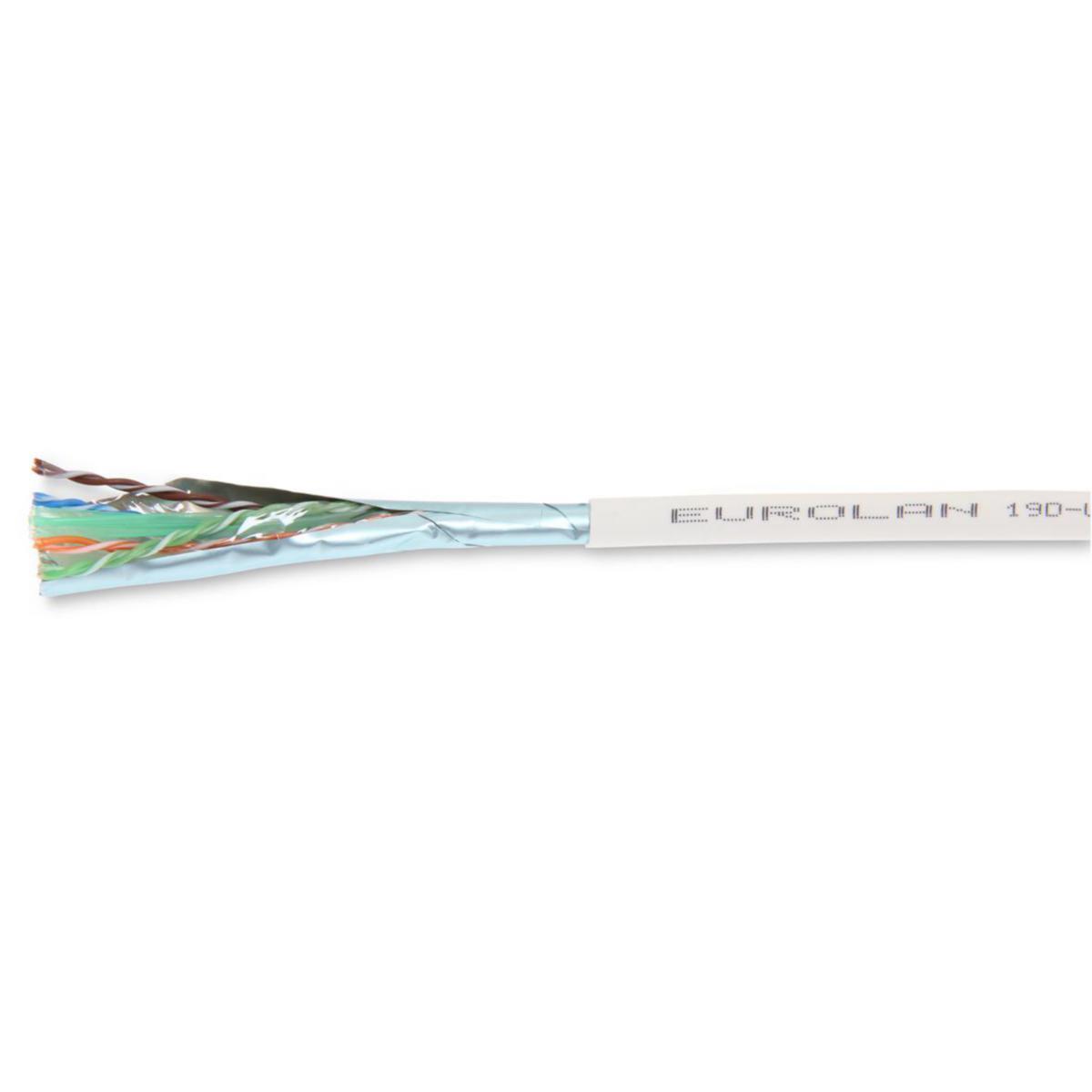

Eurolan C6a unshielded U/UTP Dca is a halogen-free distribution network cable. The cable has a longitudinal polyolefin plastic cross in the middle and an overlapping polyester foil over all pairs. That screen should not be connected in the jack. The cable is verified for high-speed applications up to 500 MHz (10 Gbit Ethernet). Meets the requirements according to EN 50173-1 Class EA, ISO/IEC 11801 and IEC 332-1.
- Article number: 4902000
- Suppl. article no: 19C-UA-DCA-0
- Ean no: 7333089014921
- Material class QR2600
Technical data
- Type: 19C-UA-DCA-0
- Number of cores: 8
- Number of stranding elements: 4
- Diameter conductor: 0.565 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Cable type: U/UTP
- Category: 6A (IEC)
- Screen over stranding: None
- Stranding element: No
- Screen over stranding element: None
- Cable geometry: Round
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: No
- Longitudinal water blocking cable: No
- Outer diameter approx.: 7.1 mm
- Armouring/reinforcement: None
- AWG size: 23
- Segregation class according to EN 50174-2: B
- Protective sheath: None
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature after assembling without vibration: -30-60 °C
- Permitted cable outer temperature during assembling/handling: 0-50 °C
- Halogen free according to EN IEC 60754-2: No
- Low smoke according to EN IEC 61034-2: No
- Core identification according to HD 308 S2: No
- Core identification: Colour
- Conductor surface: Bare
- Conductor material: Copper
- Material core insulation: Other
- Material outer sheath: Other
- Min. permitted bending radius, moving application/free movement: 58 mm
- Min. permitted bending radius, moving application with forced guidance: 29 mm
- Min. permitted bending radius, stationary application/permanent installation: 29 mm
- NVP value: 67 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Stranding: Other
- Suitable as computer data cable: Yes
- Suitable as signalling cable: Yes
- Suitable as telephone cable: Yes
- Certified for shipboard application: No
- Weight: 50 kg/km
- Number of sheath layers: 1
- Drain wire: No
- Cable width approx.: 7.1 mm
- Duplex: No
- Flame retardant according to IEC 60332-1-2: Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R): No
- Flame retardant according to IEC 60332-3-22 (Cat A): No
- Flame retardant according to IEC 60332-3-23 (Cat B): No
- Flame retardant according to IEC 60332-3-24 (Cat C): No
- Flame retardant according to IEC 60332-3-25 (Cat D): No
- Halogen free according to EN IEC 60754-1: Yes
- Halogen free according to EN IEC 60754-3: No
- Cable height approx.: 7.1 mm
- Characteristic impedance: 100 Ohm
- Suitable for use as security alarm cable: Yes
- Max. tensile strength during installation: 0.1 kN
- With rodent protection: No
- REACH Date: 2024-09-23
- REACH Information obligation: No
