Schneider Electric

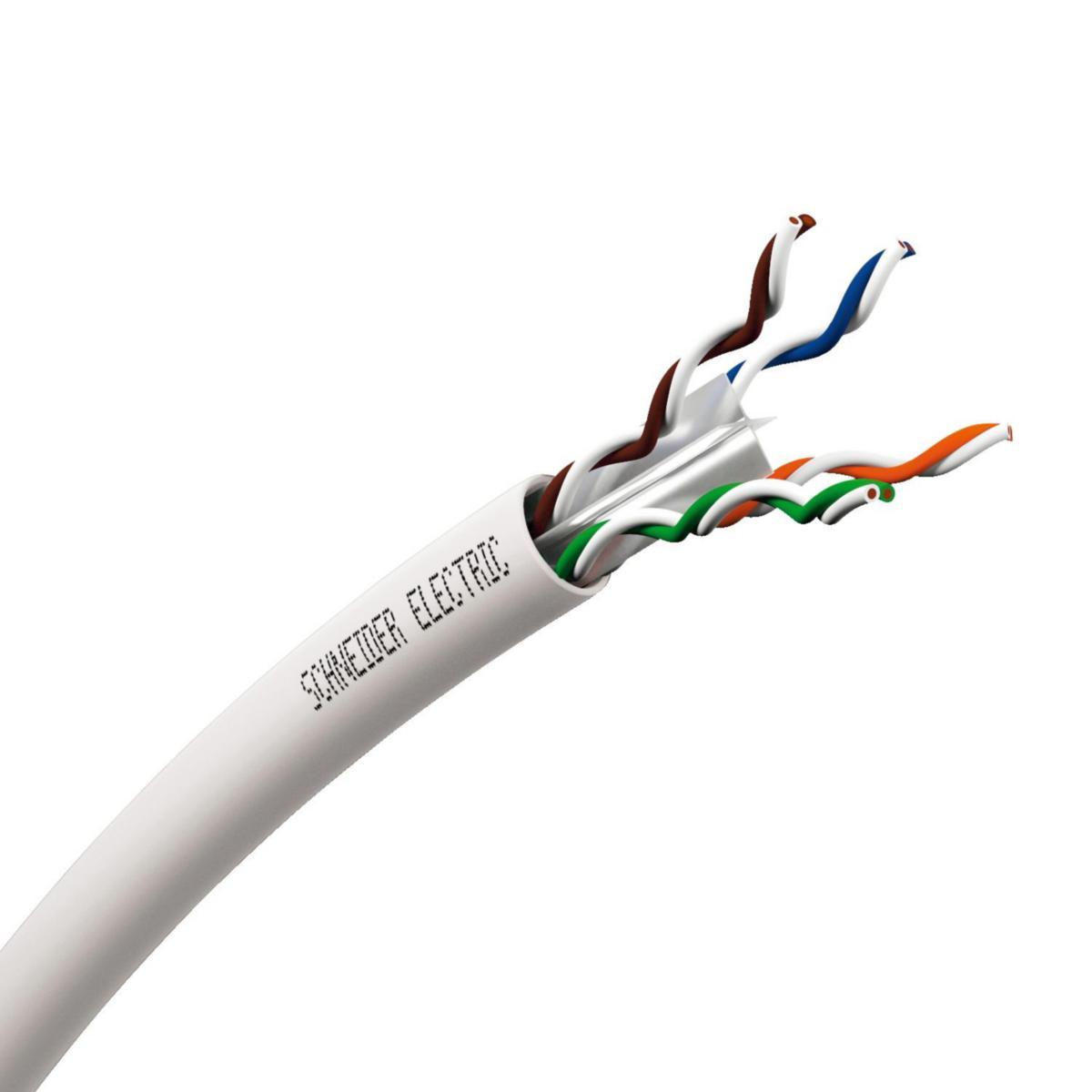

Data cable Actassi C6 U/UTP Dca, Schneider
CAT6 U/UTP 4P DCA WHITE B100 VDICD116018WHD
Article number: Suppl. article no:
4933492
VDICD116018WHD
to see price and stock
Unshielded Kat6 U / UTP data cable 4xAWG24 (250MHz) for indoor use. White halogen-free jacket with meter marking. Plastic cross for separating the pairs. Extra durable bending radius, 3x the diameter (normally 4x the diameter).
- Article number: 4933492
- Suppl. article no: VDICD116018WHD
- Ean no: 3606485467009
- Material class QR2450
Technical data
- Packagin Size: 100 M
- Dimension conductor x area: 1xU/UTP6
- Number of cores: 8
- Nominal cross section conductor: 0.23 mm²
- Number of stranding elements: 4
- Diameter conductor: 0.54 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Category: 6
- Screen over stranding: None
- Stranding element: Pairs
- Screen over stranding element: None
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: Yes
- Longitudinal water blocking cable: Yes
- Outer diameter approx.: 5.3 mm
- Armouring/reinforcement: None
- AWG size: 24
- Protective sheath: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature after assembling without vibration: 0-60 °C
- Permitted cable outer temperature during assembling/handling: -20-60 °C
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: Yes
- Core identification: Colour
- Conductor surface: Bare
- Material core insulation: Other
- Material outer sheath: Other
- Min. permitted bending radius, moving application/free movement: 22 mm
- Min. permitted bending radius, moving application with forced guidance: 22 mm
- Min. permitted bending radius, stationary application/permanent installation: 22 mm
- NVP value: 68 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- UV resistant: No
- Stranding: Bundle
- Product series: Actassi
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
- Insulation integrity according to IEC 60331: Yes
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
