Schneider Electric
Data cable Actassi C6A F/FTP Dca & Cca, Schneider
CAT6A F/FTP 4P DCA BLUE D500 VDICD64X218
Article number: Suppl. article no:
4933795
VDICD64X218
to see price and stock

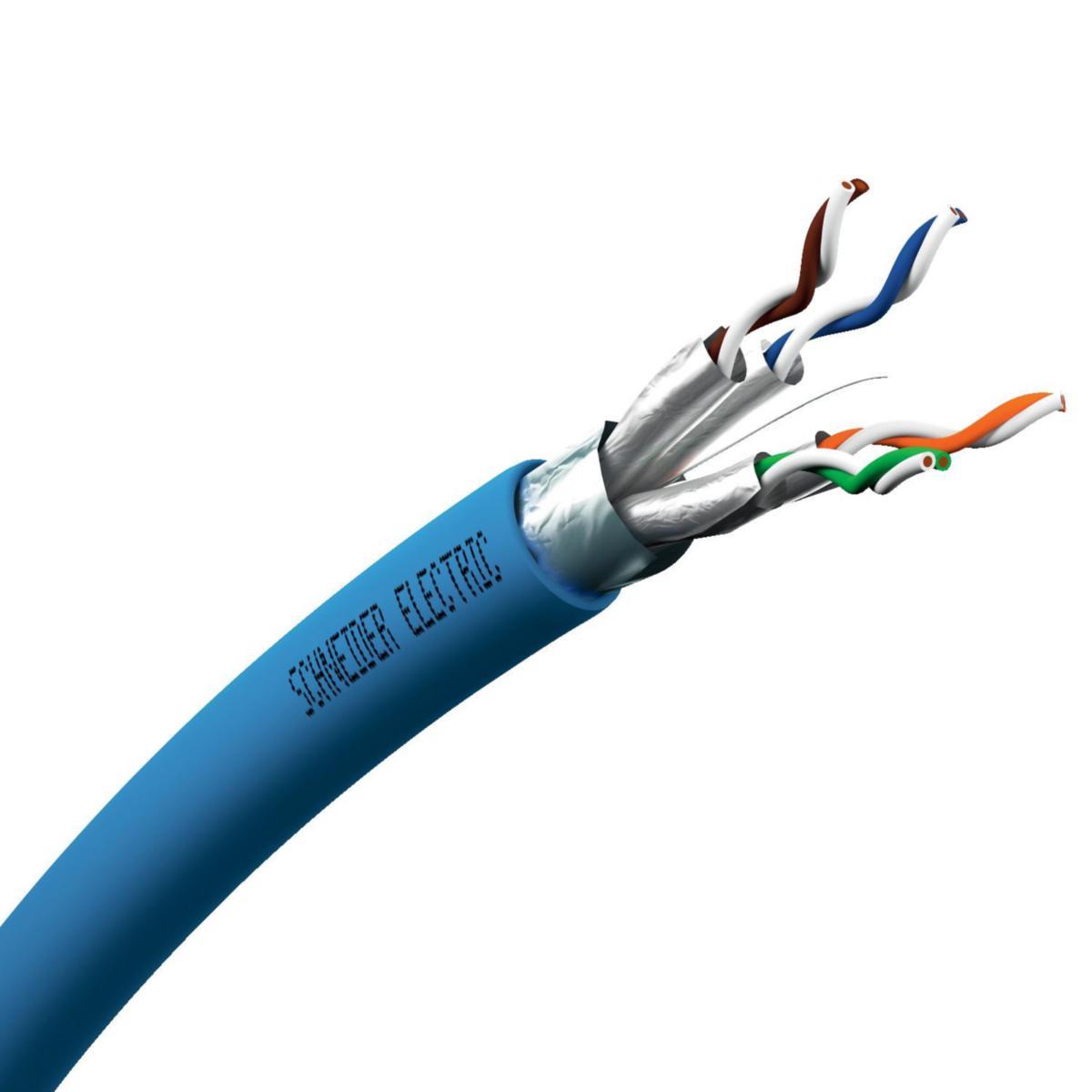

Shielded Kat6A F / FTP data cable 4xAWG23 (550MHz) for indoor use in distribution networks. The cable is delivered with a blue halogen-free outer sheath Dca s2d1a1 or Cca s1d1a1 and meter marking printed on the cable.
- Article number: 4933795
- Suppl. article no: VDICD64X218
- Ean no: 3606481320292
- Material class QR2450
Technical data
- Packagin Size: 500 M
- Dimension conductor x area: 1xF/FTP6
- Number of cores: 8
- Nominal cross section conductor: 0.25 mm²
- Number of stranding elements: 4
- Diameter conductor: 0.56 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Category: 6A (IEC)
- Screen over stranding: Foil
- Stranding element: Pairs
- Screen over stranding element: Foil
- Colour outer sheath: Blue
- Conductor category: Class 1 = solid
- Outer diameter approx.: 7 mm
- AWG size: 23
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature after assembling without vibration: 0-60 °C
- Permitted cable outer temperature during assembling/handling: -20-60 °C
- Halogen free according to EN IEC 60754-2: Yes
- Core identification: Colour
- Conductor surface: Bare
- Material core insulation: Other
- Material outer sheath: Other
- NVP value: 80 %
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- REACH Date: 2022-07-20
- Product series: Actassi
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
- Low smoke (according to EN 61034-2): Yes
