Eurolan

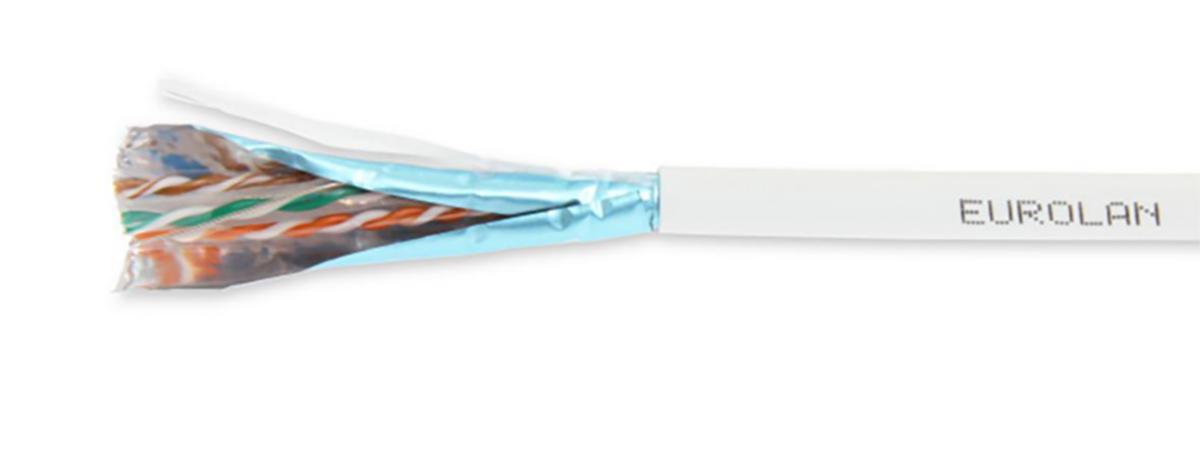

Data cable C6 F / UTP VIT LSZH Dca
C6 F/UTP WHITE LSZH DCA B305 19D-F6-22WT-B305
Article number: Suppl. article no:
4903363
19D-F6-22WT-B305
to see price and stock
Data cable C6 shielded F / UTP Dca is a halogen-free distribution network cable. The cable is verified for high-speed applications up to 250 MHz (1Gbit Ethernet). Meets the requirements according to EN 50173-1 Class E, ISO / IEC 11801 2nd ed and IEC 61156-5.
.
.
- Article number: 4903363
- Suppl. article no: 19D-F6-22WT-B305
- Ean no: 7333089010077
- Material class QR2580
Technical data
- Packagin Size: 305 M
- Number of cores: 8
- Number of stranding elements: 4
- Diameter conductor: 0.57 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Category: 6
- Screen over stranding: Foil
- Stranding element: Quad
- Screen over stranding element: None
- Cable geometry: Round
- Colour outer sheath: White
- Conductor category: Class 1 = solid
- Suitable for underground installation: No
- Radial water blocking cable: No
- Longitudinal water blocking cable: No
- Outer diameter approx.: 7.4 mm
- Armouring/reinforcement: None
- AWG size: 23
- Protective sheath: None
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Permitted cable outer temperature after assembling without vibration: -40-60 °C
- Permitted cable outer temperature during assembling/handling: 0-50 °C
- Halogen free according to EN IEC 60754-2: Yes
- Low smoke according to EN IEC 61034-2: No
- Core identification according to HD 308 S2: No
- Core identification: Colour
- Conductor surface: Bare
- Conductor material: Copper
- Material core insulation: Other
- Material outer sheath: Other
- Min. permitted bending radius, moving application/free movement: 30 mm
- Min. permitted bending radius, moving application with forced guidance: 30 mm
- Min. permitted bending radius, stationary application/permanent installation: 30 mm
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Specification material outer sheath: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- UV resistant: No
- Suitable as computer data cable: Yes
- Certified for shipboard application: No
- Weight: 54 kg/km
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
- Oil resistant (according to IEC 60811-404): No
