Tele/signal cable halogen-free ELQRB Dcas2d2a1, a-collection

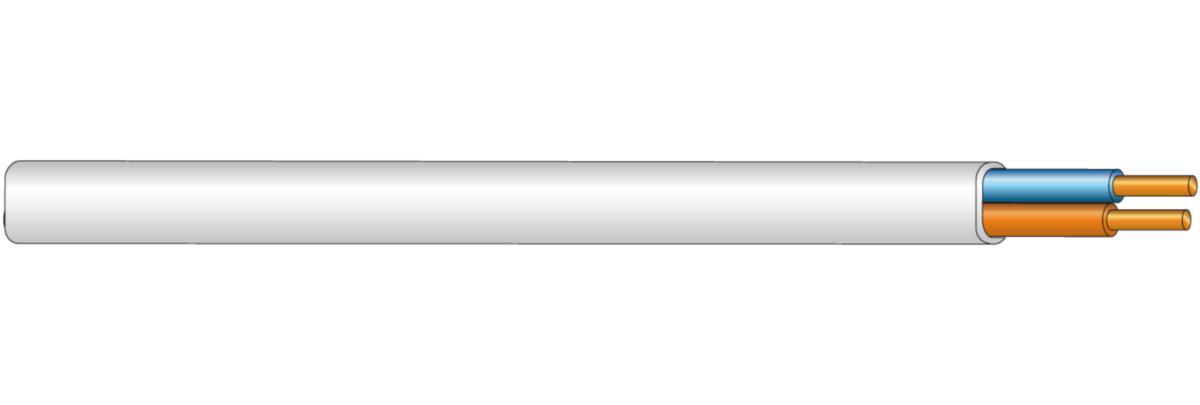

ELQRB 2X1.0 WHITE (*5)
Article number: Suppl. article no:
4800200
TEL3102011/2
to see price and stock
ELQRB is used as the signal cable in various measuring and control equipment.
Intended for signalling installations in indoor and outdoor use but not in ground. polythene insulated, with halogen-free flame-protected sheath.
Intended for signalling installations in indoor and outdoor use but not in ground. polythene insulated, with halogen-free flame-protected sheath.
- Article number: 4800200
- Suppl. article no: TEL3102011/2
- Ean no: 7340080740490
- Material class QR0700
Technical data
- Cable type: ELQRB
- Dimension conductor x diameter: 2x1,0 mm
- Diameter conductor: 1.0 mm
- Cable geometry: Flat
- Outer diameter approx.: 4 mm
- Colour outer sheath: White
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Conductor material: Copper
- Specification material outer sheath: Polyethylene (PE)
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Screen over stranding element: Other
- Screen over stranding: Other
- Conductor category: Class 1 = solid
- Material outer sheath: Polyolefin
- Core identification: Colour
- Stranding element: No
- Material core insulation: Polyolefin
- Stranding: Layers
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Permitted cable outer temperature during assembling/handling: -15-40 °C
- Number of cores: 2
- Number of stranding elements: 0
- AWG size: 18
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Nominal cross section conductor: 0.78 mm²
- Conductor surface: Bare
- Suitable for underground installation: Yes
- Oil resistant according to EN IEC 60811-404: No
- Low smoke according to EN IEC 61034-2: Yes
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- UV resistant: Yes
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
- Insulation integrity according to IEC 60331: No
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
