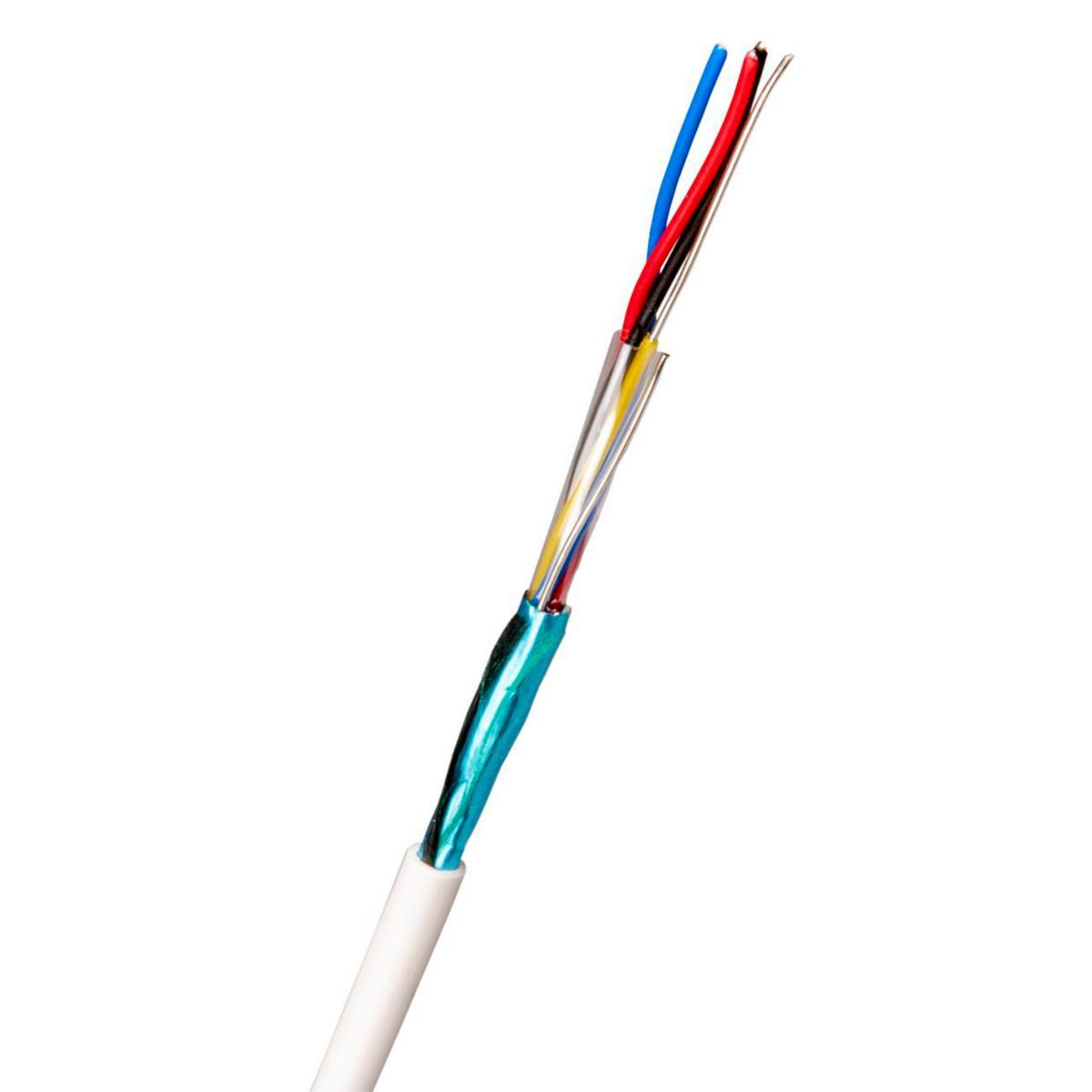

Tele/signal cable halogen-free PTS-HF white Dcas2d2a2, Nexans
PTS-HF 1X4X0,6 WHITE (*5) 37152071-902-00
Article number: Suppl. article no:
4838120
37152071-902-00
to see price and stock
Foil shielded, twisted pair telecommunication and signal cable with halogen-free insulation and sheath. Used in telecommunications and signaling systems where shielded cable is required. The cable is laid indoors in a fixed installation and in a pipe. Fire requirements according to CPR class Dcas2d2a2.
- Article number: 4838120
- Suppl. article no: 37152071-902-00
- Ean no: 7330000155152
- Material class QR0600
Technical data
- Cable type: PTS-HF
- Dimension conductor x diameter: 1x4x0,6 mm
- Diameter conductor: 0.6 mm
- Cable geometry: Round
- Outer diameter approximate: 4.1 mm
- Colour outer sheath: White
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Conductor material: Copper
- Specification material outer sheath: Other
- Core identification according to HD 308 S2: Yes
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Screen over stranding element: None
- Screen over stranding: Foil
- Conductor category: Class 1 = solid
- Material outer sheath: Polyolefin
- Core identification: Colour
- Stranding element: Other
- Material core insulation: Polytetrafluoroethylene (PTFE)
- Stranding: Layers
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Number of cores: 4
- Number of stranding elements: 1
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Nominal cross section conductor: 0.28 mm²
- Conductor surface: Tinned
- Suitable for underground installation: No
- Min. permitted bending radius, stationary application/permanent installation: 33 mm
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- UV resistant: No
- Certified for shipboard application: No
- Suitable as computer data cable: No
- Suitable as signalling cable: Yes
- Suitable as telephone cable: No
- Weight: 27 kg/km
- Number of sheath layers: 1
- Drain wire: Yes
- Suitable for use as security alarm cable: Yes
- With rodent protection: No
- With rip cord: Yes
- Nominal voltage U: 75 V
- REACH Date: 2021-06-14
- GWP-tot (A1-A3): 7,2167 kgCO2e/M
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
- Insulation integrity according to IEC 60331: No
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
