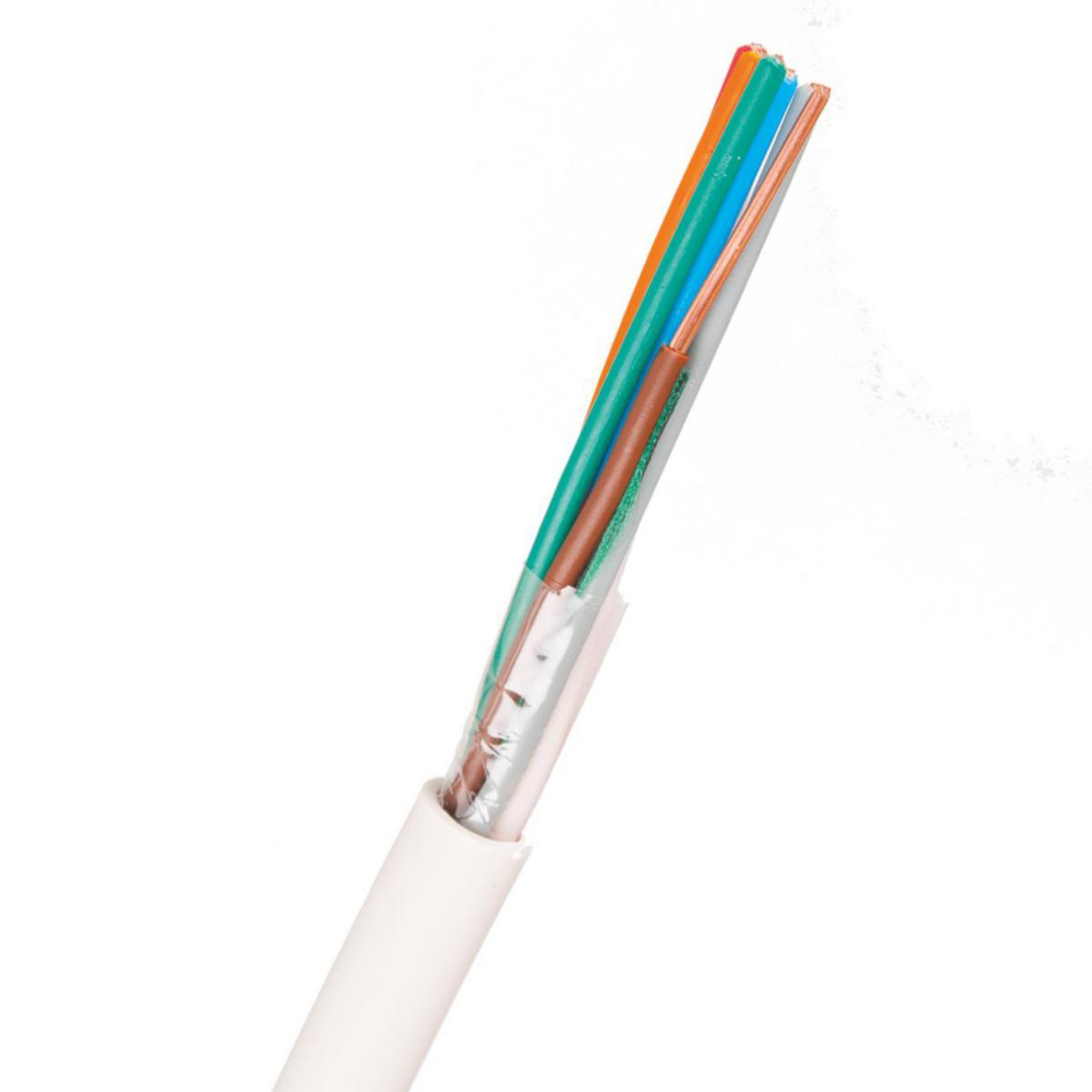

Tele/signal cable halogen-free EQQRB Easy white Dcas2d2a2, Nexans
EQQRB EASY 7X1,0 WHITE B500 (*0)60404) 18440571-802-05
Article number: Suppl. article no:
4836885
18440571-802-05
to see price and stock
Halogen-free flame-retardant signal cable. EQQRB is used as a signal cable in various control and regulation technical systems, including fire alarm systems. It can be placed indoors or outdoors. Meets fire requirements according to CPR class Dcas2d2a2.
- Article number: 4836885
- Suppl. article no: 18440571-802-05
- Ean no: 7330000079885
- Material class QR0650
Technical data
- Packagin Size: 500 M/6000 M
- Cable type: EQQRB
- Dimension conductor x diameter: 7x1,0 mm
- Diameter conductor: 1 mm
- Cable geometry: Round
- Outer diameter approximate: 7 mm
- Colour outer sheath: White
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Conductor material: Copper
- Specification material outer sheath: Other
- Core identification according to HD 308 S2: Yes
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Screen over stranding element: None
- Screen over stranding: None
- Conductor category: Class 1 = solid
- Material outer sheath: Polyolefin
- Core identification: Colour
- Stranding element: No
- Material core insulation: Polyolefin
- Stranding: Layers
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Number of cores: 7
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Conductor surface: Bare
- Suitable for underground installation: Yes
- Min. permitted bending radius, stationary application/permanent installation: 56 mm
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- UV resistant: No
- Certified for shipboard application: No
- Suitable as computer data cable: No
- Suitable as signalling cable: Yes
- Suitable as telephone cable: No
- Approved type of underground installation: Underground installation tube
- Weight: 79 kg/km
- REACH Date: 2021-06-14
- GWP-tot (A1-A3): 0,2263 kgCO2e/M
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
- Insulation integrity according to IEC 60331: No
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
