LED cable Twisted RQ 2x0,75 Dca-s2d2a1, a-collection
LED CABLE RQ 2X0.75 TWIST A-COLLECTION
Article number: Suppl. article no:
4891400
TFL700001/300X
to see price and stock

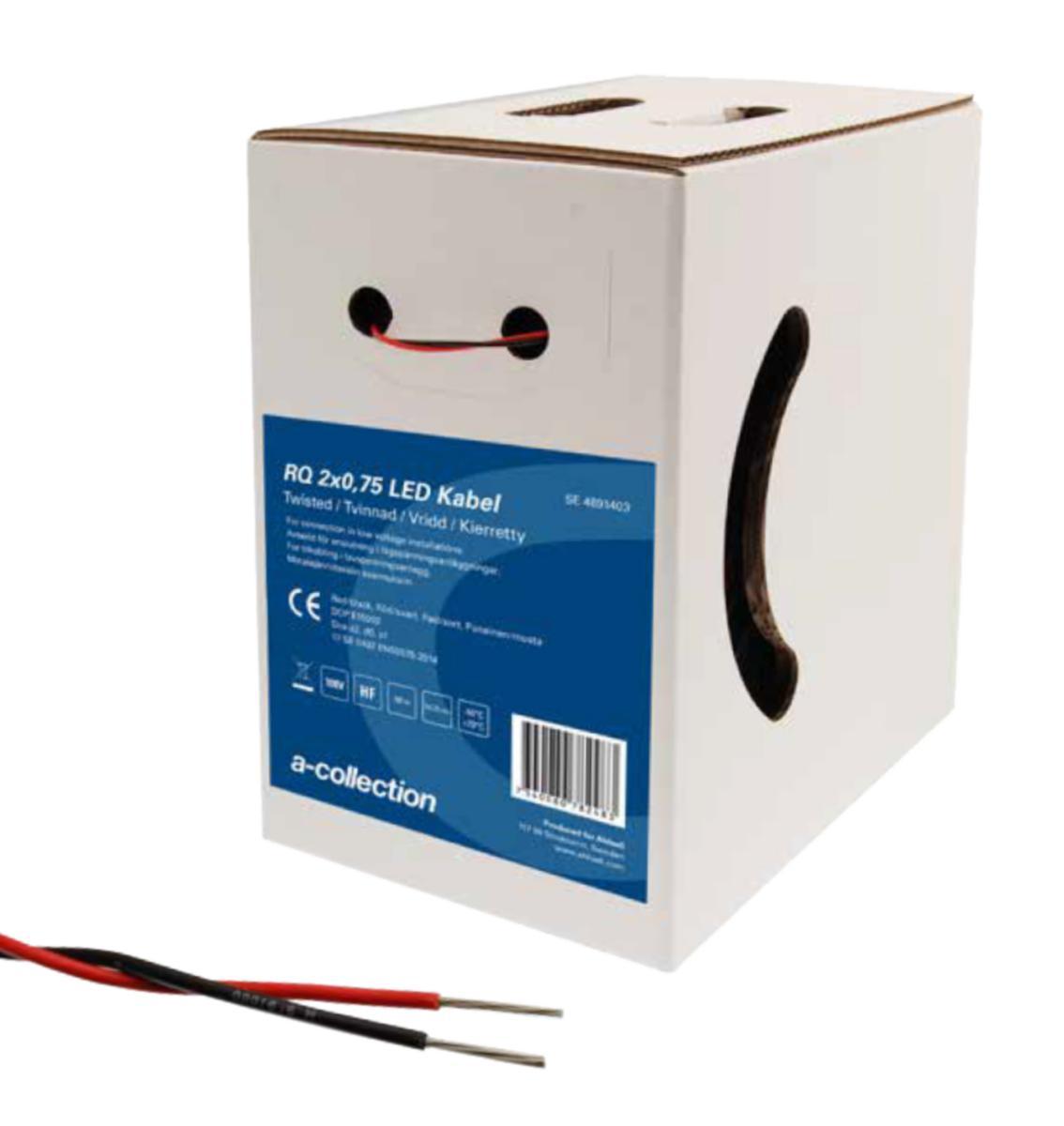

Twisted ROHS-approved RQ which is delivered in a flexible box with meter-marked cable. Coupling wire with uncoated multi-wire copper conductor, insulated with flame-retardant halogen-free polymer, black / red. Twisted pair for attenuation of induced currents from electric interference fields that can give rise to gleaming LED lighting. The cable is primarily intended for connection of LED luminaires in low-voltage systems. Placed in pipes during installation in buildings. Fire classification EN 50575 Dca -s2, d2, a1
- Article number: 4891400
- Suppl. article no: TFL700001/300X
- Ean no: 7333123909879
- Material class QR0700
Technical data
- Cable type: RQ TWIST
- Dimension conductor x area: 2x0,75 mm²
- Outer diameter approximate: 4.2 mm
- Colour outer sheath: Multi-coloured
- Nominal voltage U: 100 V
- Armouring/reinforcement: None
- Screen: No
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Permitted cable outer temperature after assembling without vibration: -40 - +70 °C
- Conductor category: Class 5 = flexible
- Conductor material: Copper
- Core identification: Colour
- Max. permitted conductor temperature: 70 °C
- Nominal cross section conductor: 0.75 mm²
- Number of cores: 2
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
