Vanderbilt
RQAQBR 2x1.5 + 2x2x0.5, Vanderbilt
RQAQBR 2X1.5X2X2X0.5 T100 KOMBI2-HF100 (FRP 100M)
Article number: Suppl. article no:
4898302
V54592-Z160-A100
to see price and stock

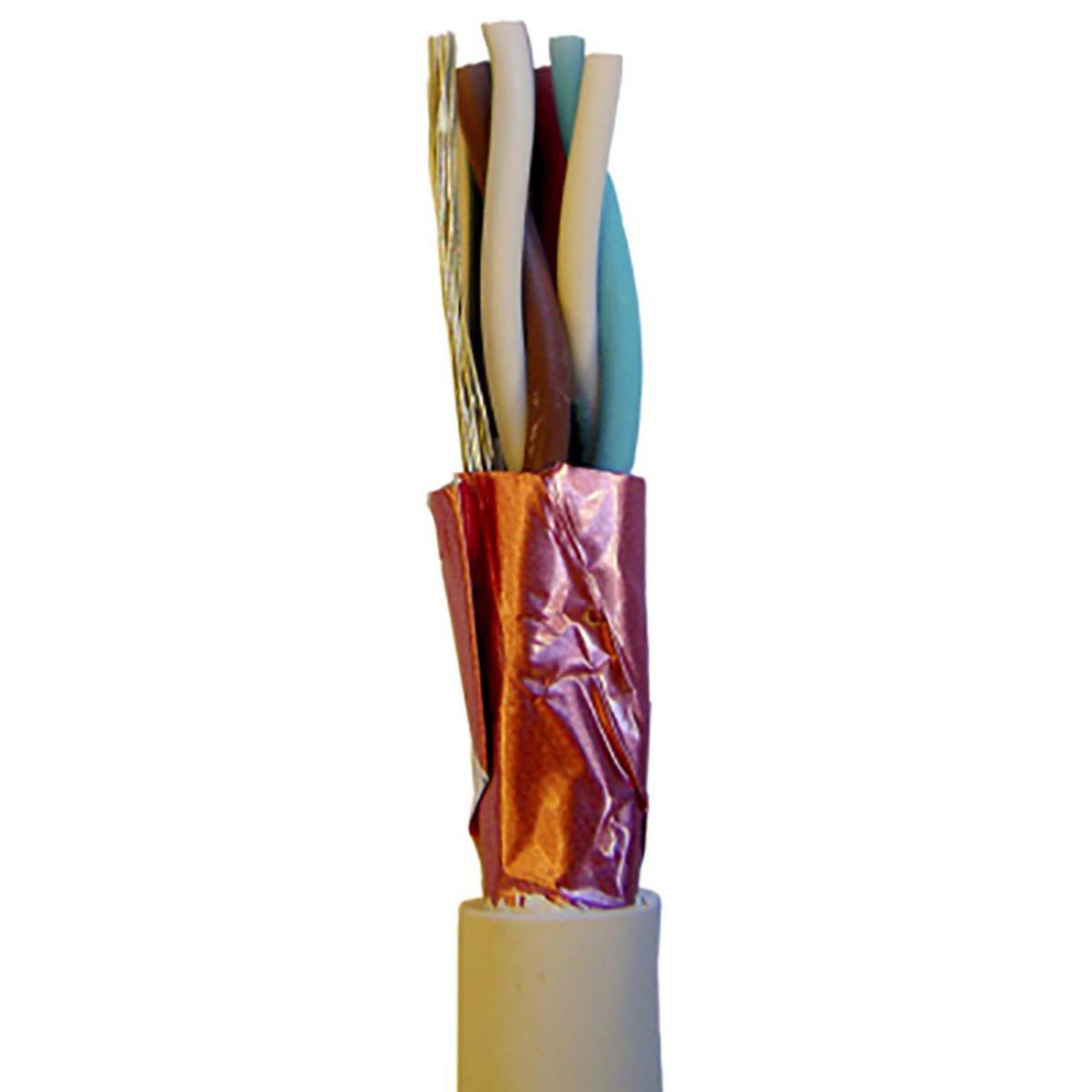

Special cable for Bewator Entro that facilitates installations, where both data communication RS485 and power supply are needed. Is equipped with an extra pair for communication. Twisted pair with common tinned copper screen. 12x1.5 mm² + 2x2x0.5 CY mm² hose-sprayed type for easy stripping. Halogen-free. Outer diameter: 10 mm. Meets fire requirements according to CPR class Dcas2d2a1.
- Article number: 4898302
- Suppl. article no: V54592-Z160-A100
- Replaces art.nbr: 4898022
- Material class QS220B
Technical data
- Diameter: 10 mm
- Fibre optic cable: No
- Data and communication cable: Yes
- Energy cable: Yes
- Coaxial cable: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Number of cores: 6
