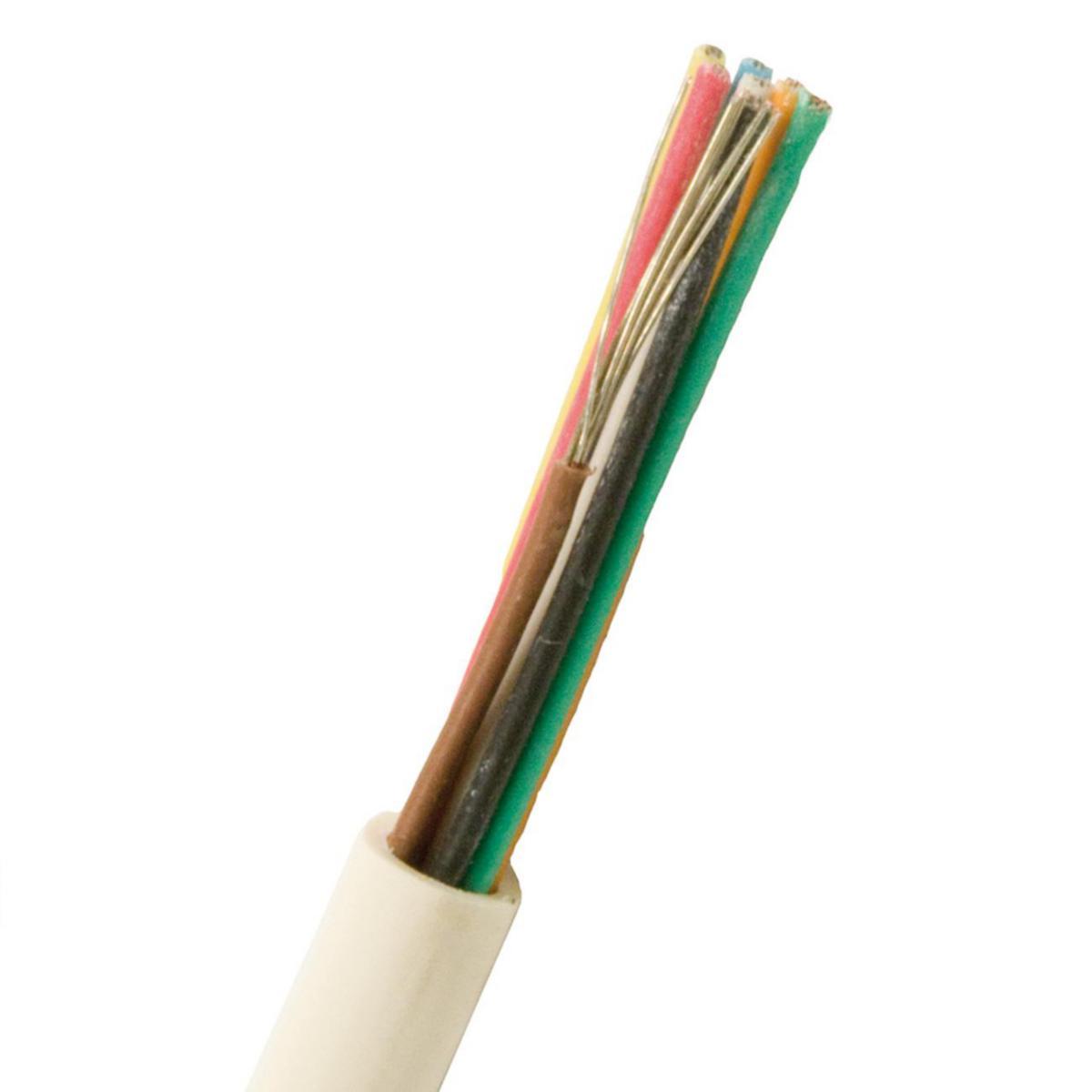

Alarm/signal cable halogen-free FQQXB white Dcas2d2a2, Nexans
FQQXB EASY 4X0.22 WHITE R100 17527140-802-02
Article number: Suppl. article no:
4890402
17527140-802-02
to see price and stock
Flexible signal and alarm cable with insulation and sheath of halogen-free, flame-retardant plastic compound. FQQXB is used for code locks, alarm installations etc. when requirements for vibration resistance. Meets fire requirements according to CPR class Dcas2d2a2. In the event of a fire, the cable emits no corrosive gases and has little smoke evolution.
- Article number: 4890402
- Suppl. article no: 17527140-802-02
- Ean no: 7330000154674
- Material class QR0650
Technical data
- Packagin Size: 100 M/9600 M
- Cable type: FQQXB
- Dimension conductor x diameter: 4x0,22 mm
- Diameter conductor: 0.22 mm
- Cable geometry: Round
- Outer diameter approximate: 3.7 mm
- Colour outer sheath: White
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Conductor material: Copper
- Specification material outer sheath: Other
- Core identification according to HD 308 S2: Yes
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Screen over stranding element: None
- Screen over stranding: None
- Conductor category: Class 2 = stranded
- Material outer sheath: Polyolefin
- Core identification: Colour
- Stranding element: No
- Material core insulation: Polyolefin
- Stranding: Layers
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Number of cores: 4
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Nominal cross section conductor: 0.22 mm²
- Conductor surface: Tinned
- Suitable for underground installation: No
- Min. permitted bending radius, stationary application/permanent installation: 30 mm
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- UV resistant: No
- Certified for shipboard application: No
- Suitable as computer data cable: No
- Suitable as signalling cable: Yes
- Suitable as telephone cable: No
- Weight: 20 kg/km
- REACH Date: 2021-06-14
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
- Insulation integrity according to IEC 60331: No
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
