Nexans

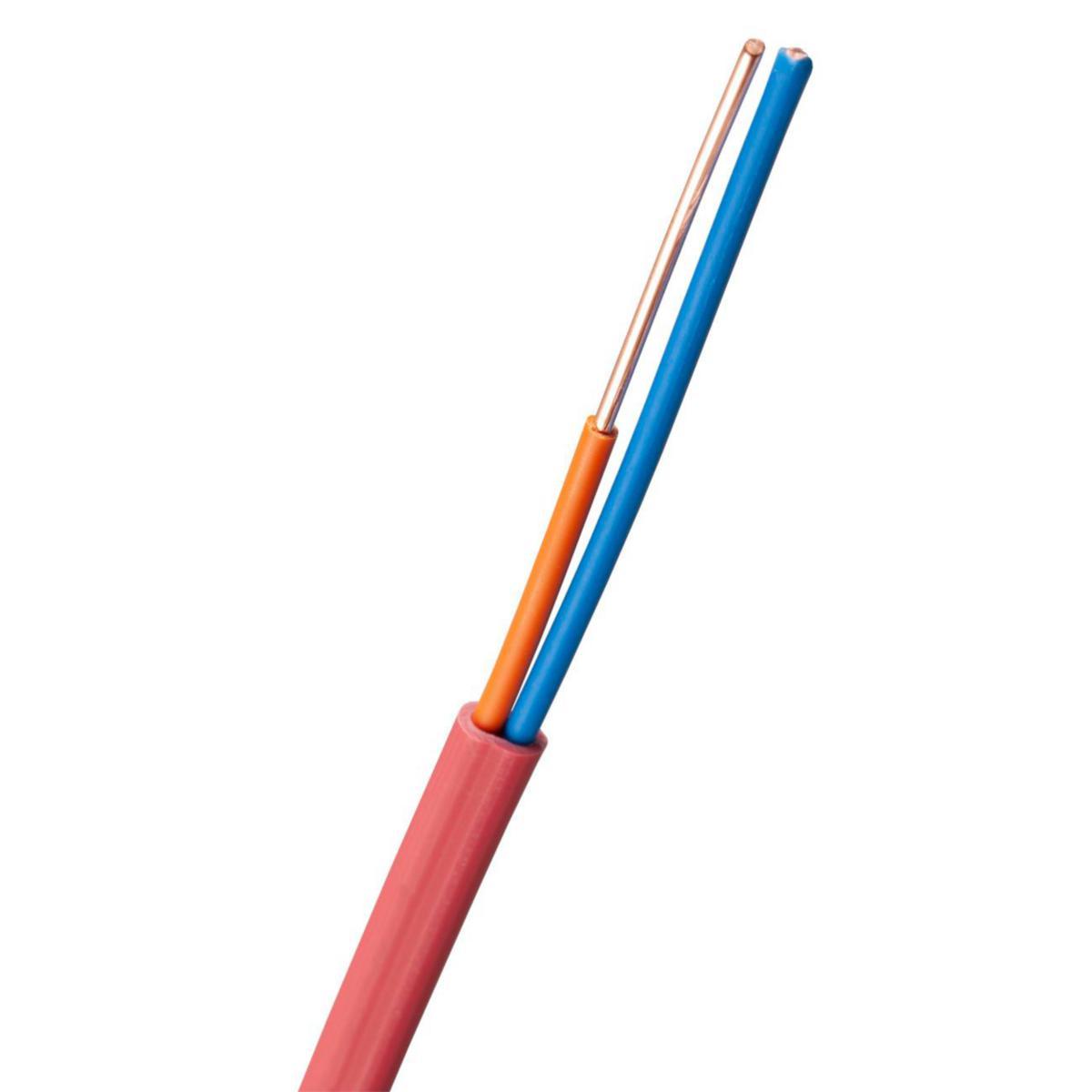

Alarm/signal cable halogen-free EQQRB Easy red Dcas2d2a2, Nexans
EQQRB EASY 2X1,0 RED (*5) 18440271-803-00
Article number: Suppl. article no:
4836890
18440271-803-00
to see price and stock
HFFR-insulated signal cable with halogen-free, fl shielded sheath. Conductor of single-wire copper. It is an HFFR-insulated signal cable with a halogen-free, fl-shielded sheath. EQQRB is used as a signal cable in various control and regulation technical systems, including fire alarm systems. The cable is designed according to SS 424 16 09. Placed indoors according to SS 424 14 38 and outdoors, also on a carrying line and protected against mechanical damage in the ground according to SS 424 14 37. Meets fire requirements according to CPR class Dcas2d2a2. In the event of a fire, the cable emits no corrosive gases and has little smoke evolution.
- Article number: 4836890
- Suppl. article no: 18440271-803-00
- Ean no: 7330000113459
- Material class QR0600
Technical data
- Cable type: EQQRB
- Dimension conductor x diameter: 2x1,0 mm
- Diameter conductor: 1 mm
- Cable geometry: Flat
- Outer diameter approximate: 4.9 mm
- Colour outer sheath: Red
- Halogen free according to EN IEC 60754-2: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Conductor material: Copper
- Specification material outer sheath: Other
- Core identification according to HD 308 S2: Yes
- Longitudinal water blocking cable: No
- Radial water blocking cable: No
- Screen over stranding element: None
- Screen over stranding: None
- Conductor category: Class 1 = solid
- Material outer sheath: Polyolefin
- Core identification: Colour
- Stranding element: No
- Material core insulation: Polyolefin
- Stranding: Layers
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Number of cores: 2
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Conductor surface: Bare
- Suitable for underground installation: Yes
- Min. permitted bending radius, stationary application/permanent installation: 40 mm
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Specification core insulation: Other
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- UV resistant: No
- Certified for shipboard application: No
- Suitable as computer data cable: No
- Suitable as signalling cable: Yes
- Suitable as telephone cable: No
- Approved type of underground installation: Underground installation tube
- Weight: 27 kg/km
- REACH Date: 2021-06-14
- GWP-tot (A1-A3): 0,0771 kgCO2e/M
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
- Insulation integrity according to IEC 60331: No
- Oil resistant (according to IEC 60811-404): No
- Low smoke (according to EN 61034-2): Yes
