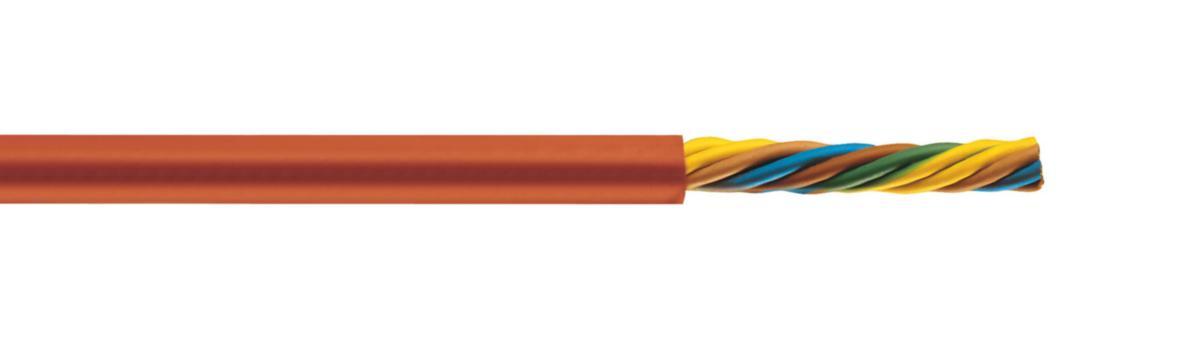

Connection cable heat-resistant SIHF, Rutab
SIHF 2X1 CABLE
Article number:
0542430
to see price and stock
Flexible, heat-resistant cable. Flexible cable with fine-wired line construction and in combination with the silicone rubber sheath provides a very elastic cable with a small bend radius. The cable is used where special requirements for heat- and cold-resistance are imposed on the insulation. Manufacturing standard in accordance with VDE 0250,0293. Approval: SEMKO, VDE and SEV, operating voltage 300/500 V; fine-stranded tinned copper, multi-stranded multi-wire cable. Outer silicone sheath; temperature range from -60° to + 180° C, short-term +250° C.; bend radius diam. x6. Breakdown voltage: (at -20° C): >3 kV; test voltage: 2000 V. With green-yellow protective wire.
- Article number: 0542430
- Material class QA970B
Technical data
- Cable type: SIHF
- Nominal cross section conductor: 1.5 mm²
- Dimension conductor x area: 2x1,5 mm²
- Outer diameter approx.: 8.2 mm
- Colour outer sheath: Other
- Nominal voltage U: 500 V
- Nominal voltage U0: 300 V
- Conductor category: Class 5 = flexible
- Permitted cable outer temperature during assembling/handling: -60-180 °C
- Permitted cable outer temperature after assembling without vibration: -60-180 °C
- Weight/100 m: 9 kg
- Number of cores: 2
- Material outer sheath: Rubber
- Core identification: Colour
- Stranding element: No
- Material core insulation: Rubber
- REACH Date: 2021-11-24
- REACH Information obligation: No
- Low smoke (according to EN 61034-2): No
- Shape: Round
- Flame retardant: According to IEC/EN 60332-1-2
