Rutab

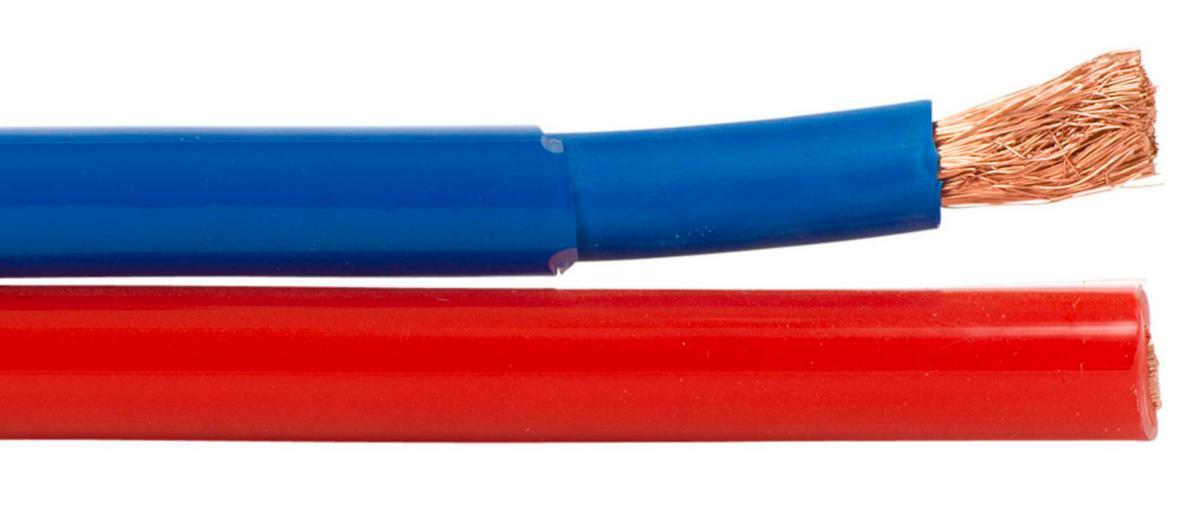

Connection and battery cable PVC Bitflex 300/500V, Rutab
BITFLEX RED/BLUE 2X10 (*0)
Article number: Suppl. article no:
0506530
0506530
to see price and stock
Double isolated twin cable, extra flexible. For indoor and outdoor use in both dry and wet locations on motor vehicles or battery-driven equipment such as forklift trucks and conveyor systems (conveyor belts).
Jacket: PVC
Flame protection: IEC 332 and VW-1
Electrical data: Up to 500V
Temp. range: –25 +70°C
Jacket: PVC
Flame protection: IEC 332 and VW-1
Electrical data: Up to 500V
Temp. range: –25 +70°C
- Article number: 0506530
- Suppl. article no: 0506530
- Material class QA931B
Technical data
- Cable type: BITFLEX
- Nominal cross section conductor: 10 mm²
- Dimension conductor x area: 2x10 mm²
- Colour outer sheath: Colourless
- With protective conductor: No
- Nominal voltage U: 500 V
- Nominal voltage U0: 300 V
- Cable width approx.: 14.8 mm
- Conductor category: Class 6 = very flexible
- Cable height approx.: 7.2 mm
- Permitted cable outer temperature during assembling/handling: -25-70 °C
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Weight/100 m: 26 kg
- Number of cores: 2
- Material outer sheath: Polyvinyl chloride (PVC)
- Core identification: Colour
- Stranding element: No
- REACH Date: 2021-11-24
- REACH Information obligation: No
- Low smoke (according to EN 61034-2): No
- Flame retardant: According to IEC/EN 60332-1-2
