Connection and battery cable Halogen-free Bitflex 300/500V, Rutab
BITFLEX HF RED/BLUE 2X25
Article number: Suppl. article no:
0506450
0506450
to see price and stock

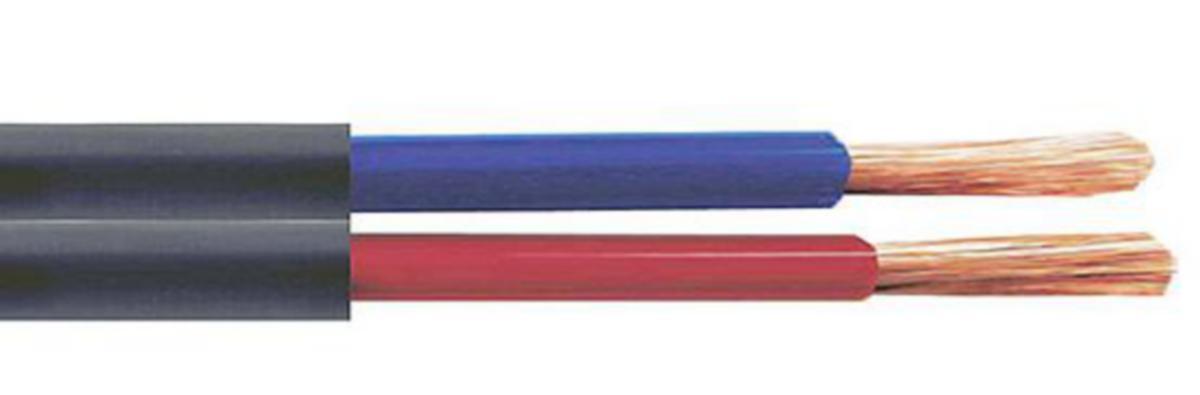

Extra flexible, halogen-free battery cable with double insulated sleeve. The cable can be used both indoors and outdoors as a connection cable for batteries.
- Article number: 0506450
- Suppl. article no: 0506450
- Material class QA931B
Technical data
- Cable type: BITFLEX
- Nominal cross section conductor: 25 mm²
- Dimension conductor x area: 2x25 mm²
- Colour outer sheath: Black
- With protective conductor: No
- Nominal voltage U: 500 V
- Nominal voltage U0: 300 V
- Cable width approx.: 24 mm
- Conductor category: Class 6 = very flexible
- Cable height approx.: 11 mm
- Permitted cable outer temperature during assembling/handling: -30-80 °C
- Permitted cable outer temperature after assembling without vibration: -30-80 °C
- Weight/100 m: 63.0 kg
- Number of cores: 2
- Material outer sheath: Other
- Core identification: Colour
- Stranding element: No
- Material core insulation: Other
- REACH Date: 2021-11-24
- REACH Information obligation: No
- Low smoke (according to EN 61034-2): No
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
