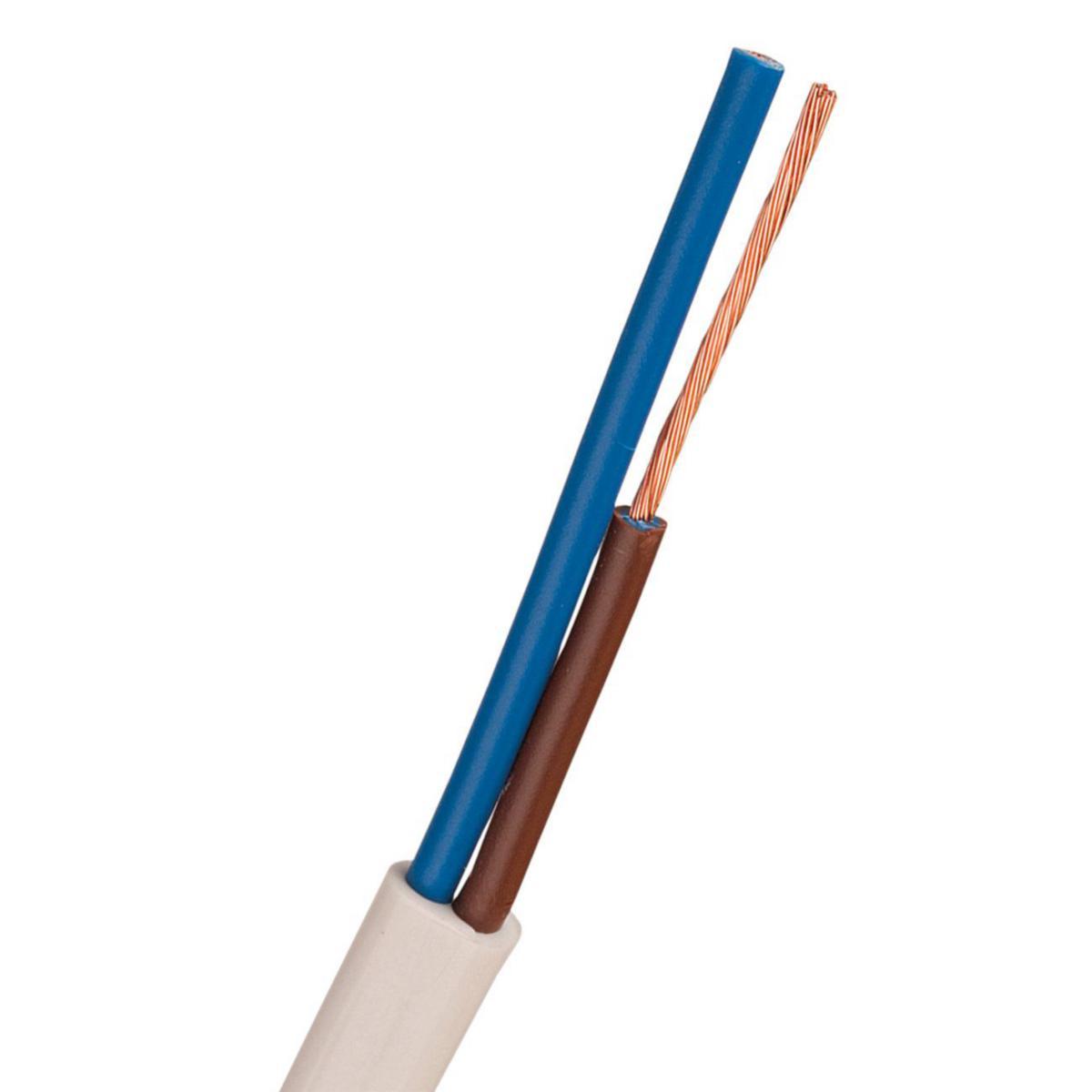

Connection cable PVC RKX 90 300 / 500V Eca (Cable guy), Nexans
RKX 90 2X1.5 WHITE X125 22707084-270-61
Article number: Suppl. article no:
0505253
22707084-270-61
to see price and stock
Oval connection cable with insulation and sheath of lead-free PVC for a maximum of 90 ° C conductor temperature. At connection points in the luminaire, ex. spotlights, temperature up to a maximum of 105 ° C is allowed according to SS-EN 60598-1.
- Article number: 0505253
- Suppl. article no: 22707084-270-61
- Ean no: 7330000119208
- Material class QA9350
Technical data
- Packagin Size: 125 M/4000 M
- Cable type: RKX
- Dimension conductor x area: 2x1.5 mm²
- Number of cores: 2
- Nominal cross section conductor: 1.5 mm²
- Colour outer sheath: White
- Nominal voltage U: 500 V
- Nominal voltage U0: 300 V
- Armouring/reinforcement: None
- Screen: No
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Class: Eca
- Permitted cable outer temperature after assembling without vibration: -40-90 °C
- Permitted cable outer temperature during assembling/handling: 0-50 °C
- Conductor category: Class 5 = flexible
- Conductor material: Copper
- Material outer sheath: Polyvinyl chloride (PVC)
- Core identification: Colour
- Protective barrier: None
- Material core insulation: Polyvinyl chloride (PVC)
- Max. permitted conductor temperature: 90 °C
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Conductor surface: Bare
- Conductor resistance at 20 °C: 13.3 Ohm/km
- Weight: 63 kg/km
- Suitable as installation cable: Yes
- Cable geometry: Flat
- Core identification according to HD 308 S2: Yes
- Certified for shipboard application: No
- Shape of conductor: Round
- Certified as airport lighting cable: No
- With protective conductor: No
- REACH Date: 2021-06-14
- REACH Information obligation: No
- Flame retardant: According to IEC/EN 60332-1-2
- Insulation integrity: None
