Installation cable FQ Easy (S07Z1-R) 450/750 V Dca, Nexans

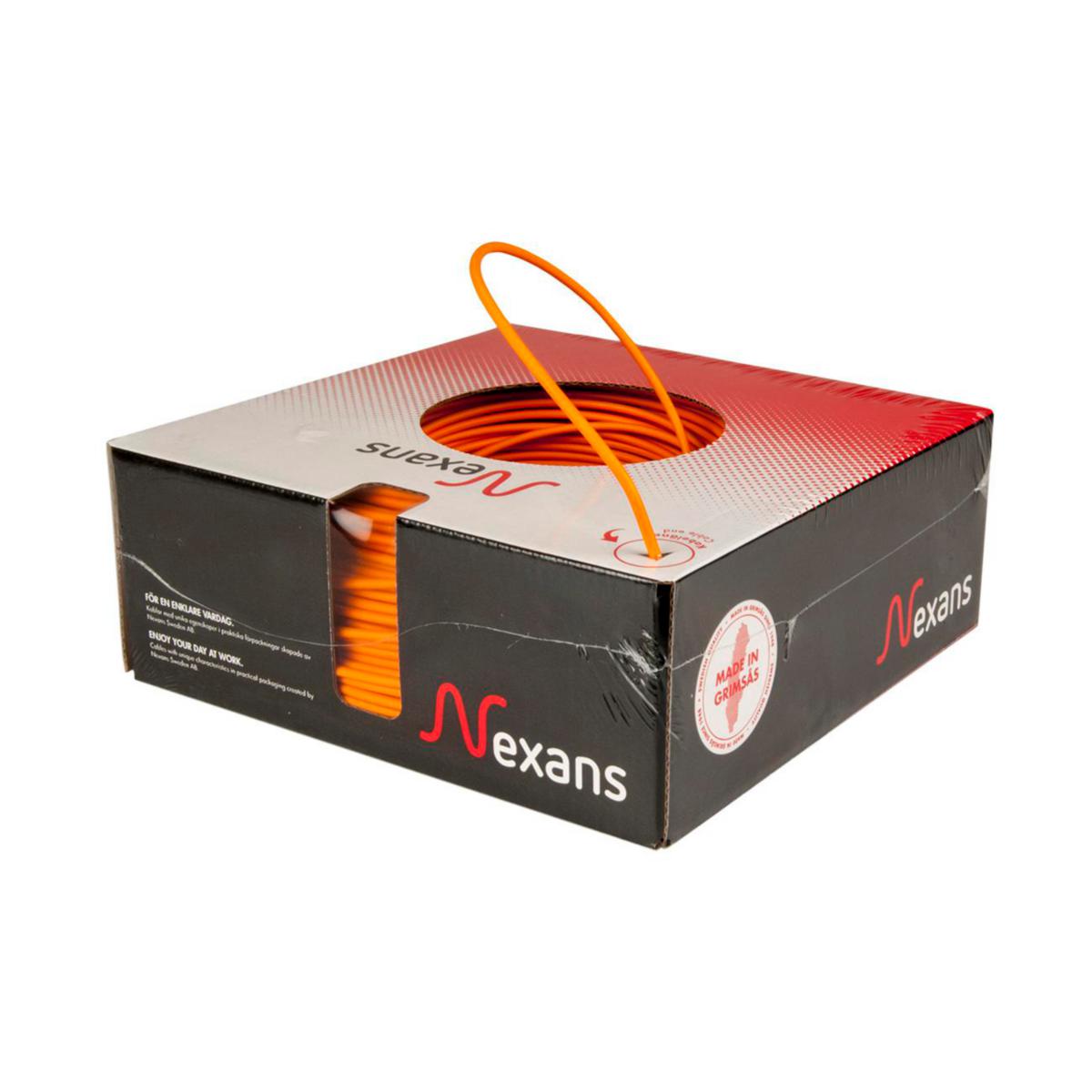

FQ EASY 1.5 450/750V ORANGE R100
Article number: Suppl. article no:
0437602
11485340-410-02
to see price and stock
The cable is made of extremely low friction material and is intended for installation in fixed pipe or duct systems and as a connection line in cabinets or luminaires.
H07Z1-R (FQ Easy ™) is a halogen-free, HFFR-insulated installation line of extremely low friction material with a round copper wire conductor. The cable is constructed according to SS 424 02 31 in applicable parts. The conductor has wire number and resistance according to IEC 60228 class 2. The insulation is marked "NEXANS GS SEMKO HALOGEN FREE". The cable meets fire spread class D. The conductor insulation must be protected against direct UV light that can occur, for example, in lighting fixtures and light signs. The cable is approved by SEMKO.
H07Z1-R (FQ Easy ™) is a halogen-free, HFFR-insulated installation line of extremely low friction material with a round copper wire conductor. The cable is constructed according to SS 424 02 31 in applicable parts. The conductor has wire number and resistance according to IEC 60228 class 2. The insulation is marked "NEXANS GS SEMKO HALOGEN FREE". The cable meets fire spread class D. The conductor insulation must be protected against direct UV light that can occur, for example, in lighting fixtures and light signs. The cable is approved by SEMKO.
- Article number: 0437602
- Suppl. article no: 11485340-410-02
- Replaces art.nbr: 0400802 0437002
- Material class QA5851
Technical data
- Packagin Size: 100 M/12000 M
- Cable type: FQ Easy
- Dimension conductor x area: 1x1,5 mm²
- Colour outer sheath: Orange
- Number of cores: 1
- Nominal cross section conductor: 1.5 mm²
- Outer diameter approx.: 3 mm
- Nominal voltage U0: 450 V
- Shape of conductor: Round
- Nominal voltage U: 750 V
- Permitted cable outer temperature during assembling/handling: -10-50 °C
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Core colour: Orange
- Weight: 21 kg/km
- Max. permitted conductor temperature: 70 °C
- Screen: No
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Protective barrier: None
- Armouring/reinforcement: None
- Conductor category: Class 2 = stranded
- Conductor material: Copper
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Polyolefin
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Cable geometry: Round
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Conductor resistance at 20 °C: 12.1 Ohm/km
- Conductor surface: Bare
- Suitable as installation cable: Yes
- Core identification according to HD 308 S2: Yes
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Twisted cores: No
- Halogen free according to EN IEC 60754-2: Yes
- REACH Date: 2021-06-14
- REACH Information obligation: No
