Installation cable halogen-free EXQ, a-collection
EXQ 3G1.5 R100 A-COLLECTION
Article number:
0436802
to see price and stock

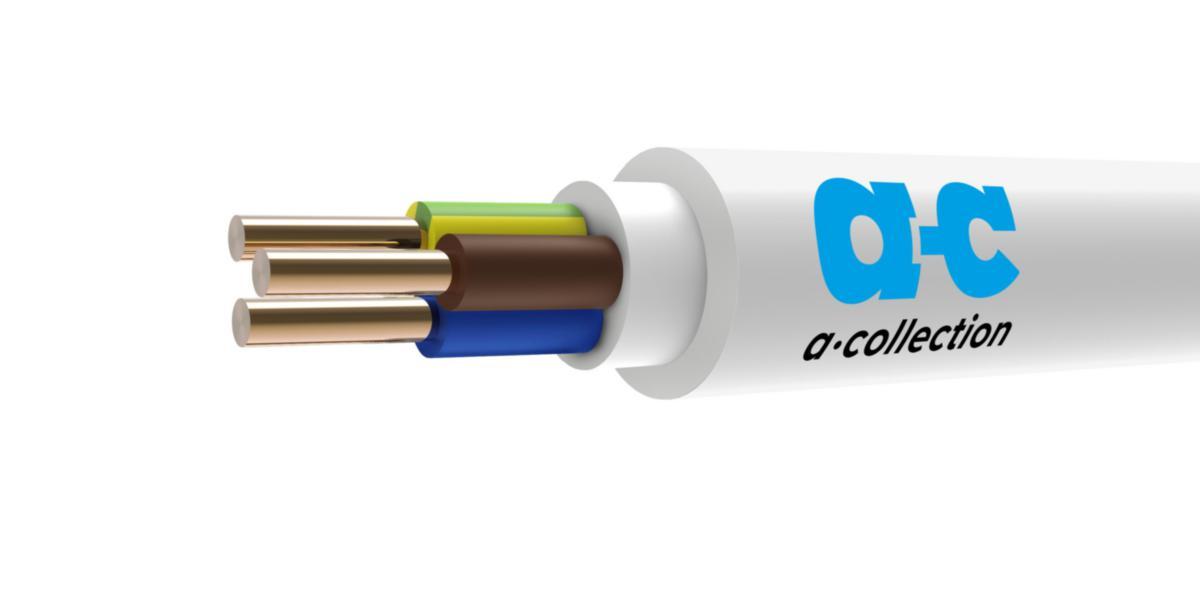

a-collection EXQ is a halogen-free, PEX-insulated, HFFR sheathed installation cable that is intended for permanent installation indoors and outdoors, but not in ground or water. UV-resistant jacket (conductor insulation must be protected from direct UV light). Solid conductors of round, annealed copper. White jacket and color-coded conductors: 3-conductor (brown, blue, yellow / green) 4-conductor (brown, black, blue, yellow / green), 5-conductor (brown, black, gray, blue, yellow / green). Fire spread class: Dca.
- Article number: 0436802
- Ean no: 7333123088383
- Material class QA7450
Technical data

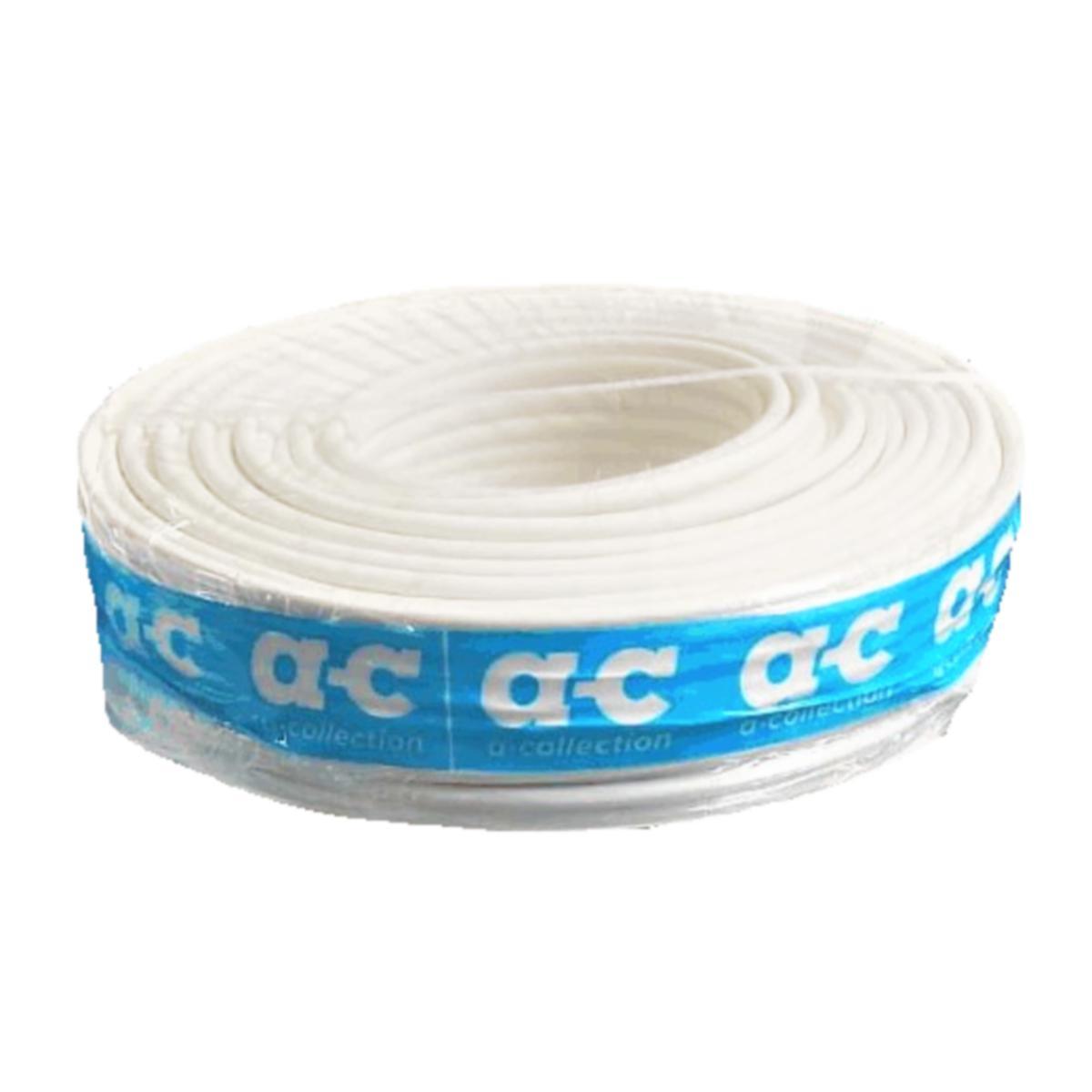

- Packagin Size: 100 M/6000 M
- Cable type: EXQ
- Dimension conductor x area: 3G1,5 mm²
- Colour outer sheath: White
- Number of cores: 3
- Nominal cross section conductor: 1.5 mm²
- With protective conductor: Yes
- Outer diameter approx.: 7.6 mm
- Nominal voltage U0: 300 V
- Nominal voltage U: 500 V
- Permitted cable outer temperature during assembling/handling: -10 - 70 °C
- Permitted cable outer temperature after assembling without vibration: -15-90 °C
- Core colour: Several
- Max. permitted conductor temperature: 90 °C
- Screen: No
- Drain wire: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Armouring/reinforcement: None
- Conductor category: Class 1 = solid
- Conductor material: Copper
- Material outer sheath: Polyolefin
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Material core insulation: Other
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Cable geometry: Round
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Conductor surface: Bare
- Oil resistant according to EN IEC 60811-404: No
- Specification core insulation: Polyethylene (PE)
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Halogen free according to EN 60754-1/2: Yes
- Flame retardant: According to IEC/EN 60332-1-2
