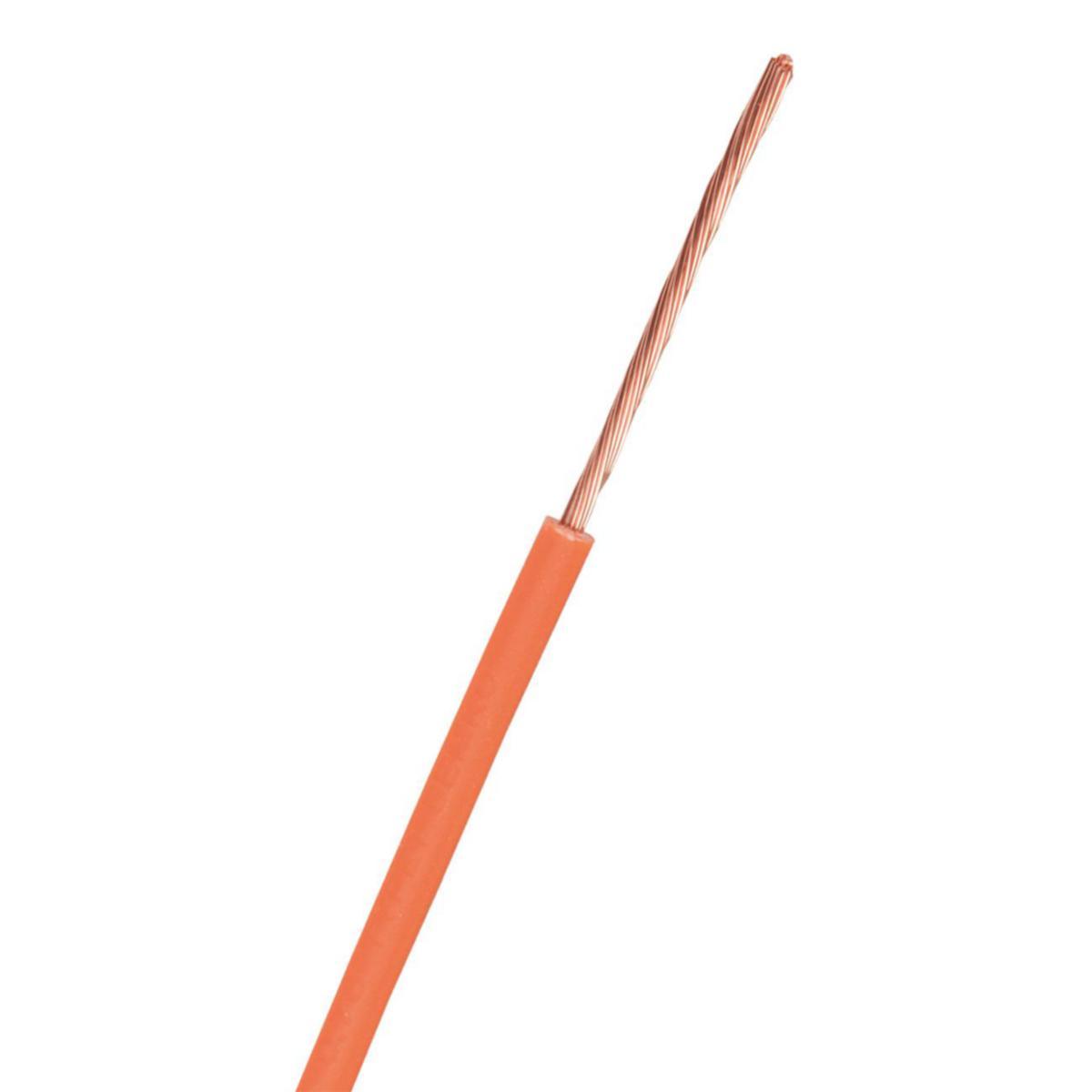

Connecting cable RK 90°C (H05V2-K) 300/500V 0.5-1.0mm² - RK 0.75 ORANG H05V2-K 90C R100
Nexans

Connecting cable RK 90°C (H05V2-K) 300/500V 0.5-1.0mm²

RK 0.75 ORANG H05V2-K 90C R100
Article number:
0384102
Suppl. article no:
11183140-010-02
‌
‌
‌
‌
‌
 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
The cable is primarily intended to be used for permanently protected installation of signal and control circuits in devices and with a maximum 90 °C conductor temperature H05V2-K is a lead-free, PVC-insulated, connection cable with a round stranded copper conductor. The cable is designed according to SS EN 50525-2-31. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS H05V2-K 0.75 SEMKO has max 90°C". The cable meets fire propagation class IEC 60332-1 (F2). The cable is approved by SEMKO.
  • Article number:
    0384102
  • Suppl. article no:
    11183140-010-02
  • Ean no:
    7330000117419
  • Material class
    QA4650
Technical data
  • Packagin Size: 12000 M
  • Cable type: RK 90
  • Dimension conductor x area: 1x0,75 mm²
  • Core colour: Orange
  • Outer diameter approximate: 2.25 mm
  • Screen: No
  • Reaction-to-fire according to EN 13501-6: Class: Eca
  • Permitted cable outer temperature during assembling/handling: 0-50 °C
  • Permitted cable outer temperature after assembling without vibration: 0-70 °C
  • Conductor category: Class 5 = flexible
  • Nominal voltage U0: 300 V
  • Nominal voltage U: 500 V
  • Material core insulation: Polyvinyl chloride (PVC)
  • Nominal cross section conductor: 0.75 mm²
  • Number of cores: 1
  • Armouring/reinforcement: None
  • Drain wire: No
  • Conductor material: Copper
  • Conductor surface: Bare
  • Max. permitted conductor temperature: 70 °C
  • Min. permitted bending radius, stationary application/permanent installation: 9 mm
  • Core identification: Colour
  • Protective barrier: None
  • Certified for shipboard application: No
  • Certified as airport lighting cable: No
  • Cable geometry: Round
  • Shape of conductor: Round
  • Conductor resistance at 20 °C: 26 Ohm/km
  • Suitable as installation cable: Yes
  • Core identification according to HD 308 S2: Yes
  • Weight: 11 kg/km
  • Halogen free according to EN IEC 60754-2: No
  • REACH Date: 2024-09-10
  • REACH Information obligation: No
