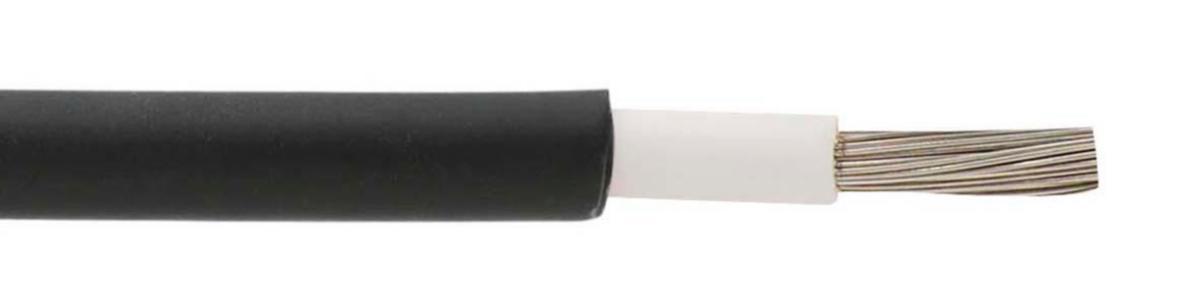

Connecting cable for solar panels PV1-F, Rutab
PV1-F 1X4 BLACK (*5)
Artikelnummer: Lev. artikelnr:
0377500
N9080610
för att se saldo och pris
Double-insulated, halogen-free, UV- and weather-resistant cable in durable design. The cable is specially designed for installation in solar panel installations and approved by TÜV with an expected lifespan of 25 years when laid directly in sunlight. The cable is approved for ground installation.
- Article number: 0377500
- Suppl. article no: N9080610
- Material class QA5500
Teknisk data
- Cable type: PV1-F
- Dimension conductor x area: 1x4 mm²
- Number of cores: 1
- Nominal cross section conductor: 4 mm²
- Colour outer sheath: Black
- With protective conductor: No
- Screen over stranding element: None
- Screen over stranding: None
- Outer diameter approx.: 5.4 mm
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Shape of conductor: Round
- Cable geometry: Round
- Conductor category: Class 5 = flexible
- Permitted cable outer temperature after assembling without vibration: -40-120 °C
- Permitted cable outer temperature during assembling/handling: -40-120 °C
- Material outer sheath: Other
- Material core insulation: Other
- Nominal voltage U: 1000 V
- Nominal voltage U0: 1000 V
- Oil resistant according to EN IEC 60811-404: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Min. permitted bending radius, moving application/free movement: 81 mm
- Min. permitted bending radius, stationary application/permanent installation: 27 mm
- Specification core insulation: Other
- Specification material outer sheath: Other
- Conductor material: Copper
- Conductor resistance at 20 °C: 5.09 Ohm/km
- Conductor surface: Bare
- Max. permitted conductor temperature: 125 °C
- Screen: No
- REACH Date: 2021-11-24
- REACH Information obligation: No
