Control and communication cable halogen-free Novolex-H-OB Siox - Novoflex H 3x1,5
Rutab

Control and communication cable halogen-free Novolex-H-OB Siox

Novoflex H 3x1,5
Article number:
0254720
Suppl. article no:
0254720





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.

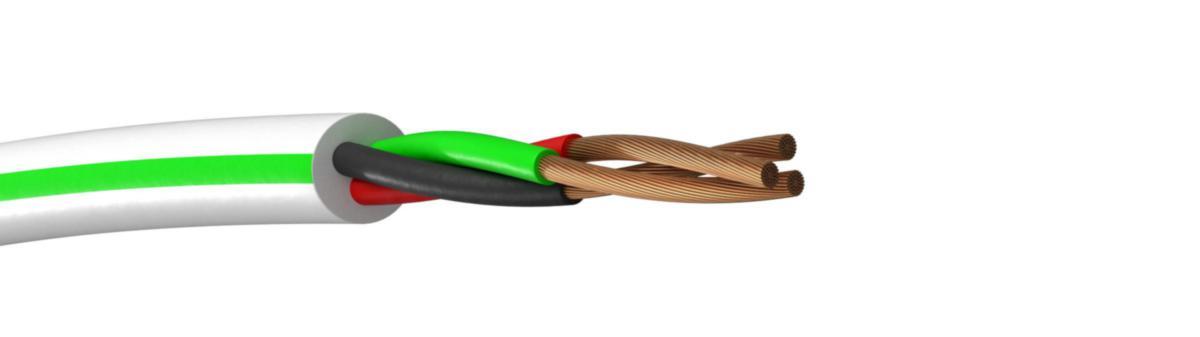

Halogen-free flexible control and communication cable adapted for SIOX. The fine-wire construction provides a cable with a small bending radius. The specially designed conductor marking facilitates connection. Can be used in dry and wet areas. The cable is particularly suitable for installations where high safety is required. The cable is flame retardant, flame retardant and self-extinguishing. In the event of a fire, it does not spread flames, emits no corrosive gases and produces little smoke. The cable is CPR classified, Cca.
  • Article number:
    0254720
  • Suppl. article no:
    0254720
  • Replaces art.nbr:
    0254700
  • Material class
    QR1010
Technical data
  • Packagin Size: 1 M/500 M
  • Cable type: NOVOFLEX-H-OB
  • Dimension conductor x area: 3x1,5 mm²
  • Nominal cross section conductor: 1.5 mm²
  • Number of cores: 3
  • Colour outer sheath: Multi-coloured
  • Outer diameter approximate: 7.3 mm
  • Weight: 90 kg/km
  • With protective conductor: No
  • Conductor category: Class 5 = flexible
  • Material outer sheath: Other
  • Permitted cable outer temperature during assembling/handling: 0-70 °C
  • Core identification: Colour
  • Nominal voltage U: 750 V
  • Material core insulation: Other
  • Shape of conductor: Round
  • Conductor material: Copper
  • Conductor surface: Bare
  • Cable geometry: Round
  • Min. permitted bending radius, moving application/free movement: 73 mm
  • Min. permitted bending radius, stationary application/permanent installation: 43.8 mm
  • Nominal voltage U0: 450 V
  • Specification core insulation: Other
  • Specification material outer sheath: Other
  • Reaction-to-fire according to EN 13501-6: Acidity: a1
  • Reaction-to-fire according to EN 13501-6: Class: Cca
  • Oil resistant according to EN IEC 60811-404: No
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
  • Reaction-to-fire according to EN 13501-6: Smoke production: s1b
  • Max. permitted conductor temperature: 70 °C
  • Flame retardant according to IEC 60332-1-2: Yes
  • Halogen free according to EN IEC 60754-1: Yes
  • Halogen free according to EN IEC 60754-2: Yes
  • REACH Date: 2024-10-14
  • REACH Information obligation: No
